3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork
3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork
3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork
3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork
3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork
3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork
Specifications
Brand Name :
HUIHAO
Model Number :
INSULATION PINS NAIL
Certification :
ISO9001-2015
Place of Origin :
CHINA
MOQ :
2000 pcs
Payment Terms :
L/C, T/T
Supply Ability :
150000sets per 10 days
Delivery Time :
15 days after confirm the order
Packaging Details :
1.500pcs/1000pcs/5000pcs per carton 2. on pallet
Product name :
insulation pins nai
Material :
stainless steel 304,316,316L
Surface treatment :
polished
Base size :
50mmx50mm in common
Pin dia :
2.7mm,3.0mm
Pin length :
25mm-320mm
Sample :
support
Service :
DDP service
Description

3.0mm Dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork

Quick detaild of stainless steel self adhesive insulation pins nail :

Product name :self adhesive insulation ,insulation pin nails ,self adhesive insulation pins

Material :stainless steel 304,316,316L .mild steel to be request

Surface treatment :Polished

Base size :50mmx50mm in common ,other to be request

Pin diameter: 12ga (2.7mm), 3mm in common

Pin length: from 38mm to 230mm, others can be customization.

Installation parts: including round self locking washer, square self locking washer and dome cap washers

rock wool metal stick pins are easily install any type of insulation up to 3.5" thick to air ducts, metal buildings,

concrete foundations - even to the underside of wooden roofs. Insulation Hangers are perfect for installing

fiberglass or rubber insulation blankets or polystyrene board. Insulation Hangers have a sticker backing to

make placing easier. They also have a unique Easy-Peel adhesive backing design so that there isn't any

fumbling with the release paper.

Drawing of stainless steel self adhesive insulation hanger nails :

3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork

Self adhesive insulation hanger nails

Material :stainless steel 304/316/316L

Surface treatment :polished

Base size:2"x2" 50mmx50mm

Pin dia (D part): 2.7mm,3.0mm

Pin length (L part): 25mm-320mm

Accessories :self locking washer ,dome cap washer

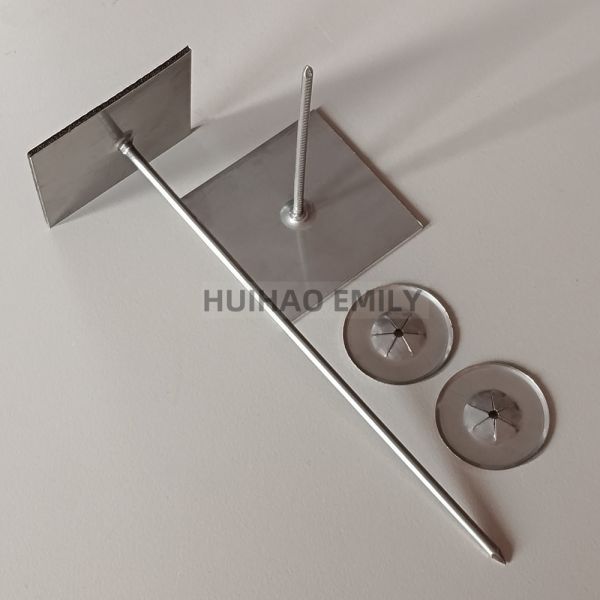

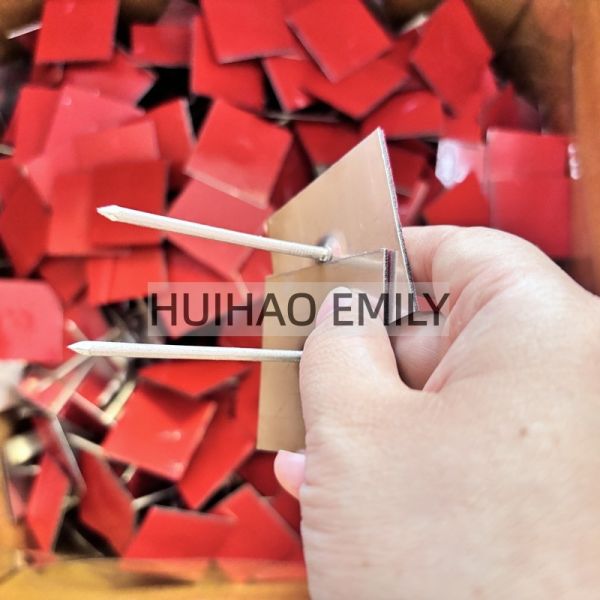

Pic of stainless steel self adhesive insulation pins nails

3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork

3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork

Fixing part of self adhesive insulation pins nails

1.ROUND TYPE SELF LOCKING WASHERS

2.SQUARE TYPE SELF LOCKING WASHERS

3.METAL DOME CAP WASHERS

4.SPEED CLIPS WITH PLASTIC COVER
3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork

Package of self adhesive insulation pins nail:

3.0mm dia Stainless Steel Self Adhesive Insulation Pins Nail For Ductwork

Package of self adhesive insulation hanger pin nails

>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO COMPANY :

we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,

Our products is as following :

1.CD weld pins

2.Lacing Anchors

3.Bimetallic pin

4.Cup head weld pins

5.Quilting pins

6.perforated base pins

7.self adhesive pins

8.metal washers

9.all kinds of self locking washers, Dome caps.
