Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2 For HVAC System
Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2 For HVAC System
Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2 For HVAC System
Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2 For HVAC System
Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2 For HVAC System
Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2 For HVAC System
Specifications
Brand Name :
HUIHAO
Model Number :
Self Adhesive Insulation Pins Aluminium
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs per week
Delivery Time :
12 days after the first payment
Packaging Details :
500 pcs per carton ,48 cartons on one pallet
Product name :
Self Adhesive Insulation Pins Aluminium
Material :
galvanized steel , stainless steel , aluminium
Pin dia :
2.7mm as standard
Pin length :
19mm - 400mm ,could be customized
Base size :
50mmx50mm as standard
Accessories :
various of self locking washers are available
Customization :
available
Samples :
available
Description

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2" For HVAC System

Product Description Of Self Adhesive Insulation Pins Aluminium:

Self-adhesive pins are designed for fixing insulation materials to smooth surfaces, such as air ducts, attenuators, chambers and enclosures etc. without using any additional tools. It could be used to fix rigid or flexible insulation materials such as glass wool, rock wool, polyethylene foam, insulation cork boards, etc.

Huihao Hardware Mesh Product Limited is a professional manufacture of insulation pins and washers, we choose high quality raw materials, have automatic production line and strict quality control system, to make sure the quality of our insulation pins and washers. For the insulation pins and washers, the material, the size, the type, the package etc. all is customizable according to your special need.

If you are in need of insulaiton pins or washers, please feel free to ask me a price or sample, and my email is cherry@huihaomesh.com

HUIHAO Self Adhesive Insulation Pins Aluminum
Pin diameter Base size Pin length Clips Size
12 Ga (2.7mm or 0.106'') 50mmx50mm 1'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 3 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 4'' 30mm, 32mm, 38mm, 50mm, 65mm etc.

12 Ga (2.7mm or 0.106'')

 50mmx50mm 5 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 8'' 30mm, 32mm, 38mm, 50mm, 65mm etc.

For self adhesive insulation pins, the base size, the pin dia, the pin length, the self locking washer size, all is customizable.

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2

Advantages Of Self Adhesive Insulation Pins Aluminium:

1. Environmentally-friendly

2. Light, dust free, fire retardant and easy to install

3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding

4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning

5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning

Application Of Self Adhesive Insulation Pins Aluminium:

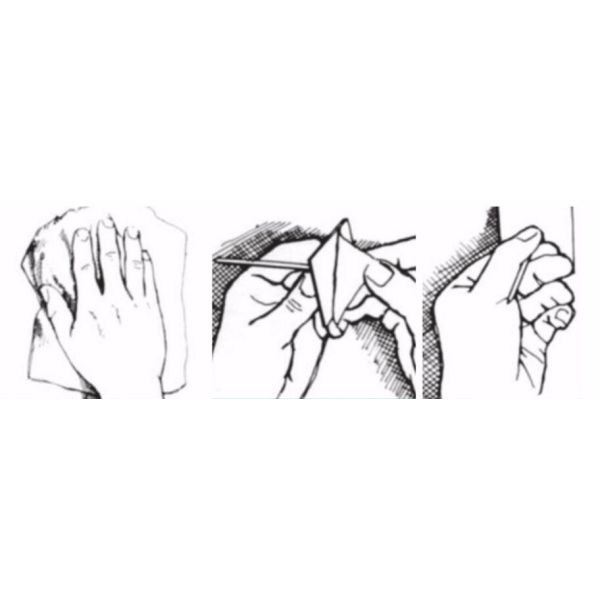

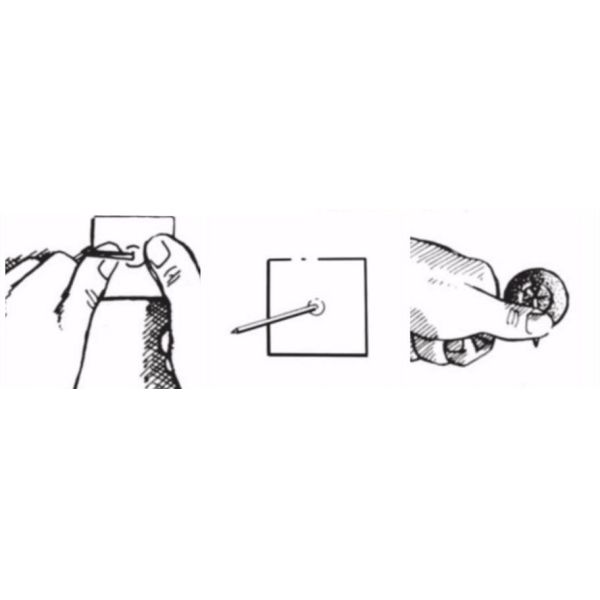

* Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
* Remove the protective release paper taking care not to touch the adhesive.
* Place the nail in the required position and press the base against the surface to be insulated
* Insulation can be impaled immediately and firmly locked with self locking washers, but maximum strength of adherence is achieved after 24 hours.
* If necessary, cover the nail with a protective cap.
Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2

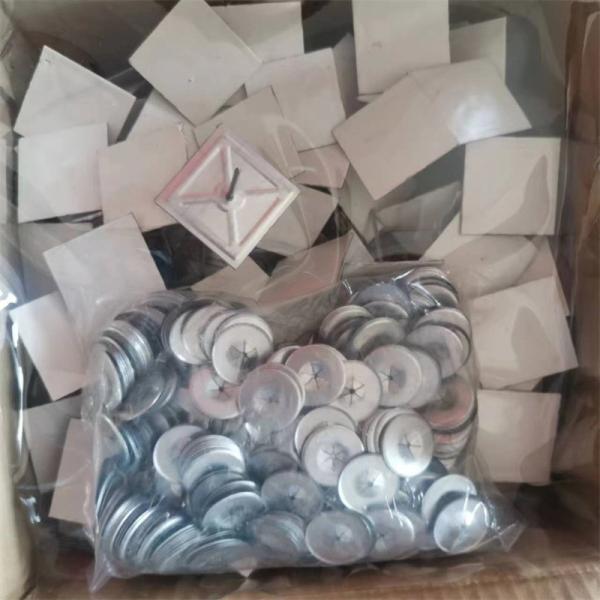

Packaging Of Self Adhesive Insulation Pins Aluminium:

The default packaging way is bulk packing or small boxes packing in cartons then on pallets.

We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2

HUIHAO HARDWARE MESH PRODUCT LIMITED

1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos

Rockwool Fixing Self Adhesive Insulation Pins Aluminium 2-1/2
