2-1/2 Length Self Adhesive Stick Pins For Wall Insulation Board
2-1/2 Length Self Adhesive Stick Pins For Wall Insulation Board
2-1/2 Length Self Adhesive Stick Pins For Wall Insulation Board
2-1/2 Length Self Adhesive Stick Pins For Wall Insulation Board
2-1/2 Length Self Adhesive Stick Pins For Wall Insulation Board
2-1/2 Length Self Adhesive Stick Pins For Wall Insulation Board
Specifications
Brand Name :
huihao
Model Number :
self stick pins
Certification :
ISO9001-2008
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
6000000pcs per year
Delivery Time :
7 days
Packaging Details :
500pieces per carton, carton size 31x28x29cm, 40 cartons per pallet. or 1000pieces per carton, carton size: 40x40x70cm, 10 cartons per wooden box.
Name :
Self Adhesive Stick Pins
Material :
stainless steel, mild steel, aluminum
Plate size :
40*40mm,50*50mm or as request
Plate thickness :
0.4mm
Spindle diameter :
2.7mm as standard
Spindle length :
19mm-400mm as standard
Accessories :
self locking washer or dome caps
Application :
ceiling or wall insulation
Customization :
support
Samples :
available
Description

2-1/2" Length Self Adhesive Stick Pins For Wall Insulation Board

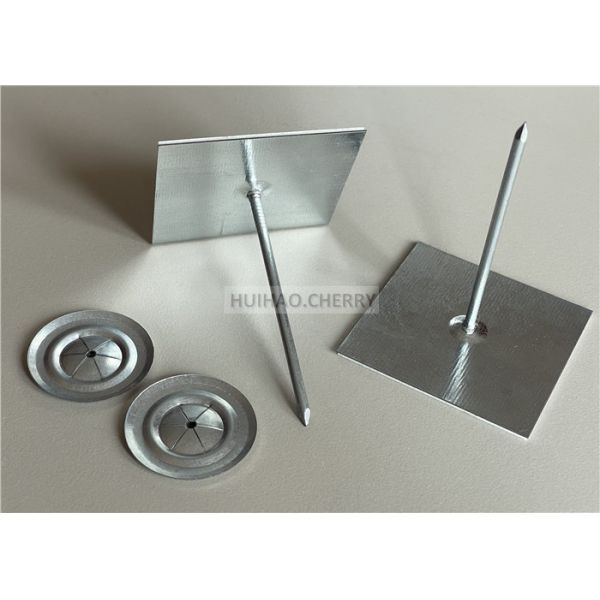

Self Adhesive Stick Pins Description:

Self Adhesive Atick Pins also named peel and press insulation hanger, it is made of mild steel nail or aluminum nails with galvanized steel square washer base.

If the nail is made of steel wire, it must be annealed, then mechanically galvanized, one is convenient for customers, and the other is to increase or decrease product life, waterproof and rustproof.

If the nail made of aluminum material, the grade must be 1100, on the one hand, it is easy to bend and each segment, and second, it has sufficient hardness to withstand the weight of the insulation material.

If specifical application, can choose stainless steel 304/316 material.

Huihao Hardware Mesh Product Limited is a professional manufacture for Self Adhesive Atick Pins, our Self Adhesive Atick Pins are with good quality and price, if you are in need of Self Adhesive Atick Pins, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

2-1/2

2-1/22-1/2

Specification Of Self Adhesive Stick Pins:

Self adhesive stick pins base plate size is 30mm, 40mm, 50mm or to be customer's requirements.

For the pin diameter is 2.7mm and 3mm. of couse, we can be your request to adjust the pin diameters.

For the stick pin length: from 15mm to 318mm.

We offer part specification as follows, as reference:

pin diameter base plate size self stick pin length
12ga ( 2.7mm ) 50mm square w / tape 1 "
12ga ( 2.7mm ) 50mm square w / tape 1 - 5 / 8 "
12ga ( 2.7mm ) 50mm square w / tape 2 "
12ga ( 2.7mm ) 50mm square w / tape 2 - 1 / 2"
12ga ( 2.7mm ) 50mm square w / tape 3 - 1 / 2"
12ga ( 2.7mm ) 50mm square w / tape 4 - 1 / 2"
12ga ( 2.7mm ) 50mm square w / tape 5 - 1 / 2"
12ga ( 2.7mm ) 50mm square w / tape 6 - 1 / 2"
12ga ( 2.7mm ) 50mm square w / tape 8 "
2-1/2

Application Of Self Adhesive Stick Pins:

Self adhesive stick pins is used for fixing wall insulation layers, becase of spindles with a corrosion resistant coating and it is made of galvanized steel with a pre-applied, pressure-sensitive adhesive protected by a release paper. Stick directly to the wall, then pins into the insulation layer , self locking washer fixing the insulation layer, then bend the pins. i square meters need 25 pieces self stick pins.

2-1/22-1/2

Package Details Of Self Adhesive Stick Pins:

PIN LENGTH

CARTON SIZE

QTY/CARTON

38MM

41CMX28CMX17CM

1000PCS

50MM-65MM

41CMX28CMX17CM

500PCS

70MM-84MM

30CMX28CMX29CM

500PCS

90MM-120MM

30CMX30CMX30CM

500PCS

130MM-160MM

30CMX30CMX35CM

500PCS

170MM-203MM

30CMX30CMX28CM

250PCS

OTHERS

SUPPORT CUSTOM
2-1/22-1/2

FAQ of Huihao Hardware Mesh Product Limited:

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?

Yes, the material, the surface finish, the size, all could be customized.

3. Do you support package customization?

Yes, the package could be customized according to your need.

4. Can I get samples?

Yes, samples for quality confirm are supported.

5. Can you accept small orders?

Yes, for common size, we could accept small orders.
