Specifications
Brand Name :
HUIHAO
Model Number :
Self Stick Insulation Anchors (Hangers)
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100,000 pcs per week
Delivery Time :
12 days after the first payment
Packaging Details :
500 pcs per carton ,48 cartons on one pallet
Product name :
Self Stick Insulation Anchors (Hangers)
Material :
galvanized steel , stainless steel , aluminum
Pin dia :
2.7mm as standard
Pin length :
19mm - 400mm ,could be customized
Base size :
50mmx50mm as standard
Accessories :
various of self locking washers are available
Customization :
available
Samples :
available
Description

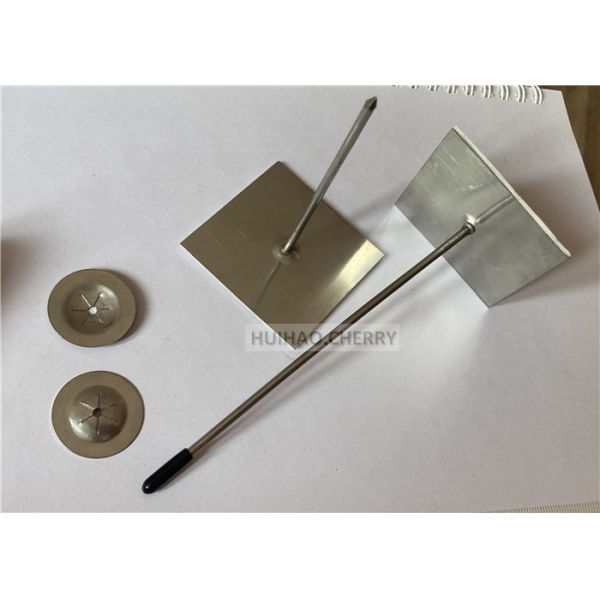

Manufacturer Of Self Stick Insulation Anchors (Hangers) For Glass Wool, Rock Wool Fastening On Metal Ducting

Product Description Of Self Stick Insulation Anchors (Hangers):

Self Stick Insulation Anchors (Hangers) are designed for mechanical fixing of insulation materials on smooth and clean surfaces, such as air ducts, attenuators, chambers and enclosures, without using any additional tools. It can be used for fastening rigid or flexible insulation materials such as glass wool, rock wool, polyethylene foam, insulation cork boards, etc.

Whether you’re working on HVAC duct insulation systems or other insulation tasks, these Self Stick Insulation Anchors (Hangers) could make the process faster, cleaner, and more convenient.

Self Stick Insulation Anchors (Hangers) made from HUIHAO are good quality and price, we choose high anti-corrosion galvanized steel or stainless steel or aluminum material and high sticky self-adhesive tape to make the Self Stick Insulation Anchors (Hangers), we also have fully automatic production line and strict quality control system to make sure the qood quality and quick delivery of Self Stick Insulation Anchors (Hangers).

If you are in need of Self Stick Insulation Anchors (Hangers), please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

HUIHAO Self Stick Insulation Anchors (Hangers)

Pin diameter Base size Pin length Clips Size
12 Ga (2.7mm or 0.106'') 50mmx50mm 1'' 30mm, 32mm, 40mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2'' 30mm, 32mm, 40mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2 1 / 2'' 30mm, 32mm, 40mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 3 1 / 2'' 30mm, 32mm, 40mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 4'' 30mm, 32mm, 40mm, 50mm, 65mm etc.

12 Ga (2.7mm or 0.106'')

50mmx50mm 5 1 / 2'' 30mm, 32mm, 40mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 8'' 30mm, 32mm, 40mm, 50mm, 65mm etc.

For self Stick Insulation Anchors (Hangers), the base size, the pin dia, the pin length, the self locking washer size, all is customizable.

Manufacturer Of Self Stick Insulation Anchors (Hangers) For Glass Wool, Rock Wool Fastening On Metal Ducting

Manufacturer Of Self Stick Insulation Anchors (Hangers) For Glass Wool, Rock Wool Fastening On Metal Ducting

Advantages Of Self Stick Insulation Anchors (Hangers):

1. Environmentally-friendly

2. Light, dust free, fire retardant and easy to install

3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding

4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning

5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning

Application Of Self Stick Insulation Anchors (Hangers):

  1. Simply peel off the backing tape.
  2. Stick the pin to the surface where the insulation will be placed.
  3. Put the insulation in place, and push the insulation onto the pin.
  4. Push the fixing disc over the pin.
  5. Important note: add the cap or bend the pin over on itself to avoid it impaling someone.
  6. Your insulation is now hanging without the fear of falling.
  7. The user is responsible for determining the suitability of the application. Hangers must be applied to a clean, dry, non-porous surface that is free of all oil, films, dust, rust, etc. Self-adhering hangers are not recommended for concrete or painted surfaces. It is important that they not be used where operating temperatures can exceed 150° F at the point of adhesion. Hangers should not be used on ceilings or roofs of metal buildings or any surface the reverse side of which may be exposed to heat concentration from sunlight, etc., direct or otherwise. Load per anchor should not exceed 3 lbs. Manufacturer Of Self Stick Insulation Anchors (Hangers) For Glass Wool, Rock Wool Fastening On Metal Ducting

Packaging Self Stick Insulation Anchors (Hangers):

The default packaging way is bulk packing or small boxes packing in cartons then on pallets. We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.

Manufacturer Of Self Stick Insulation Anchors (Hangers) For Glass Wool, Rock Wool Fastening On Metal DuctingManufacturer Of Self Stick Insulation Anchors (Hangers) For Glass Wool, Rock Wool Fastening On Metal Ducting

HUIHAO HARDWARE MESH PRODUCT LIMITED

1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos
