2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
Specifications
Material :
stainless steel ,aluminum ,galvanized
Base size :
25x25mm 30mmx30mm 40mmx40mm 45mmx45mm ,50mmx50mm
Pin diameter :
2.7mm 3mm
Pin length :
20mm-150mm
Washer tyle :
Round washer ,Square washer
Usage :
fixing rock wool layer
sample :
free
factory :
yes
Brand Name :
HUIHAO
Model Number :
Self sticking insulation hangers pin
Certification :
ISO 9001-2015
Place of Origin :
China
MOQ :
10,000 PCS
Price :
USD0.02-0.1
Payment Terms :
Western Union,T/T,L/C,Paypal
Supply Ability :
300,000 pcs per 20 days
Delivery Time :
7 days
Packaging Details :
Insulation fixing pins 1. length less than 65mm,1000 pcs per carton ,64 per carton per pallet .2. length less than 120mm ,500 pcs per carton ,64 carton per pallet .3. others to be your requirement
Description
2.7mm Galvanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
Product Attributes
Attribute Value
Material stainless steel, aluminum, galvanized
Base size 25x25mm 30mmx30mm 40mmx40mm 45mmx45mm, 50mmx50mm
Pin diameter 2.7mm 3mm
Pin length 20mm-150mm
Washer type Round washer, Square washer
Usage fixing rock wool layer
Sample free
Factory yes
Product Description

2.7mm Galvanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer

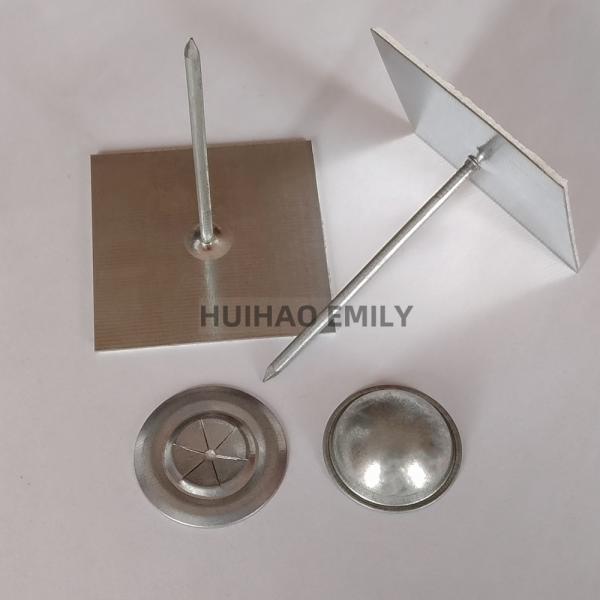

Quick Detail of Self Adhesive Insulation Stick Pins:
  • Self sticking insulation hangers pin: self-stick non perforated base pins
  • Fixing parts including: self locking washer, dome caps washers
  • Material: mild steel, stainless steel, aluminum
  • Rock wool insulation Pins length in common: 38mm-250mm (1-1/2"-10")
  • Surface treatment: zinc coated, copper plating
  • Rock wool insulation pins Features: Simple construction, high efficiency, save manpower
  • Easy weld to fasten the insulation; Sharp pins easily go through

Insulation pins are an essential method of fixing various types of insulation materials. These insulation fasteners are also called insulation nails, insulation cleats, and in some cases, especially with industrial insulation, these might be referred to as stud welding pins or simply studs. Pins for insulation come in various sizes, diameters and are manufactured from different materials. You can also buy self-adhesive insulation pins. It all depends on the specific application and temperature range of the insulating medium.

Specification Of Self Adhesive Insulation Stick Pins
pin diameter tape base pin length
12 ga (.106)/ 3mm 50mm Square 1
12 ga (.106)/ 3mm 50mm Square 1-5/8
12 ga (.106)/ 3mm 50mm Square 2-1/2"
12 ga (.106)/ 3mm 50mm Square 3-1/2"
12 ga (.106)/ 3mm 50mm Square 4-1/2"
12 ga (.106)/ 3mm 50mm Square 5-1/2"
12 ga (.106)/ 3mm 50mm Square 6-1/2"
12 ga (.106)/ 3mm 50mm Square 8"
12 ga (.106)/ 3mm 50mm Square 8-1/2"
12 ga (.106)/ 3mm 50mm Square 9-1/2"
12 ga (.106)/ 3mm 50mm Square 10-1/2"
12 ga (.106)/ 3mm 50mm Square 12"

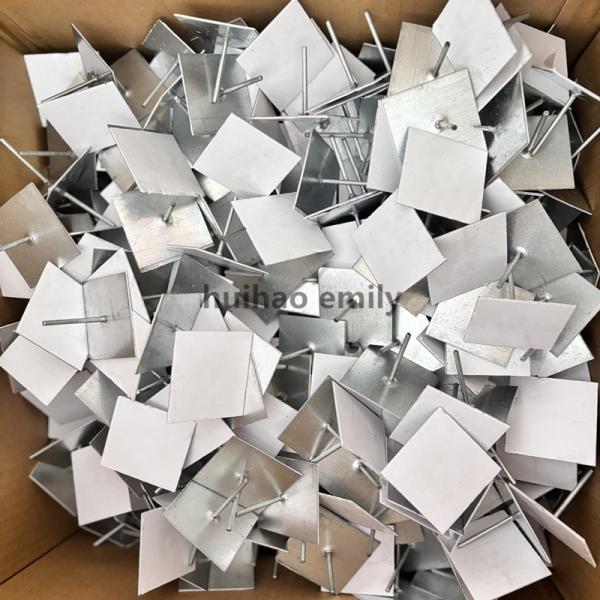

Product Image
2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
Recommended Assembly Method
  1. Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
  2. Remove the protective release paper taking care not to touch the adhesive
  3. Place the hanger in the required position and the base against the surface to be insulated
  4. Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours

Insulation Fixing Pins is with high penetration strength with all types of thermal insulation boards, suitable for brick and concrete walls.

2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
Advantages
  • Removable and Reusable
  • Simple and Quick Installation
  • Long Lasting and Durable
  • No Tools Required
  • Weatherproof, Chemical Resistant, UV Resistant
  • No Equipment Downtime
  • Blocks the Flame Path and Retards Heat Flow
Packaging Information

Package:
1. 500 pcs/1000pcs per carton. 64 cartons per pallet.
2. Customizable to your requirements.

Delivery:
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA, or by AIR if in an emergency.

2.7mm Glavanized Steel Self Adhesive Insulation Stick Pins Fixing Rock Wool Layer
