12 Gauge Insulation Pin Bonding Fasteners With Perforated Base
12 Gauge Insulation Pin Bonding Fasteners With Perforated Base
12 Gauge Insulation Pin Bonding Fasteners With Perforated Base
12 Gauge Insulation Pin Bonding Fasteners With Perforated Base
Specifications
Brand Name :
HUIHAO
Model Number :
Insulation Pin Bonding Fasteners
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 pcs
Payment Terms :
L/C, T/T,
Supply Ability :
10000 pcs oer hour
Delivery Time :
10 work days
Packaging Details :
500pcs per carton, 48 cartons per pallet, or as your requirement
Name :
Insulation Pin Bonding Fasteners With Perforated Base
Brand :
Huihao Custom
Base Material :
Galvanized steel or stainless steel
Base Size :
40x40mm, 50x50mm etc.
Pin Material :
galvanized steel or stainless steel or aluminum
Base Thickness :
0.4mm, etc.
Product Customization :
Support
Pin Diameter :
2.7mm, 3.0mm, 3.4mm etc.
Samples :
Support
Pin Length :
1" - 12"
Description

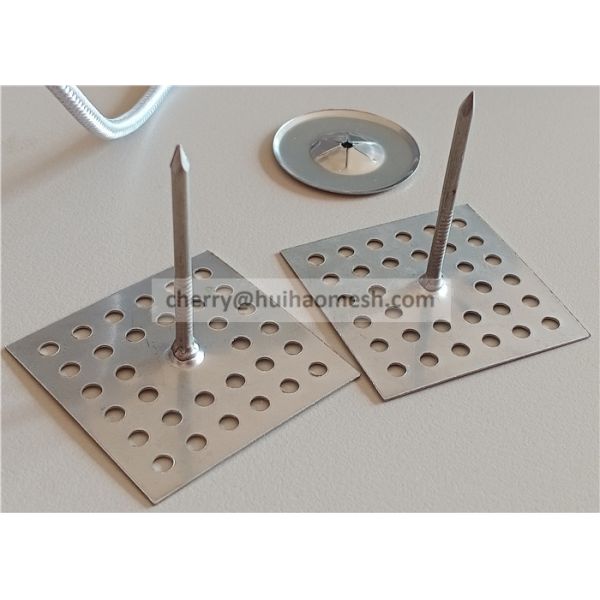

12 Gauge Insulation Pin Bonding Fasteners With Perforated Base

Quick details of the 12 gauge insulation pin bonding fasteners with perforated base

The insulation pin bonding fasteners are widely used to attach insulation to any glueable

materials with the right glue, this process dosen't need drilling and therefore create less

thermal bridges and cant damage the surfaces.

The base plate of the insulation pin bonding fasteners sizes from 19mm round up to 58mm.

You can also choose the nail length from 19mm to 230mm long.

It is always the standard 38mm round speed clips that holds the panel in place.

Name: 12 Gauge Insulation Pin Bonding Fasteners With Perforated Base

Factory: HUIHAO Hardware Mesh Product Limited

Base Material: galvanized steel or stainless steel

Base Size: 50x50mm, 40x40 as standard

Base Thickness: 0.4-0.5mm

Pin Diameter: 2.7m as standard

Pin Length: 1"-12" as standard

Self locking washers size: 25mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc.

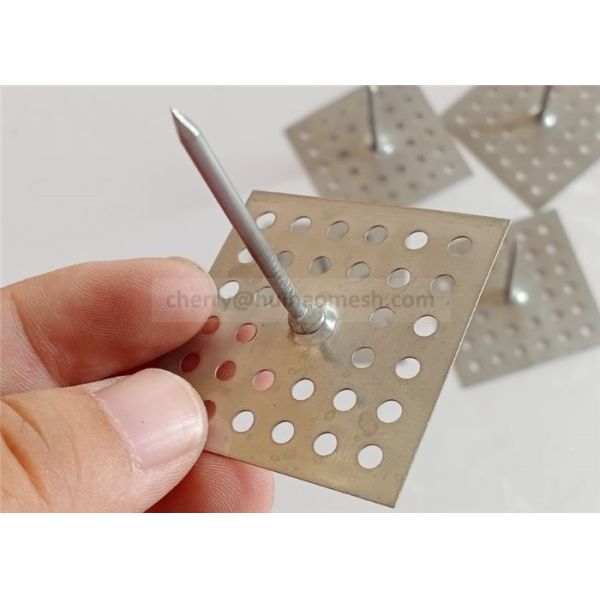

12 Gauge Insulation Pin Bonding Fasteners With Perforated Base

Specification details of the insulation pin bonding fasteners with perforated base

Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm

Surface treatment: zinc coated or copper coated for mild steel material

Material available

Pin material

-mild steel: must be annealed treatment,

easy for bend;

zinc coated/copper plated finished for anti-rust

-aluminum 1100 grade

-annealed stainless steel for specification

Base

Galvanized steel, stainless steel

Common Size Details

base type

pin diameter

pin length

material thickness

25 mm x 25 mm

1.8 mm , 2.0 mm

20 mm - 114mm

0.4-0.5 mm

40 mm x 40 mm

2.5 mm, 2.7mm

20 mm -180mm

0.4-0.5 mm

50 mm x50 mm

2.7 mm , 3.0mm, 3.4mm

50 mm - 280mm

0.4-0.5 mm

Applications of the insulation pin bonding fasteners

1. Wipe surface clean

2. Apply right glue to the bottom of the perforated insulation pins

3. Immediately press the perforated insulation pins in place.

4. Install Insulation

5. Secure with washers

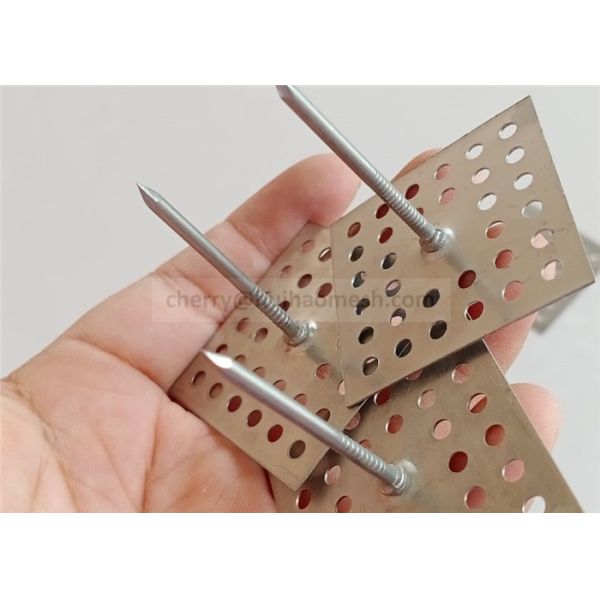

12 Gauge Insulation Pin Bonding Fasteners With Perforated Base

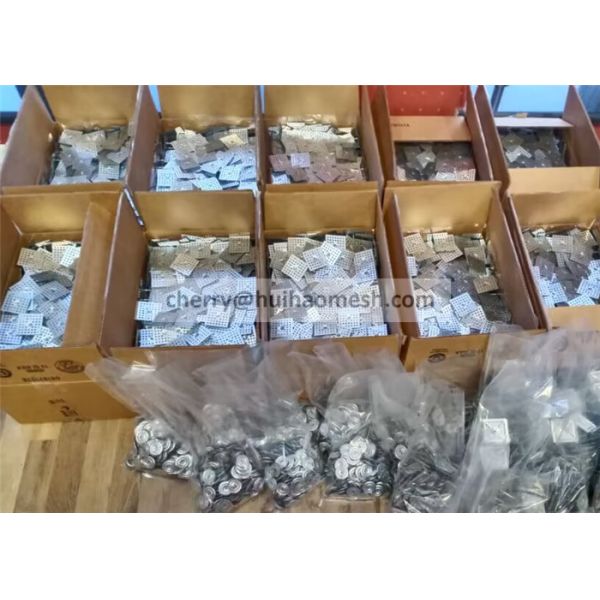

Package of the insulation pin bonding fasteners

PIN LENGTH

CARTON SIZE

QTY/CARTON

38MM

41CMX28CMX17CM

1000PCS

50MM-65MM

41CMX28CMX17CM

500PCS

70MM-84MM

30CMX28CMX29CM

500PCS

90MM-120MM

30CMX30CMX30CM

500PCS

130MM-160MM

30CMX30CMX35CM

500PCS

170MM-203MM

30CMX30CMX28CM

250PCS

OTHERS

SUPPORT CUSTOM

SUPPORT CUSTOM
12 Gauge Insulation Pin Bonding Fasteners With Perforated Base

Huihao Hardware Mesh Product Limited.

1. Are you manufacture or trader?

We are the manufacture and we sell what we make.

2. Do you support product customization?

Yes, the material, the size, all could be customizied according to your request.

3. Can you accept small order?

Yes, for common size, we could accept small orders.

4. Can i get samples?

Yes, for common size, samples for quality confirm is supported

5. What is your advantages?

Competitive price: we sale what we manufacture.

Excellent quality: we have rich experience, our products are in line with international standard.

Good after-sale service: we offer good after-sale service for each order.

Our products are consist in price, quality and delivery service.
