Self Stick Insulation Support Nail With Self Locking Washer
Self Stick Insulation Support Nail With Self Locking Washer
Self Stick Insulation Support Nail With Self Locking Washer
Self Stick Insulation Support Nail With Self Locking Washer
Self Stick Insulation Support Nail With Self Locking Washer
Self Stick Insulation Support Nail With Self Locking Washer
Specifications
Brand Name :
HUIHAO KASITE
Model Number :
SA-50
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 sets Self Stick Insulation Support Nail
Payment Terms :
L/C,T/T
Supply Ability :
500000 sets Self Stick Insulation Support Nail per 30 days
Delivery Time :
7 WORK DAYS
Packaging Details :
BAG + CARTON+PLATE for Self Stick Insulation Support Nail
Price :
USD0.1/SET
Name :
Insulation Support Nail
Type :
self adhesive pin
Base size :
2 inches square type
Nail length :
25 mm -280 mm
Nail dia :
2.7 mm , 3 mm
Finished :
copper coated, zinc coated
Install :
self locking clips
Factory :
Huihao hardware
Description

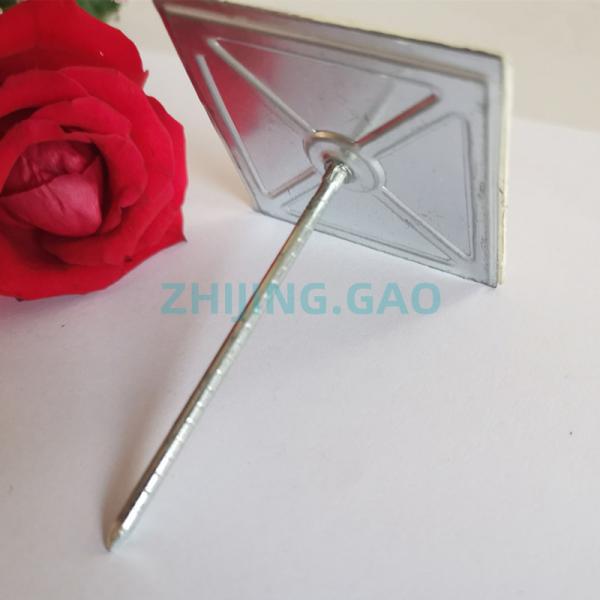

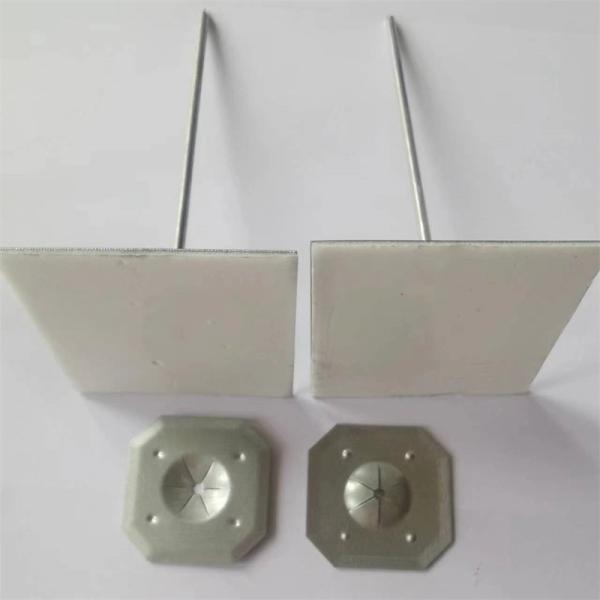

Self Stick Insulation Support Nail With Self Locking Washer
Product Specifications
Attribute Value
Name Insulation Support Nail
Type Self adhesive pin
Base size 2 inches square type
Nail length 25 mm - 280 mm
Nail diameter 2.7 mm, 3 mm
Finished Copper coated, zinc coated
Install Self locking clips
Factory Huihao hardware
Product Features
  • Pin diameter options: galvanized annealed steel wire and aluminum wire
  • Stainless steel soft wire available for custom orders
  • Maximum pin length: 300mm
  • Customizable base size, pin diameter, and length
  • Zinc coated surface treatment for mild steel material
  • Special materials available for customization
Installation Guide
  • Best results when ambient temperature is above 40°F at time of application
  • Remove release paper from base plate and apply to suitable flat surface
  • Use firm, straight forward pressure (do not twist)
  • Do not remove release paper until ready to apply hanger
  • Insulation may be applied immediately after securing hanger
  • Store at 75°F and 50% relative humidity with stock rotation
  • Shelf life: 2 years when stored as recommended
Performance Tape Specifications
  • Polyethylene foam with aggressive pressure sensitive rubber resin adhesive
  • Service temperature: -40°C to +70°C
  • Highly resistant to abrasion, corrosion, and moisture
  • Complies with European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
  • 10 minutes 180° peel adhesion: 30 N/25mm
  • 500 hour static shear (stainless steel): 0.8 kg/cm³
Standard Specifications
Nail diameter Base size Common nail lengths Fixed parts
12 Ga (2.7mm or 0.106") 2"×2" base (50mm×50mm) 1"
  • Self locking type washers
  • Speed clips
  • Dome cap washer
12 Ga (2.7mm or 0.106") 2"×2" base (50mm×50mm) 1 1/2"
12 Ga (2.7mm or 0.106") 2"×2" base (50mm×50mm) 1 5/8"
12 Ga (2.7mm or 0.106") 2"×2" base (50mm×50mm) 3 1/2"
12 Ga (2.7mm or 0.106") 2"×2" base (50mm×50mm) 4 1/2"
12 Ga (2.7mm or 0.106") 2"×2" base (50mm×50mm) 5 1/2"
12 Ga (2.7mm or 0.106") 2"×2" base (50mm×50mm) 6 1/2"
Why Choose Our HUIHAO Insulation Fasteners?
1. Premium quality materials for all insulation fasteners
2. Copper plating, zinc coating, and phosphating pretreatment
3. Multi-station cold forging for superior mechanical properties
4. Automatic riveting machine installation
5. Rust prevention suitable for long sea shipments
6. Short delivery times through efficient production management
Self Stick Insulation Support Nail With Self Locking Washer Self Stick Insulation Support Nail With Self Locking Washer
