Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Specifications
Name :
Self Adhesive Insulation Hangers
Brand :
Huihao Custom
Material :
Galvanized steel or stainless steel
Base Size :
50x50mm
Product Customization :
Support
Pin Diameter :
2.7mm as standard
Samples :
Support
Pin Length :
19mm-400mm as standard
Brand Name :
HUIHAO
Model Number :
Self Adhesive Insulation Hangers
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
10000 pcs
Payment Terms :
L/C,T/T,
Supply Ability :
10000 pcs oer hour
Delivery Time :
10 work days
Packaging Details :
500pcs per carton, 48 cartons per pallet, or as your requirement
Description
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment

Self Adhesive Insulation Hangers are designed to fix insulation materials on smooth surfaces such as air ducts, attenuators, chambers and enclosures. Self Adhesive Insulation Hangers consist of a pin, firmly riveted on a high quality self-adhesive base.

Self Adhesive Insulation Hangers made from HUIHAO are good quality and price, we choose high anti-corrosion galvanized steel or stainless steel or aluminum material and high sticky self-adhesive tape to make Self Adhesive Insulation Hangers, and we have fully automatic production line and strict quality control system to make sure the good quality of Self Adhesive Insulation Hangers. If you are in need of Self Adhesive Insulation Hangers for your HVAC duct insulaiton systems or other insulation tasks, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Attribute Value
Name Self Adhesive Insulation Hangers
Brand Huihao Custom
Material Galvanized steel or stainless steel
Base Size 50x50mm
Pin Diameter 2.7mm as standard
Pin Length 19mm-400mm as standard
Accessories Various of self locking washers are available
Product Customization Support
Samples free
Product Description

Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment

  • Material: Galvanized Steel Or Stainless Steel
  • Base Plate Shape: Square in common
  • Base Plate Size: 50*50mm in common or according to the customer's requirement
  • Base Plate Thickness: 0.4mm
  • Adhesive Thickness: 1.0mm
  • Pin Diameter: 2.7mm or 3mm or 3.4mm in common
  • Pin Length: 19mm to 400mm in common
  • Washer Diameter: 25mm, 30mm, 32mm, 38mm, 40mm, 50mm, 60mm, 63.5mm etc.
  • Washer Thickness: 0.4mm
Advantages
  • The pins are riveted on the base of the self adhesive insulation hangers, it's very strong.
  • The self adhesive tape on the base bottom of the self adhesive insulation hangers is very sticky.
  • The self locking washers are very hard, it could lock the self adhesive insulation hangers very firmly.
Technical Data
  • Polyethylene foam with aggressive pressure sensitive rubber resin adhesive
  • Service Temperature: -40°C to +70°C
  • Highly Resistant to abrasion, corrosion and moisture
  • Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
  • 10 Minutes 180 degree Peel Adhesion: 30 N/25mm
  • 500 Hour static shear (Stainless Steel): 0.8 kg/cm³

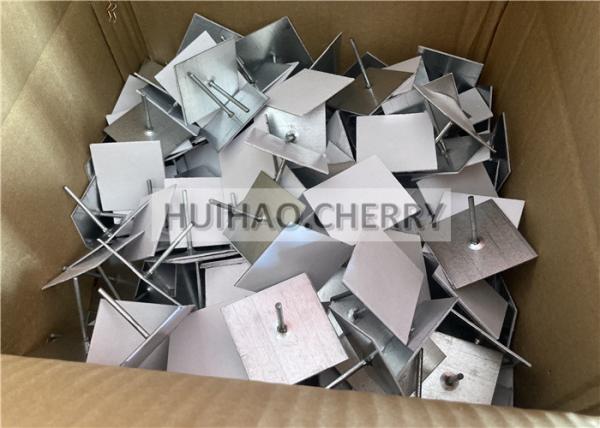

Product Images
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Application Instructions
  1. Install at ambient temperatures above 10°C (preferably between 15 and 25°C)
  2. Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
  3. Remove the protective release paper, taking care not to touch the adhesive
  4. Place the self adhesive insulation hangers in the required position and press the base against the surface to be insulated
  5. Insulation can be impaled immediately and firmly locked with fastening clips or washers, but maximum strength of adherence is achieved after 24 hours
  6. If necessary, cover the pin with a protective nylon cap
Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
Huihao Hardware Mesh Product Limited
  • We choose the best quality materials for making insulation fasteners
  • We do copper plating, zinc coated and phosphating pretreatment for the raw material
  • We purchase the multi-station cold forging machine to ensure better mechanical property
  • We use the automatic riveting machine for installation
  • After rust prevention, our insulation fasteners are suitable for long sea transport
  • Short delivery time due to our efficient production flow management

Galvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation AttachmentGalvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation AttachmentGalvanized Steel Self Adhesive Insulation Hangers 12 Gauge For Rockwool Insulation Attachment
