Shaker Gravel Mining Vibrating Screen For Silica Sand Washing
Shaker Gravel Mining Vibrating Screen For Silica Sand Washing
Shaker Gravel Mining Vibrating Screen For Silica Sand Washing
Shaker Gravel Mining Vibrating Screen For Silica Sand Washing
Shaker Gravel Mining Vibrating Screen For Silica Sand Washing
Shaker Gravel Mining Vibrating Screen For Silica Sand Washing
Specifications
Brand Name :
huihaokasite
Model Number :
Shaker Gravel Mining Vibrating Screen
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,paypal
Supply Ability :
1000pcs per 20 days
Delivery Time :
7 work days
Packaging Details :
1.Inside is plastic ,outside is hessian and tie by steel strips then packing by pallet 2.wooden box 3.Special packing can be made according to the customers request
Certification :
ISO9001-2015
Price :
USD28-USD58/PC
Product :
Shaker Gravel Mining Vibrating Screen
Wire diamtere :
0.8-12MM
Aperture :
5mm-130mm
Width :
1800MM
Length :
2180mm
Application :
For Quarry , Mining , Aggregate Industry
Description

Shaker Gravel Mining Vibrating Screen For Silica Sand Washing

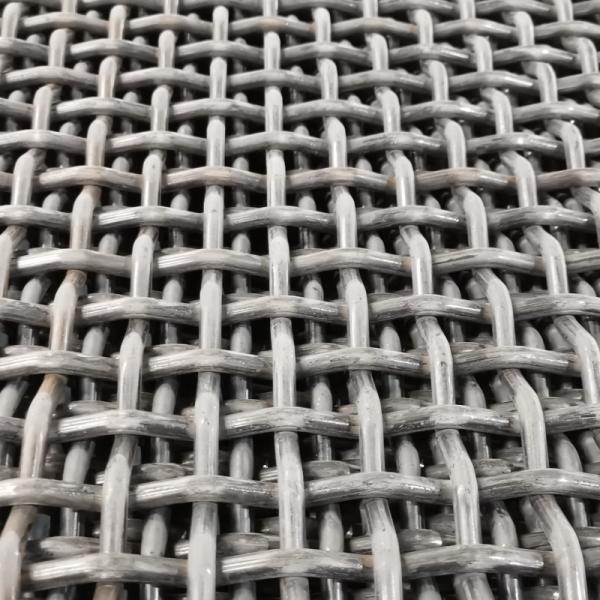

Self Cleaning Anti-clogging Screen is manufactured from manganese steel wire, galvanized wire or stainless steel wire. The wires are

woven into square, rectangular or long slot meshes.


Self Cleaning Anti-clogging Screen has various weaving types, such as plain weave, pre-crimped weave, flat top, intermediate crimped

and lock crimped. Various weaving types can fit different vibrating screens and materials.


Specification of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery


Aperture (mm) Nominal Wire Dia (mm) Approx. Free screening area% Aperture (mm) Nominal Wire Dia (mm) Approx. Free screening area% Aperture (mm) Nominal Wire Dia (mm) Approx. Free screening area%
2 1.25 38 16 4 64 40 5.6 77
2.5 1.25 44 　 5 58 　 6.3 75
3.15 1.25 51 　 5.6 55 　 8 69
4 1.6 44 20 5 64 　 10 64
1.25 58 　 5.6 61 45 5.6 79
1.6 51 　 6.3 58 　 6.3 77
5 1.6 57 22.4 5 66 　 8 72
2 51 　 6.3 60 　 10 67
2.5 45 25 5 69 50 6.3 79
6.3 2 58 　 6.3 64 　 12 65
2.5 51 　 8 57 56 6.3 81
3.15 45 28 5.6 69 　 8 77
8 2 64 　 6.3 67 　 10 72
2.5 58 　 8 61 　 12 68
3.15 52 31.5 5.6 72 63 6.3 83
10 2.5 64 　 6.3 70 　 8 79
3.15 58 　 8 64 　 10 74
4 51 　 10 58 　 12 71
12.5 3.15 64 36 5.6 75 80 8 83
4 57 　 6.3 72 　 10 79
5 51 　 8 67 　 12 76
14 3.15 67 　 10 61 100 8 86
4 61 　 　 　 　 10 83
5 54 　 　 　 　 12 80
Custom Size


installation of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery


Shaker Gravel Mining Vibrating Screen For Silica Sand Washing

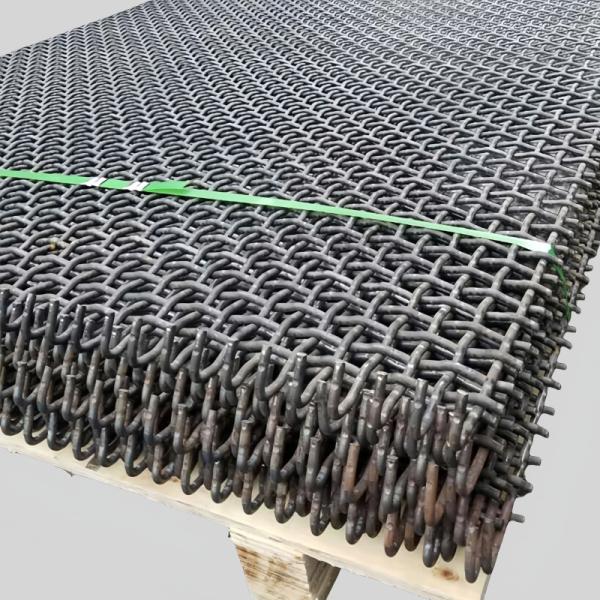

hook types of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery


Shaker Gravel Mining Vibrating Screen For Silica Sand Washing


Application of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery


The square wire mesh is widely used in the vibrating screens, crushers and trommel screens.
Industrial square wire mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.


Shaker Gravel Mining Vibrating Screen For Silica Sand Washing
