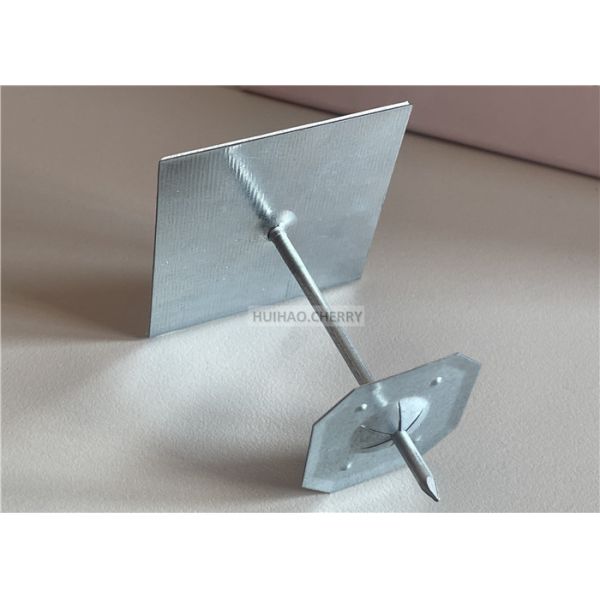

Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
Specifications
Brand Name :
huihao
Model Number :
Self Adhesive Insulation Pins
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C, T/T, Western Union,paypal
Supply Ability :
6000000pcs per year
Delivery Time :
7 days
Packaging Details :
500pieces per carton, carton size 31x28x29cm, 40 cartons per pallet. or 1000pieces per carton, carton size: 40x40x70cm, 10 cartons per wooden box.
name :
Self Adhesive Insulation Pins
material :
stainless steel, mild steel, aluminum
plate size :
50*50mm or as request
base thickness :
0.4mm
spindle diameter :
2.7mm as standard
spindle length :
19mm-400mm
accessories :
various of self locking washers
sample :
free
Description

Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet

Product Description of Self Adhesive Insulation Pins:

Self Adhesive Insulation Pins are widely used for the mechanical fixing of insulation materials on smooth surfaces, such as air ducts, attenuators, chambers and enclosures. These self adhesive insulation pins provide a quick and effective method for securing insulation to smooth surfaces without the need for welding or drilling. Whether you’re working on HVAC duct systems or other insulation tasks, these self adhesive insulation pins could make the process faster, cleaner, and more convenient.

Huihao Hardware Mesh Product Limited is a professional manufacture of Self Adhesive Insulation Pins, our Self Adhesive Insulation Pins are with good quality and price, if you are in need of Self Adhesive Insulation Pins, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com

Material: Pre-galvanized steel sheet, Q195 Pin: Q195 wire.

(low carbon steel-plate,also available by special order in all stainless steel or all aluminum)

Remakes of self adhesive insulation pins

Workmanship and capability according to the approved samples. Keep the verticality of the pin and base, no obvious skew.
No broken edge. No obvious dislocation of the adhensive.

Finishing and surface:Zinc coating thickness: 9μm min.

Details as per PSS.
Tolerance of the plate thickness: Lower deviation: -0.05mm.

Tolerance of the pin diameter: Lower deviation: -0.10mm.

Surface requirements of self adhesive insulation pins

No burr, No dirty mark. No stain.
Keep the pin point sharp, No deformation or curve shape.

No obvious dislocation of the adhensive. No obvious deformation of the base and washer.


Self Adhesive Insulation Pins specification

Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet

pin diameter

base plate size

insulatiion pin length

12ga ( 0.106 " )

2 " square w / tape

1 "

12ga ( 0.106 " )

2 " square w / tape

1 - 5 / 8 "

12ga ( 0.106 " )

2 " square w / tape

2 "

12ga ( 0.106 " )

2 " square w / tape

2 - 1 / 2"

12ga ( 0.106 " )

2 " square w / tape

3 - 1 / 2"

12ga ( 0.106 " )

2 " square w / tape

4 - 1 / 2"

12ga ( 0.106 " )

2 " square w / tape

5 - 1 / 2"

12ga ( 0.106 " )

2 " square w / tape

6 - 1 / 2"

12ga ( 0.106 " )

2 " square w / tape

8 "

12ga (0.106")

2" square w / tape

9"

12ga (0.106")

2" square w / tape

11"

12ga (0.106")

2" square w / tape

12"

Detailed Images Of Self Adhesive Insulation Pins:

Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation SheetGalvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet

Features Of Self Adhesive Insulation Pins:

  • Use raw materials that meet international standards

  • Rust-proof surface treatment, long service life

  • CNC technology, small error range

  • Smooth surface without burrs

  • Scientific dimensional design, in line with mechanical standards

  • Suitable for all kinds of wall

  • High pull-off strength for a higher security of the system

  • Low thermal conduction addition value to avoid thermal bridge

  • Galvanized layer on the steel nail to protect the nail from alkali

Technical Data Self Adhesive Insulation Pins:

Polyethylene foam with aggressive pressure sensitive rubber resin adhesive.

  • Service Temperature: -40°C to +70°C
  • Highly Resistant to abrasion, corrosion and moisture
  • Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
  • 10 Minutes 180 degree Peel Adhesion: 30 N/25mm
  • 500 Hour static shear (Stainless Steel): 0.8 kg/cm³

Installation Instructions Of Self Adhesive Insulation Pins:

  1. Install at ambient temperatures above 10°C (preferably between 15 and 25°C)
  2. Surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
  3. Remove the protective release paper, taking care not to touch the adhesive
  4. Place the self adhesive insulation pins in the required position and press the base against the surface to be insulated
  5. Insulation can be impaled immediately and firmly locked with fastening clips or washers, but maximum strength of adherence is achieved after 24 hours
  6. If necessary, cover the pin with a protective nylon cap

Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet

Galvanized Steel Self Adhesive Insulation Pins 220mm With Self Locking Washer For Insulation Sheet
