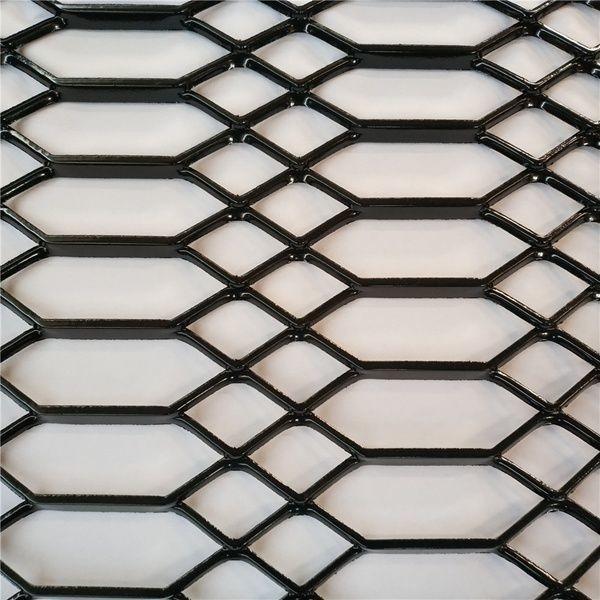

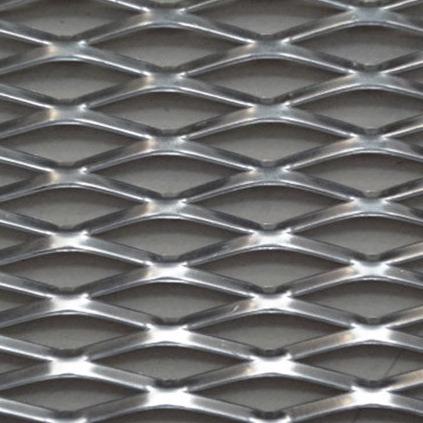

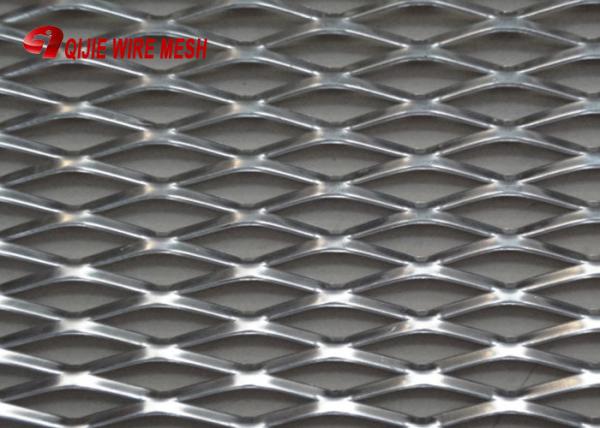

Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Model Number :
expanded metal mesh
Certification :
sgs
Hole :
Diamond,
Length :
Less THAN 3000MM
Lwm :
12.5-200mm
Material :
Stainless Steel,galvanized, steel
Processing :
Punch
Sheet Size :
1mx2m, 4'x8' or 4'x10' or customized
thickness :
20#-6#
Description

Factory Direct Sales Aluminum/Stainless Steel Plate Expanded Metal Mesh

Expanded Metal is also named Expanded Mesh or Expanded Metal Mesh. Expanded Metal is widely in industrial, building, household railway, highway, construction, grain, mechanical maintenance, and musical facilities. road, railway, civil building, water conservancys building; The protecting, electrical equipment, window and aquatic products breed.

1.Material:superior quality galvanzed,stainless,aluminium and brass sheet
2.Sheet thickness:0.1-10mm
3.Width:0.2-2.4m
4.Length:0.5-5m
5.Opening shapes:round,oval,hexagonal and diamond etc.
6. SWDxLWD: 2mmx4mm~100mmx200mm

Specification of Expanded Metal Mesh
Sheet Thickness Opening in Width
mm		 Opening in Length
mm		 Stem Roll Width
mm		 Roll Length
mm		 Weight
kg/m2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35

Production process

Expanded: The expanded process is using the automatic expanded machines to cut the metal sheet in the transverse direction and at the same time stretch in length without loss the material. And then pass through a cold rolled reducing mill. During the process the length of the sheet is prolonged about 5%, but the width of the sheet remains the same.

Application:
1.Aerospace: nacelles, fuel filters, air filters
2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors
3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption
4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills
5.Hammer mill: screens for sizing and separating
6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
7.Pollution control: filters, separators
8.Mining: screens
9.Security: screens, walls, doors, ceilings, guards
10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates.
