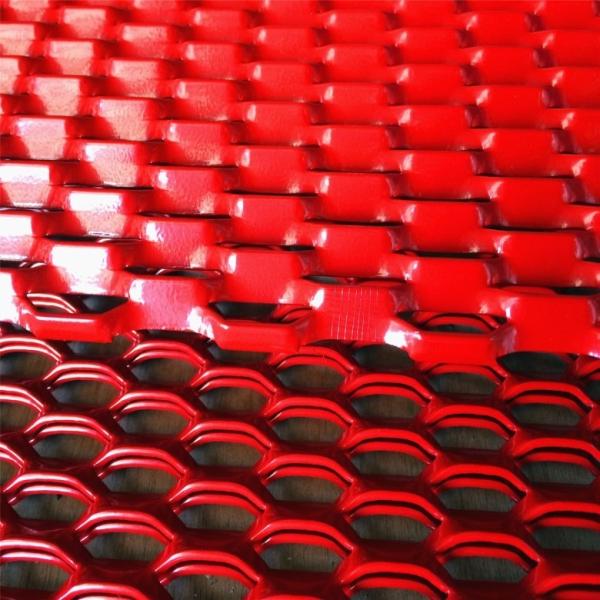

9 Gauge Aluminum Facade Expanded Wire Mesh Panels For Wall Coverings
9 Gauge Aluminum Facade Expanded Wire Mesh Panels For Wall Coverings
9 Gauge Aluminum Facade Expanded Wire Mesh Panels For Wall Coverings
9 Gauge Aluminum Facade Expanded Wire Mesh Panels For Wall Coverings
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Model Number :
expanded metal mesh
Certification :
SGS
Application :
Facade Mesh
Hole :
Diamond, round and hexgonal shape
Length :
Less THAN 3000MM
Lwm :
12.5-200mm
Material :
Aluminum
Open Area :
60%
Sheet Size :
1mx2m, 4'x8' or 4'x10' or customized
Sheet Thickness :
2.0-4.0mm
Technique :
Perforated,Welded Mesh,Woven
Description

Aluminum Mesh Expanded Metal Mesh Facade Mesh for Wall Coverings​

Steel stretched mesh is a metal sheet mesh with uniform holes that is formed by stretching and expanding a metal sheet through equipment. It is collectively called metal stretched mesh. Due to the different hole shapes, it is also called: diamond stretched mesh, hexagonal stretched mesh, Also known as: stainless steel stretched wire mesh, low carbon steel stretched wire mesh, aluminum plate stretched wire mesh, etc.

Material:Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on.
Thickness: 0.5mm-3mm
Mesh: 25 -500 knives
length: 0.5-30m
width: 0.5m-2m
Surface Treatment: painting, galvanizing, powder coating
Surface effect: shaping, rolling, wavy

Product Name High Quality Aluminum Expanded Metal Mesh Philippines
Material: Stainless steel,thin low carbon steel,brass plate,
Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate.
Hole Shape Diamond, Round, Square, Hexagon
Size for mesh panel 1000*2000mm, 1200*2400mm, 1250mm*2500mm, as customized
Hang Thickness 0.3mm-10mm
Hole Size SWD: 5.0-60mm LWD: 10-150mm
Techniqe Perforated
Application Office Ceiling, Building protection, Indoor decoration

Specification
Sheet Thickness Opening in Width
mm		 Opening in Length
mm		 Stem Roll Width
m		 Roll Length
m		 Weight
kg/m²
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 125 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 5 2 2.1 28.26

9 Gauge Aluminum Facade Expanded Wire Mesh Panels For Wall Coverings

Application:
1.Aerospace: nacelles, fuel filters, air filters
2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors
3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption
4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills
5.Hammer mill: screens for sizing and separating
6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
7.Pollution control: filters, separators
8.Mining: screens
9.Security: screens, walls, doors, ceilings, guards
10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates.

Packing:

9 Gauge Aluminum Facade Expanded Wire Mesh Panels For Wall Coverings
