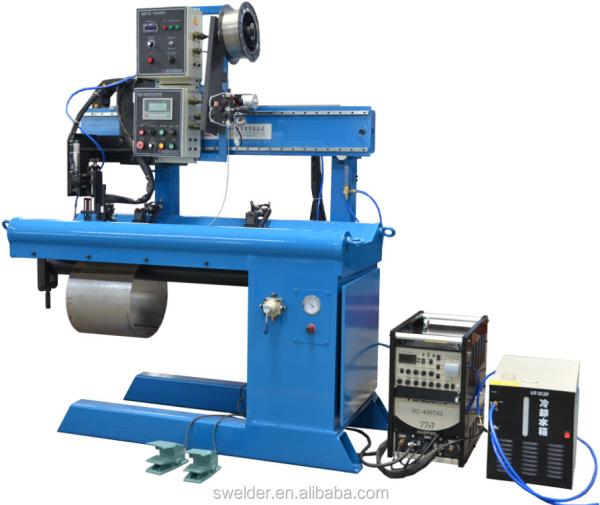

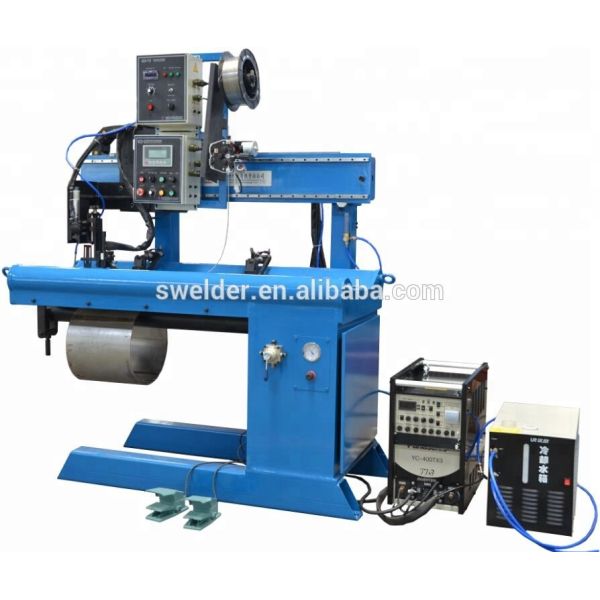

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder
Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder
Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder
Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder
Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder
Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder
Specifications
Packaging Details :
Wooden Box
Supply Ability :
30 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding robot
place of origin :
Sichuan, China
brand name :
Hanyan Technology
warranty :
1 Year
weight (kg) :
1000
voltage :
380V
current :
500A
rated capacity :
Depends
rated duty cycle :
Depends
dimensions :
2040x1005x1740mm
usage :
welding
Welding Mode :
TIG/MIG/MAG/PAW/SAW/RESISTANCE etc.
Welding length :
500-3000mm
Welding diameter :
80-800mm
Welding thickness :
0.4-6.0mm
Carriage Travel Speed :
100-1800 mm/min
Stroke of Torch :
100 mm
Control Power Input :
Single Phase 50HZ AC 220V
Welding Power Input :
Three Phase 50HZ AC380V
Max Welding Current :
500A
Seam Method :
Butt weld
Applicable Industries :
Manufacturing Plant
Showroom Location :
Egypt, Turkey, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, motor, Gear
Key Selling Points :
Automatic
Port :
Any port in China
Description

Product Description

• Usage:

Tank seam welding

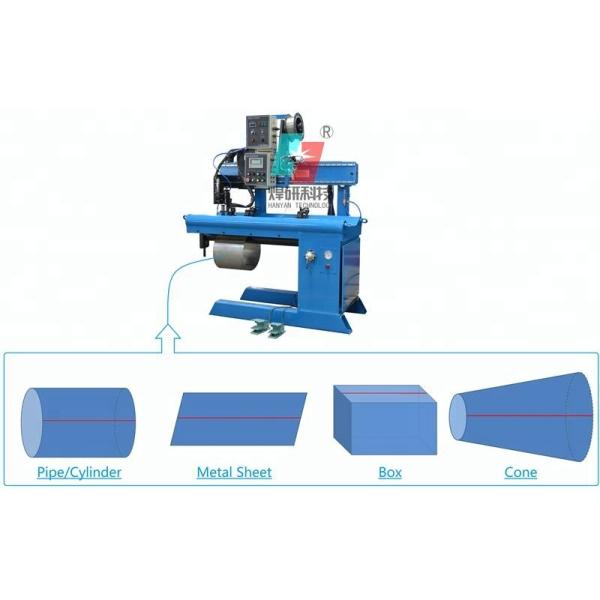

• Weldable objects:

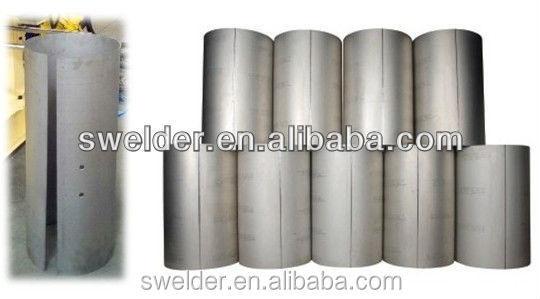

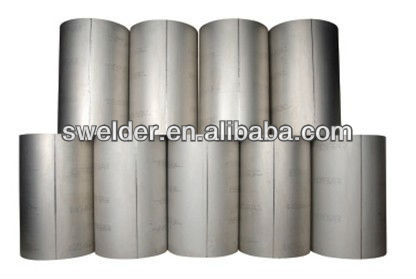

tubes, flat sheets, rectangular pipe, cylinders, cones, sinks, tank shells etc.

• Weldable material:

stainless steel, carbon steel, galvanized steel, aluminum, copper etc

Model

Max.Welding Length(mm)

Welding Thickness(mm)

Applicable Diameter(mm)

ZF-500

500

0.5-3.0

75-750

ZF-1000

1000

0.5-6.0

115-700

ZF-1500

1500

0.5-6.0

150-700

ZF-2000

2000

0.5-6.0

180-700

ZF-2500

2500

0.5-6.0

200-700

ZF-3000

3000

0.5-6.0

270-700

• Customized service: lengthening, heightening and others.

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam WelderThree Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

Customized From our users

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

ZF Series

HANYAN ZF Series external seam welders are designed for external welds on cylinders and flat sheets

Standard

Precision

Extra-Precision

Copper tip clamping fingers

Copper tipped, aluminum hold down fingers are standard on all HANYAN seam Welders. The copper tipped hold down fingers assist in the chilling the weld joint. Copper tooling absorbs and dissipates heat through the use of additional thermal mass, operating under pressure against work piece.

Back-up insert

Inserts are quickly and easily interchanged into the backup mandrel to accommodate a variety of material types and thicknesses. Copper inserts dissipate heat generated during the welding process.

Additional inserts are available to cover a wide range of material types and thicknesses. Inserts are available with or without gas back-up capabilities.

Back-up Mandrel

Designed to support the part being welded and hold the back-up inserts.

Droop mandrels are available to ease loading and unloading of parts.

Optional water cooled mandrels are available.

Fixed and removable riser options

Seam welder base can be modified to accommodate larger diameter parts.

Company information

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

Chengdu Hanyan Technology Co., Ltd.

is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.
We exported to over 29 countries and regions including General Longitudinal/Circumferential Seam Welder, Welding Auxiliaries, Water Heater Welding Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

Our Managment system & Certifications

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

Our Services

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Three Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam WelderThree Phase 50HZ AC380V Water Tank Welding Machine Auto Longitudinal Seam Welder

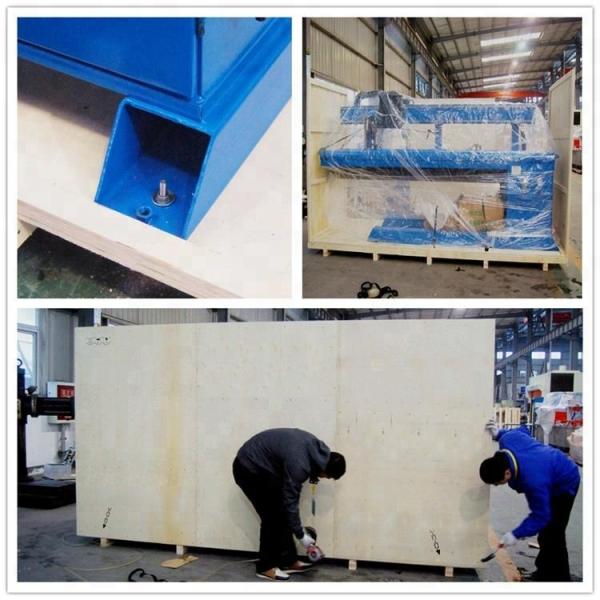

Packaging & Shipping
