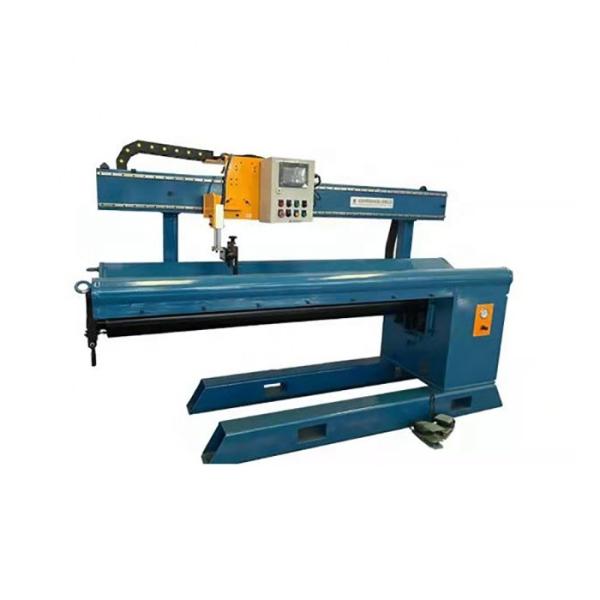

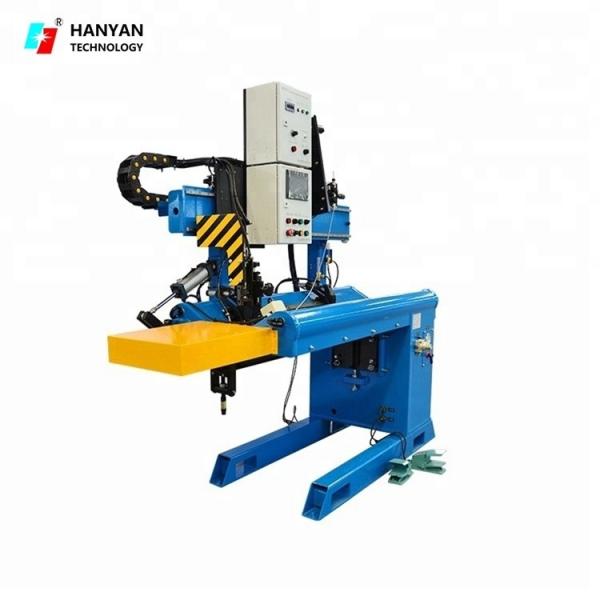

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
Specifications
Certification :
CE/ISO9001
Packaging Details :
Wooden Box
Supply Ability :
10 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
seam welder
place of origin :
Sichuan, China
brand name :
Hanyan Technology
warranty :
1 Year
weight (kg) :
1150
voltage :
220V 50Hz
current :
Max 500A
rated capacity :
Depends on welding requirement
rated duty cycle :
Depends on welding requirement
dimensions :
1900*1100*1800
usage :
seam welding
After-sales Service 1 Provided :
Online support
After-sales Service Provided :
Engineers available to service machinery overseas
Type :
Other
Color :
Blue or Customized
Weldment :
Tubes, flat sheets, cylinders, cones, sinks, tank shells etc.
Weldable Material :
Any weldable materials like Steel, Alloy, Aluminum etc.
Options :
Wire feeder, Oscillator, Tracker
Service :
OEM, ODM
Weight :
1150Kg
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Bearing
Key Selling Points :
High Safety Level
Port :
Shanghai/Chongqing
Description
About us

Chengdu Hanyan Technology Co., LTD. is a national high-tech enterprise specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment.

With 360 employees, including 159 who have been devoting into welding area for over 15 years, we are serving customers worldwide with dozens of various types of precision equipment and a factory covering an area of 15000sqm. To establish modern management, we customized an ERP system which could ensure punctual delivery and offer process surveillance. We have accomplished more than 20 patents in automatic welding industry. We are capable of providing 4000 units specialized welding equipment annually.

Product Description

Product Description

Designed for longitudinal seam welding.

Can be used with TIG/MIG/MAG/PAW and other welding powers and torches for different welding needs.

Model

Welding length(mm)

Welding thickness(mm)

Applicable diameter(mm)

Dimension(mm)

Weight (Kg)

Length

Width

Height

ZF-500

500

0.5-3.0

75-750

1320

1000

1800

390

ZF-1000

1000

0.5-6.0

115-700

1900

1100

1800

1150

ZF-1500

1500

0.5-6.0

150-700

2475

1100

1850

1550

ZF-2000

2000

0.5-6.0

180-700

2980

1100

1850

2050

ZF-2500

2500

0.5-6.0

200-700

3455

1100

1950

2450

ZF-3000

3000

0.5-6.0

270-700

4340

1100

1950

3050

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank ShellsMax 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank ShellsMax 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells

Update to though out straight seam welder

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank ShellsMax 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells

The welding process Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells

ZF Series

HANYAN ZF Series external seam welders are designed for external welds on cylinders and flat sheets

Standard

Precision

Extra-Precision

Copper tip clamping fingers

Copper tipped, aluminum hold down fingers are standard on all HANYAN seam Welders. The copper tipped hold down fingers assist in the chilling the weld joint. Copper tooling absorbs and dissipates heat through the use of additional thermal mass, operating under pressure against work piece.

Back-up insert

Inserts are quickly and easily interchanged into the backup mandrel to accommodate a variety of material types and thicknesses. Copper inserts dissipate heat generated during the welding process.

Additional inserts are available to cover a wide range of material types and thicknesses. Inserts are available with or without gas back-up capabilities.

Back-up Mandrel

Designed to support the part being welded and hold the back-up inserts.

Droop mandrels are available to ease loading and unloading of parts.

Optional water cooled mandrels are available.

Fixed and removable riser options

Seam welder base can be modified to accommodate larger diameter parts.

Company information

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells

Chengdu Hanyan Technology Co., Ltd.

is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.
We exported to over 29 countries and regions including General Longitudinal/Circumferential Seam Welder, Welding Auxiliaries, Water Heater Welding Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells

Packaging & Shipping

Max 500A Industrial Welding Machine For Tubes Flat Sheets Cylinders Cones Sinks Tank Shells
