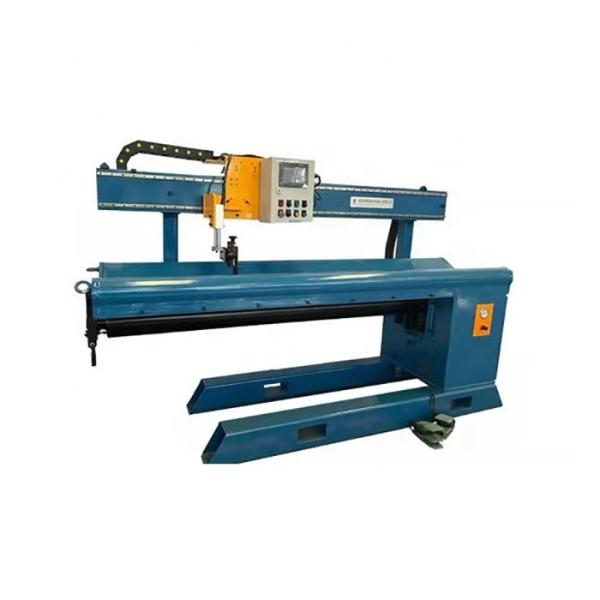

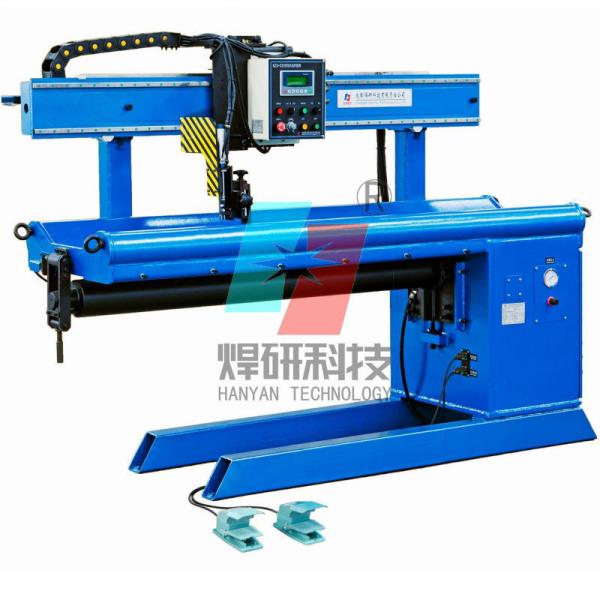

1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine
Specifications
Certification :
CE/CCC/ISO9001
Packaging Details :
Wooden Box
Supply Ability :
2 Set/Sets per Month
Price :
100
Brand Name :
XioFiTec/Hanyan
Model Number :
XioFiTec/Hanyan
condition :
New
machine type :
Welding Positioner
place of origin :
Sichuan, China
brand name :
Hanyan Technology
warranty :
1 Year, 12
weight (kg) :
1550
voltage :
220/380
current :
MAX. 500A (weld)
dimensions :
12475*1110*1850
usage :
Welding fixture and controller
After-sales Service Provided :
Engineers available to service machinery overseas
welding bed :
ZF-1500
welding power :
380V
control power :
220V
service :
available
color :
depends
Weight :
1550Kg
Type :
Other
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Bearing
Key Selling Points :
High Safety Level
Port :
Shanghai
Description

Welding Fixture And Controller For 1500mm Automated Tank Shell Longitudinal Welder Straight Seam Lap Over Welding Machine

1. Weldable workpiece:

Diameter

155 – 700mm

Length

1500mm (max.)

Thickness

0.5 – 6.0 mm

Type

Tubular shell/Metal plate, longitudinal seam


2. Main technical parameters:

Model

ZF1500

Controller power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

0.5~6.0mm

Workpiece diameter

700mm≥φ≥155mm

Workpiece length

≤1500mm

Carriage speed range

100~1800mm/min

Torch lifting height

100mm

Torch position adjustable range

Y: ±30mm, Z: ±30mm

Max. welding current

500A


It's a standard welding equipment, but we also can provide CUSTOMER DRIVEN SOLUTION to automate your welding application. If you have special welding needs, please fill your requirements in the following sheet and send back to us, we'll give you a professional welding solution within 3 working days.

Basics

Name of workpiece

Material

Material name

Material mark

Thickness

Dimension

Diameter

Width

Height

Length

Joint type

Butt joint

Lap joint

Fillet joint

1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

3. Some other standard welding equipments: 1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

WE CAN ENGINEER ANY MODEL TO AUTOMATE YOUR CUSTOM APPLICATION, AND SPECIALIZE IN PROVIDING A CUSTOMER DRIVEN SOLUTION TO YOUR AUTOMATED WELDING NEEDS!


Chengdu Hanyan technology Co.,Ltd. As one of the most professional research & development and manufacture teams of auto parts automatic welding equipments in China, accumulated full experience in the field of auto parts manufacturing, we have provided many automation welding production lines and equipments for hundreds of auto parts manufacturers in China or abroad.
We successfully developed many technologies and equipments and obtained many national and province level awards, successfully applied several patents.
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

Visit

In user factory:
1. Before sales: on site techinical solution and quotation.
2. after sales: installation, commisionning, training.
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine

In our factory:
1500mm Automated Tank Shell Longitudinal Welder Straight Seam Welding Machine
