Welded 2 Inch SS Pipe , ASTM 312 TP316 TP316L Stainless Steel Pipe For Power Generation
Welded 2 Inch SS Pipe , ASTM 312 TP316 TP316L Stainless Steel Pipe For Power Generation
Specifications
Brand Name :
Shangle
Model Number :
welded tube
Certification :
Stainless Steel Welded Pipe
Place of Origin :
CHINA
MOQ :
1ton
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
7-15 working days after receiving payment
Packaging Details :
In wooded cases or pallets,or as for clients requirement
Keywords :
Stainless Steel Welded Tube
Usage :
Industry/Construction
Tolerance :
±1%
Technique :
Cold Rolled Or Hot Rolled
Price Term :
CIF CFR FOB EX-WORK
Welding Line Type :
ERW
Description

ASTM 312 TP316, TP316L Stainless Steel Welded Pipe For Power Generation

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

Standard Specification:
ASTM A249 / A249M - 10a Standard Specification for Welded Austenitic Steel Boiler, Superheater,
Heat-Exchanger, and Condenser Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing
for General Service
ASTM A312 / A312M - 18:Standard Specification for Seamless, Welded, and Heavily Cold Worked
Austenitic Stainless Steel Pipes
ASTM A358/A358M-08a:Standard Specification for Electric-Fusion-Welded Austenitic
ASTM A778 - 01(2009)e1:Standard Specification for Welded, Unannealed Austenitic Stainless
Steel Tubular Products
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Pipe
Others like BS, JIS , DIN , EN , GOST standard we all can supply.


Material Grade:

American Standard Austenitic Steel:
TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel :
S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439,...
Europen Standard 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501
Gost Standard 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ


Designation: A312/A312M-18a / ASTM A790 / A790M - 11:
Standard specifications For Welded,And Heavily Cold Worked Austenitic Stainless Steel Pipe


If client has inspection requirements, we can accept the following inspection:

Manufacture Process ERW Welded ( ELD ) Pipe



Quality Inspection
  1. Metallographic Analysis
  2. Physical And Chemical Analysis
  3. Specification Eccentricity Test
  4. Mechanical Test
  5. PMI Test
  6. Eddy Current Test
  7. Large-Size Ultrasonic Flaw Test
  8. Ultrasonic Flat Test
  9. Thickness Test etc.



Mechanical Requirements		 Grade UNS Designation Tensile Strength Yield Strength
Min Ks i [M pa] Min Ks i [M pa]
TP304 S30400 75 [515] 30 [205]
TP304L S30403 70 [485] 25 [170]
TP309S S30908 75 [515] 30 [205]
TP310S S31008 75 [515] 30 [205]
TP316L S31603 70 [485] 25 [170]
.... .... ..... ....

  1. Specification
  2. Grade
  3. OD
  4. Wall
  5. SMLES OR WELDED ...
  • ASTM A312, ASTM A790
  • TP304,TP304L,TP304H,TP321,TP316L,S31803....
  • 6.00MM-830MM
  • 0.5MM-48MM
  • WELDED .....


Size Range:

Production Outside Diameter Wall Thickness
Welded Pipe 6.00mm to 830mm 0.5mm to 48mm

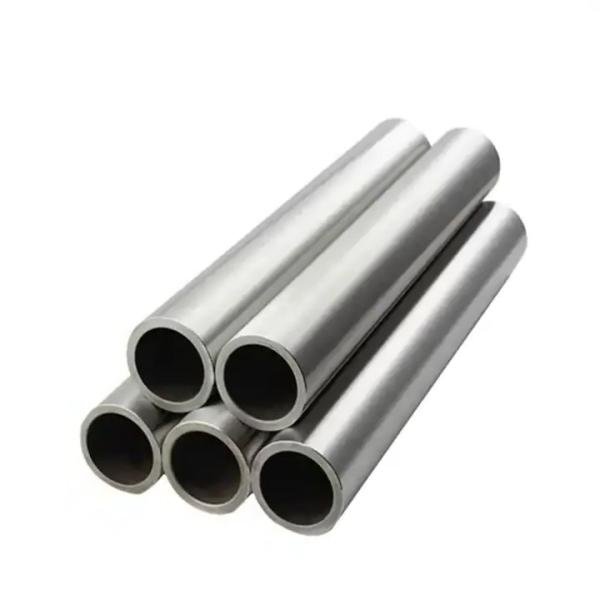

Detail Images:


Welded 2 Inch SS Pipe , ASTM 312 TP316 TP316L Stainless Steel Pipe For Power Generation
