SS Stainless Steel Welded Pipe ASTM A312 TP317L 0.4mm 0.5mm 0.6m
SS Stainless Steel Welded Pipe ASTM A312 TP317L 0.4mm 0.5mm 0.6m
Specifications
Brand Name :
Shangle
Model Number :
welded tube
Certification :
Stainless Steel Welded Pipe
Place of Origin :
CHINA
MOQ :
1ton
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
7-15 working days after receiving payment
Packaging Details :
In wooded cases or pallets,or as for clients requirement
Keywords :
Stainless Steel Welded Tube
Usage :
Industry/Construction
Tolerance :
±1%
Technique :
Cold Rolled Or Hot Rolled
Price Term :
CIF CFR FOB EX-WORK
Welding Line Type :
ERW
Description

ASTM A312 TP317LStainless Steel Welded Pipe SS Pipe Stainless Steel Tube

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

ASTM A312 TP317L Stainless Steel is a low carbon austenitic grade. The Stainless Steel TP317L Pipe consists of iron, chromium, nickel, molybdenum, manganese, silicon, phosphorous, carbon, and sulfur. Stainless Steel TP317L Pipe works well in water conditions due to the content of molybdenum. The lower carbon content makes them to be resistant to sensitization and gives them higher creep-rupture properties.

Equivalent Grades:

STANDARD WERKSTOFF NR. UNS JIS EN
SS 317L 1.4438 S31703 SUS 317L X2CrNiMo18-15-4

Specifications:

Specification ASTM A312 / ASME SA312
Size 1 / 8" NB - 24" NB
Types Seamless - Hot Rolled / Cold Drawn; Welded
Length Single Random, Double Random & Required Length
Outer Diameter 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB
Thickness 0.3mm – 50 mm
Schedule SCH10 - SCHXXS
Form Round, Square, Rectangular, Hot Finish, Cold Drawn
End Plain End, Beveled End, Treaded

Chemical Properties:

Grade C Mn Si P S Cr Mo Ni
SS317L min. - - - - - 18 3 11
max. 0.03 2 0.75 0.04 0.03 20 4 15

Mechanical Properties:

Tensile strength 595 MPa - 86300 Psi
Yield strength 260 MPa - 37700 Psi
Elongation at break (in 50 mm) 55%
Hardness, Rockwell B 85

Applications:

Power Plant

Paper & Pulp Industry

Chemical Industry

Food Processing Industry

Fabrication Industry

Oil and Gas Plant

Water Supply Equipments

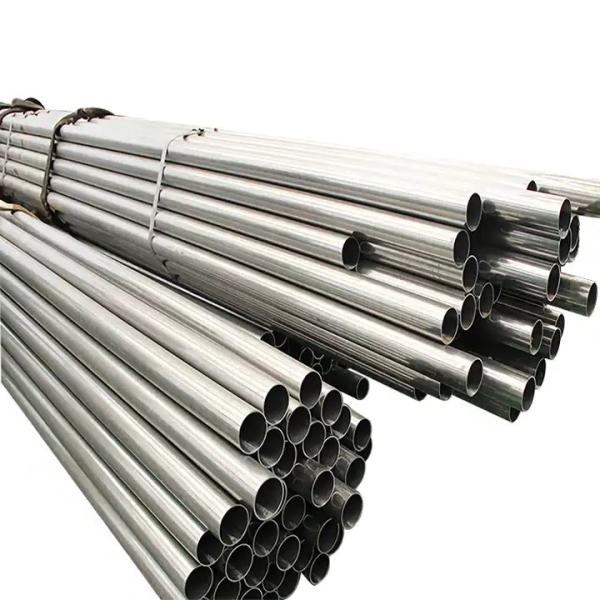

Detail Images:

SS Stainless Steel Welded Pipe ASTM A312 TP317L 0.4mm 0.5mm 0.6m
