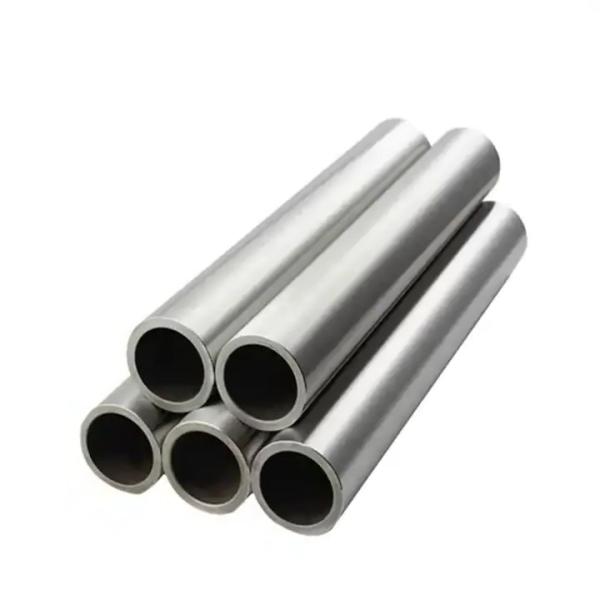

Cold Rolled 50mm Stainless Steel Pipe ASTM A358 CLASS 1 TP316L
Cold Rolled 50mm Stainless Steel Pipe ASTM A358 CLASS 1 TP316L
Specifications
Brand Name :
Shangle
Model Number :
welded tube
Certification :
Stainless Steel Welded Pipe
Place of Origin :
CHINA
MOQ :
1ton
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
7-15 working days after receiving payment
Packaging Details :
In wooded cases or pallets,or as for clients requirement
Keywords :
Stainless Steel Welded Tube
Usage :
Industry/Construction
Tolerance :
±1%
Technique :
Cold Rolled Or Hot Rolled
Price Term :
CIF CFR FOB EX-WORK
Welding Line Type :
ERW
Description

ASTM A358 CLASS 1 TP316L Stainless Steel Welded Pipes for Refineries

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description :

Composition: TP316L contains a lower carbon content compared to TP316, which enhances its resistance to sensitization - a process that can lead to corrosion in certain environments. The composition typically includes elements such as chromium, nickel, molybdenum, and sometimes small quantities of elements like titanium and manganese.

Applications: TP316L stainless steel pipes are commonly used in industries where corrosion resistance, strength, and high-temperature performance are critical. These applications can include chemical and petrochemical processing, pharmaceuticals, food processing, marine environments, heat exchangers, and various high-temperature services.

Manufacturing Standards: TP316L stainless steel pipes are produced according to ASTM standards, ensuring consistency in mechanical properties, dimensions, and quality.

Stainless Steel 316L tubing is made from austenitic stainless steel with chromium, nickel, and molybdenum in its composition, with a carbon content below the 316 grade. The low carbon content of this tubing makes it easier to use in welding applications.

EQUIVALENT GRADES FOR STAINLESS STEEL TP316 / 316L CLASS 1 EFW PIPES

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316 1.4401 / 1.4436 S31600 SUS 316 316S31 / 316S33 - Z7CND17-11-02 X5CrNiMo17-12-2 / X3CrNiMo17-13-3
SS 316L 1.4404 / 1.4435 S31603 SUS 316L 316S11 / 316S13 03Ch17N14M3 / 03Ch17N14M2 Z3CND17-11-02 / Z3CND18-14-03 X2CrNiMo17-12-2 / X2CrNiMo18-14-3

STAINLESS STEEL 316, 316L CLASS 1 EFW PIPES CHEMICAL COMPOSITION

Grade C Mn Si P S Cr Mo Ni N
SS 316 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 11.00 - 14.00 67.845 min
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min

MECHANICAL PROPERTIES OF STAINLESS STEEL TP316 / 316L CLASS 1 EFW PIPES

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1400 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %

APPLICATION

RefineriesRefineries

  • Refineries
  • Petrochemicals Industry
  • Oil&Gas Industry
  • Mining
  • Construction
  • Pharmaceuticals
  • Automobile
