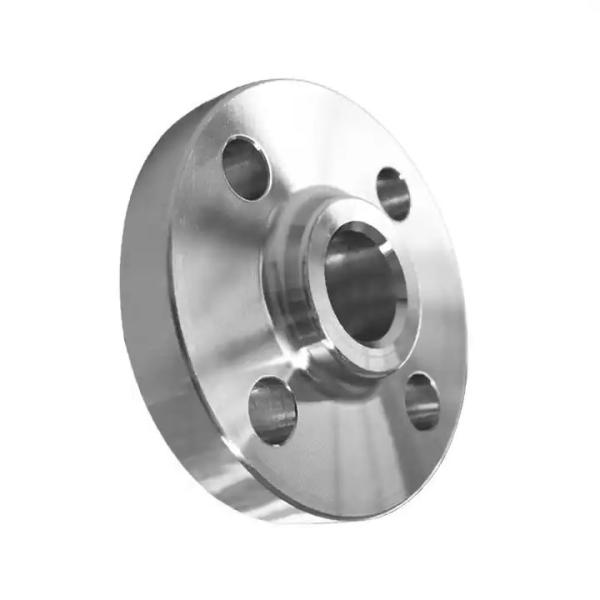

Forged Slip On Flat Face Flange
Forged Slip On Flat Face Flange
Specifications
Brand Name :
Shangle
Model Number :
304/304L,0Cr19Ni10,EN1.4306 ect
Certification :
ISO9001 PED
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
9999
Delivery Time :
5-7days
Packaging Details :
as required
Material :
F304L
Type :
Slip On
Standard :
Ansi Asme
Other :
Lap Joint Flange
Application :
Natural Gas, Chemical, Power And Metallurgy
Size :
1/2"-24"
Manufacturing Way :
Forging;Casting
Packing :
Wooden Box
Description

DIN2573, ASTM A182 F316 F316L Stainless Steel Forged Slip On Flat Face Flanges B16.5

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description:

DIN2573, ASTM A182 F316 F316L Stainless Steel Forged Slip On Flat Face Flanges B16.5

Slip On flange is also called SO Flange. Stainless Steel Slip On FF Flange is essentially a ring which is placed over the pipe end, with the flange face extending from end of pipe by some distance to apply a weld bead on the inside diameter. The Out Diameter of SOFF Flange is also welded on the back side of the pipe flanges. These Pipe Flanges slip over the pipe. They’re manufactured with an inside diameter which is slightly bigger than the pipe’s O.D. These attachments are connected to the pipe via fillet weld at the top and bottom of the flange. Our Group is professional in manufacturing DIN2573 SS316 / 316L or ASTM A182 F316 /F316L Stainless Steel Slip On Flat Face Flanges with excellent quality.

Mechanical Properties:

Grade

Density

Tensile Strength

Yield Strength (0.2%Offset)

Melting Point

Elongation

SS 316

8000 Kg/m3

Psi – 75000 , MPa – 515

Psi – 30000 , MPa – 205

1400 °C (2550 °F)

35 %

SS 316L

8000 Kg/m3

Psi – 75000 , MPa – 515

Psi – 30000 , MPa – 205

1399 °C (2550 °F)

35 %

Specifications:

Type

Slip On Flange

Size

1/2” to 48”

Class

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

Dimensions

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA,etc.

Standard

ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820

BS

BS4504 , BS4504, BS1560, BS10

DIN

DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

Surface Treatment

Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Form

SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc

Face Type

Flat Face (FF), Raise Face (RF), Ring Joint (RJT)

Connection Type

Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove

Applications

Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, etc.

Equivalent Grades:

STANDARD

UNS

WERKSTOFF NR.

JIS

BS

GOST

EN

AFNOR

F316

S31600

1.4401 / 1.4436

SUS 316

316S31 / 316S33

–

X5CrNiMo17-12-2 / X3CrNiMo17-13-3

Z7CND17‐11‐02

F316L

S31603

1.4404 / 1.4435

SUS 316L

316S11 / 316S13

03Ch17N14M3 / 03Ch17N14M2

X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Z3CND17‐11‐02 / Z3CND18‐14‐03

Equivalent Grades:

STANDARD

UNS

WERKSTOFF NR.

JIS

BS

GOST

EN

AFNOR

F316

S31600

1.4401 / 1.4436

SUS 316

316S31 / 316S33

–

X5CrNiMo17-12-2 / X3CrNiMo17-13-3

Z7CND17‐11‐02

F316L

S31603

1.4404 / 1.4435

SUS 316L

316S11 / 316S13

03Ch17N14M3 / 03Ch17N14M2

X2CrNiMo17-12-2 / X2CrNiMo18-14-3

Z3CND17‐11‐02 / Z3CND18‐14‐03

Applications:

  • Refineries
  • Food Processing & Dairy
  • Oil and Gas Industry
  • Off-Shore Oil Drilling Companies
  • Pharmaceutical Equipment
  • Pulp & Paper Industry
  • Power Generation
  • Specialty Chemicals
  • Sea Water Equipment
  • Gas Processing
  • Chemical Equipment
  • Heat Exchangers
  • Petrochemicals
  • Pharmaceuticals
  • Condensers
Forged Slip On Flat Face FlangeForged Slip On Flat Face Flange
