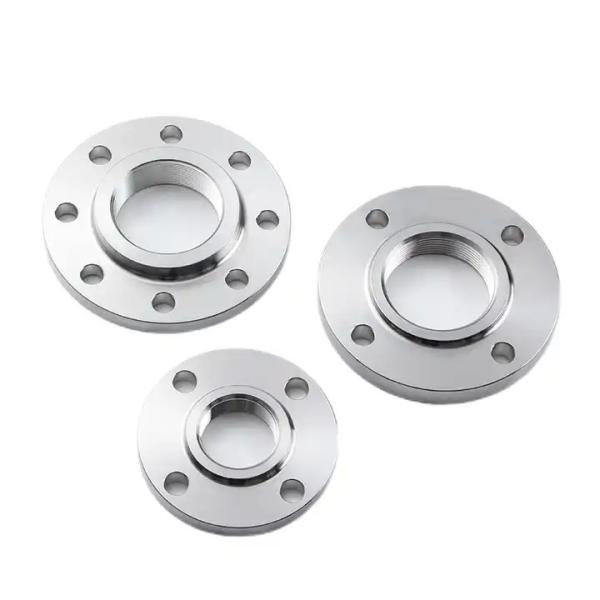

SWRF Stainless Steel Flange ASTM A182 F304 B16.5 Oil Gas Proof Against Corrosion
SWRF Stainless Steel Flange ASTM A182 F304 B16.5 Oil Gas Proof Against Corrosion
Specifications
Brand Name :
Shangle
Model Number :
304/304L,0Cr19Ni10,EN1.4306 ect
Certification :
ISO9001 PED
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
9999
Delivery Time :
5-7days
Packaging Details :
as required
Material :
F304L
Type :
Slip On
Standard :
Ansi Asme
Other :
Lap Joint Flange
Application :
Natural Gas, Chemical, Power And Metallurgy
Size :
1/2"-24"
Manufacturing Way :
Forging;Casting
Packing :
Wooden Box
Description

SWRF Stainless Steel Flange ASTM A182 F304 B16.5 Oil Gas Proof Against Corrosion

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description:

ASTM A182 F304 is Stainless Steel Flat Welding Flanges are made of stainless steel 304 as raw material, through the processes of forging, turning, polishing, inspection, etc., and manufactured into a kind of piping fittings, which are usually used for connecting pipelines and equipments in order to transmit fluids in piping systems. Here we come to know more about the production process and material standard requirements of this flange.

First, the production process:

1, material cutting: according to ASME B16.9 feet standard requirements, select the appropriate size of the raw material for cutting down. Common cutting methods include shearing, flame cutting, plasma cutting and so on. When cutting, you need to pay attention to keep the cutting surface flat and accurate.

2, forging: F304 stainless steel material is heated to a certain temperature and then forged to form the basic shape and size of the flange.

3,Turning:Turning the flange after forging to precisely control its diameter and thickness and other dimensions.

4,Finishing: The flange after turning is polished to remove surface burrs and oxidized layer to ensure the surface of the flange is flat and smooth.

5, Inspection: Strict inspection and testing of the polished flange to ensure that its dimensional accuracy, surface quality and sealing performance meet the requirements.

Chemical Composition of A182 F304 Alloy Steel Flanges

C Mn Si P S Cr Ni N
304 0.07max 2.0max 0.75max 0.045max 0.03max min: 18.0 max: 20.0 min: 8.0 max: 10.5 —



Mechanical Properties of A182 F304 Alloy Steel Flanges

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201


Physical Composition of A182 F304 Alloy Steel Flanges
Grade Density(kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
304/L/H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

Application

Food and pharmaceutical industry

Petroleum

Energy

Chemical

Oil Gas

SWRF Stainless Steel Flange ASTM A182 F304 B16.5 Oil Gas Proof Against CorrosionAnsi Asme Slip On Forged DN50 Sch40 Cdwn014 Stainless Steel Flanges
stainless steel Forged Flange 304/304L ASTM A182 Wnrf 150# Sch40 Cdwn014
Model NO. DN150 150LB WN FLANGE Delivery It Is Generally Within 25 Days After Receiving You
Trade Term
Manufacturing Way Forging Trade Term Fob, CNF&CFR, CIF
Size 1/2"-24" Manufacturing Technique CNC Lathe
Material 304, 304L, 316/316L, 904L, 2520, 317L, F51, F2205 Trademark zheheng
Producing Process Producing Process
Billet-Cutting-Forging-Heating-Lathe-Drilling-Insp Transport Package Wooden Case
Application Fields Chemical Industry /Petroleum Industry /Power Indus Specification 1/2"-30"
Inspection Factory in-House Self Check or Third Party Inspect Origin Wenzhou, China
Packing Plywood Cases, Pallets, Nylon Bags or According to
Delivery HS Code 7307210000
Product size 1/2"-48"
pressure CLASS150-CLASS1500
My superiority
1: I have a lot of stock in my product.
2:We have many kinds of products to provide you with one-stop service.
3:Complete after-sales service, let you rest assured to buy.
Product packaging I can provide for air / sea / land Zhi wooden box, wooden pallets etc..
Surface treatment Hot-dip galvanizing/Black paint/Yellow paint/Blue paint
Product usage petroleum/chemical industry/Fluid pipe connection/Machinery parts etc
Date of delivery
The inventory is usually 3-5 days.
The custom product calculates the time of goods according to the quantity and specification.
Payment method L/CD/AD/PT/TWestern UnionMoneyGram etc..
1. Q: Are you a factory or a trading company?
A: We are a manufactor of Forged Flange. Also, we have many qualified cooperated mills to supply flange Fittings and Pipes. We also do OEM for europe mills for long time.
2. Q: How can you ensure the quality?
A:Quality as our most imfortant point in our business. And ensure that all the raw materials are 100% inspected absolutely according to our customers' request. We inspect chemical composition for every lot of our material , and supply the record to issue the 3.1 Quality Certificate. We can provide the 3.1 Quality Certificate together with the shipping documents if you need.
3. Q:How long would be the delivery?
A: Factory direct sales, We offer goods in Fastest Delivery time as we can according to the quantity and request.
4.Q: How about the packing?
A: Wooden Pallet or Wooden box as per customers' requirements.
SWRF Stainless Steel Flange ASTM A182 F304 B16.5 Oil Gas Proof Against CorrosionSWRF Stainless Steel Flange ASTM A182 F304 B16.5 Oil Gas Proof Against Corrosion
