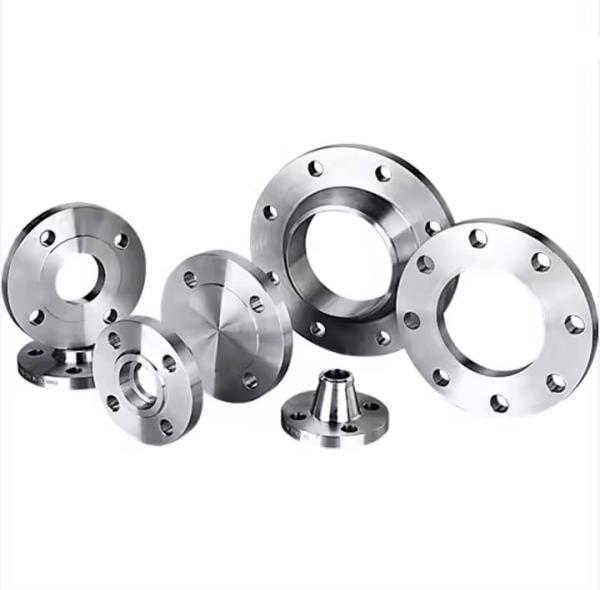

Slip On Stainless Steel Flange ASTM A182 F53 Super Duplex Weld Neck RF 1/2-24
Slip On Stainless Steel Flange ASTM A182 F53 Super Duplex Weld Neck RF 1/2-24
Specifications
Brand Name :
Shangle
Model Number :
304/304L,0Cr19Ni10,EN1.4306 ect
Certification :
ISO9001 PED
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
9999
Delivery Time :
5-7days
Packaging Details :
as required
Material :
F304L
Type :
Slip On
Standard :
Ansi Asme
Other :
Lap Joint Flange
Application :
Natural Gas, Chemical, Power And Metallurgy
Size :
1/2"-24"
Manufacturing Way :
Forging;Casting
Packing :
Wooden Box
Description

ASTM A182 F53 (UNS S32750) Super Duplex Stainless Steel Weld Neck RF Flange, Nipoflange

Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.

Description:

ASTM A182 F53 super duplex stainless steel weld neck flange Is a specification of super duplex stainless steel that display excellent corrosion resistant properties and provide excellent strength even at sub-zero temperatures. ASTM A182 UNS S32750 / F53 Super Duplex Steel Flanges have 24% chromium, 3% molybdenum, 6% nickel and carbon, manganese, silicon, sulfur, phosphorus, nitrogen and iron in the composition. These flanges can withstand high temperatures and pressure. ASTM A182 F53 super duplex stainless steel flanges are extensively utilized in the hydrocarbon, petrochemical and heavy oil refineries industries.

Chemical Composition:

% C Mn P S Si Cr Ni Mo N Cu
F53 0.03 max 1.2 max 0.035 max 0.015 max 0.8 max 24-26 6-8 3-5 0.3 0.5 max

Mechanical Properties:

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7800 kg/m3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %

Key Features:

Good ductility

Good toughness

High strength

Excellent corrosion resistance

Specification:

Specification ASTM A182 / ASME SA182
UNS Grade F51, F53, F55, F60
Standard ANSI, ASME, BS, DIN, EN, etc.
Size 1/2” to 48″
Dimensions ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Applications:

Oil and Gas Industry

Chemical Processing Plant

Seawater Desalination

Offshore Platforms

Waste Water Treatment

Shipbuilding Equipment

Power Generation

Pharmaceutical Equipment

Construction industry

Defence Industry
