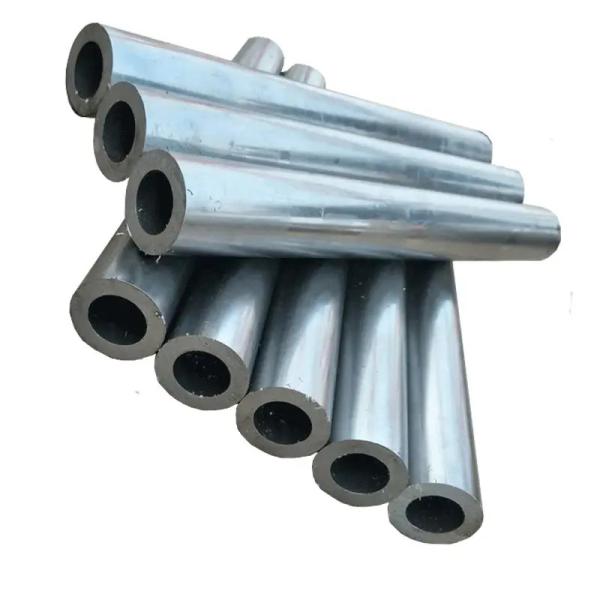

ASTM A789 / ASME SA789 UNS S31803 / 1.4462 DUPLEX STAINLESS STEEL SEAMLESS TUBE
ASTM A789 / ASME SA789 UNS S31803 / 1.4462 DUPLEX STAINLESS STEEL SEAMLESS TUBE
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

ASTM A789/ASME SA789 UNS S31803/1.4462 DUPLEX STAINLESS STEEL SEAMLESS TUBE

Overview:

The ASTM A789 UNS S31803 tubing refers to seamless and welded tubing manufactured in accordance with ASTM A789/ASTM A789M, which contains approximately 50% ferrite and 50% austenite. The stress corrosion resistance of ASTM A789 in neutral chloride solution and H2S is better than that of 304L, 316L austenitic stainless steel, and 18-5mo type duplex stainless steel. The UNS S31803 tubing is especially suitable for the temperature range of -50°F/+600°F. It may also be considered for applications beyond this temperature range, but there are some limitations, especially when applied to weld structures.

The ASTM A789/A789M UNS 31803 tubes shall be made by the seamless or welded process with no filler metal added. It shall be quenched in cool air or water rapidly to a temperature of 1800°F[980°C]-1900°F[1040°C]. For seamless tubes, as an alternative to final heat treatment in a continuous furnace or batch-type furnace, while the tube temperature is not lower than the specified minimum solution treatment temperature, tubes may be immediately quenched in water or rapidly cooled by other means.

Specification:

Specification ASTM A789 & Its equivalent ASME, DIN & EN Standard.
Grades UNS S31803; 1.4462
Type U-bend & Straight seamless tube
Outer Diameter 1/4'' to 2'' or custom size
Wall Thickness BWG25;BWG22;BWG20;BWG18;BWG16;BWG14;BWG12;BWG10
Length Up to 6 meters, custom cut lengths
Delivery Condition Solution Annealed & Pickled; Bright Annealed
Ends Plain End, Beveled End
Other Testing Product Analysis, Eddy Current Test, Hydrostatic Test, Ultrasonic Test, Flattening Test, Hardness Test, Tensile Test etc.
Dimension All Pipes & Tube Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME
Packing Plywood case/Woven bag in bundle

Grade C Mn P S Si Cr Ni Mo N
UNS S31803 0.03 max 2.00 max 0.03 max 0.02 max 1.00 max 21.0-23.0 4.5-6.5 2.5-3.5 0.08-0.2

Grade Tensile Strength, min, ksi (MPa)

Yield Strength,

min, ksi (MPa)

Elongation in 2 in.

or 50mm, min (%)

 Hardness

Solutioning Temperature,

min, °F(°C)
Rockwell Brinell/Vickers
UNS S31803 90(620) 65(450) 25 30HRC 290HBW/290HV 1870–2010
(1020–1100)

Applications:

1.Chemical Processing, Transport and Storage

2.Oil and Gas Exploration and Offshore Rigs

3.Mil and Gas Refining

4.Marine Environments

5.Pollution Control Equipment

6.Pulp & Paper Manufacturing

7.Chemical Process Plant
