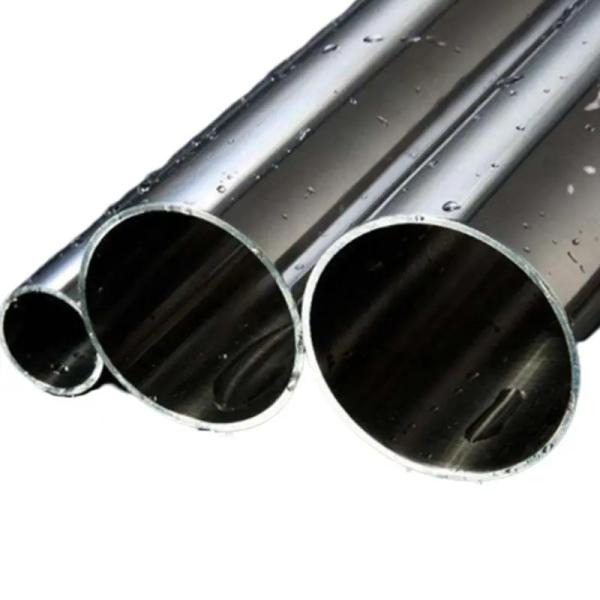

ASTM A790 UNS S32205 / Duplex Steel 2205 Seamless And Welded Pipe
ASTM A790 UNS S32205 / Duplex Steel 2205 Seamless And Welded Pipe
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

ASTM A790 UNS S32205 / Duplex Steel 2205 Seamless and Welded Pipe

Duplex 2205 stainless steel (both ferritic and austenitic) is used extensively in applications that require good corrosion resistance and strength. The UNS S31803 grade stainless steel has undergone a number of modifications resulting in UNS S32205, and was endorsed in the year 1996. This grade offers higher resistance to corrosion, but for much of the Duplex S31803 currently produced also complies with Duplex S32205

ASTM A790 UNS 32205 Duplex Stainless Steel Seamless Pipes

ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Specification ASTM A789, ASTM A790, ASTM A928, ASME SA789, ASME SA790, ASME SA928
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Grades UNS S32205, UNS S31803, UNS S32750, UNS S32760, SAF® 2205, SAF® 2507
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Type Seamless / Welded / ERW / EFW / Cold Draw / Hot Finish / Cold Finish
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Outer Diameter Size Seamless - 1/2" NB TO 18" NB
Welded / ERW- 1" NB TO 16" NB
EFW - 8" NB TO 110" NB
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Wall Thickness Schedule 10 to Schedule 160
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Length Single Random Length, Double Random Length And Customize Size.
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Ends Plain Ends / Beveled Ends
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Delivery Conditions As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw, Bright Annealed
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Dimension All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Value Added Services Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Packaging Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes Material Test Certificate Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Chemical Composition of ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes

Grade C Mn Si P S Cr Mo Ni N
2205 (UNS S31803) Min Max - 0.030 - 2.00 - 1.00 - 0.030 - 0.020 21.0 - 23.0 2.5 - 3.5 4.5 - 6.5 0.08 - 0.20
2205 (UNS S32205) Min Max - 0.030 - 2.00 - 1.00 - 0.030 - 0.020 22.0 - 23.0 3.0 - 3.5 4.5 - 6.5 0.14 - 0.20

S32750 (2507) Seamless Pipe Chemical Composition:

HEAT NO. CHEMICAL COMPOSITION (%)
C Mn P S Si Ni Cr Mo N
STAND. MIN. 6.0 24.00 3.0 0.24
MAX. 0.03 1.20 0.035 0.020 0.80 8.0 26.00 5.0 0.32

Mechanical Composition of ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes

Grade Tensile Strength
(MPa) min		 Yield Strength
0.2% Proof
(MPa) min		 Elongation
(% in 50mm) min		 Hardness
Rockwell C (HR C) Brinell (HB)
UNS S32205 / 2205 621 448 25 31 max 293 max

Physical Properties of ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes

Grade Density
(kg/cm3)		 Elastic
Modulus (GPa)		 Mean Co-eff of Thermal
Expansion (μm/m/°C)		 Thermal
Conductivity (W/m.K)		 Specific
Heat
0-100°C ( J/kg.K)		 Electrical
Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
UNS S32205 / 2205 7.8 190 13.7 14.2 - 19 - 418 850

Equivalent Grade of duplex 2205

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
2205 S31803 / S32205 318S13 - 1.4462 X2CrNiMoN22-5-3 2377 SUS 329J3L

Applications

  • Chemical Processing, Transport and Storage
  • Oil and Gas Exploration and Offshore Rigs
  • Mil and Gas Refining
  • Marine Environments
  • Pollution Control Equipment
  • Pulp & Paper Manufacturing
  • Chemical Process Plant
