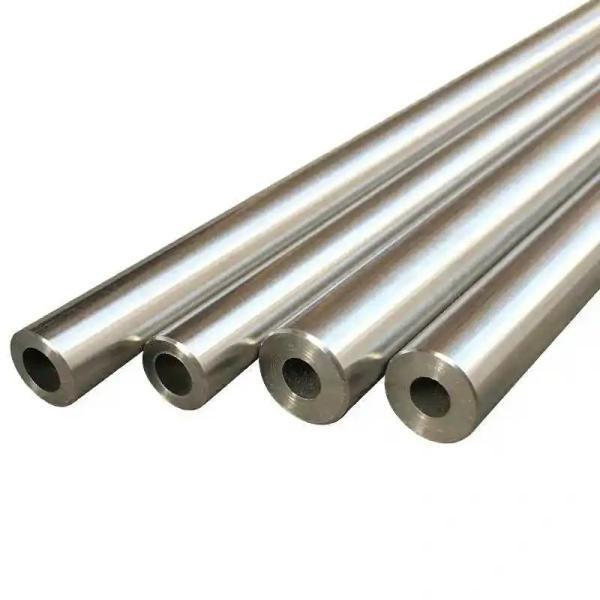

ASTM A789 Duplex 2205 Stainless Steel Hollow Bar
ASTM A789 Duplex 2205 Stainless Steel Hollow Bar
Specifications
Brand Name :
Shangle
Model Number :
12.7
Certification :
PED,IS09001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500TONS/30DAYS
Delivery Time :
30DAYS
Packaging Details :
Woven Packing
Material :
304 ,304L 310 321 316 316L
Standard :
AISI, ASTM, DIN, EN, GB
Shape :
SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80
Technique :
Cold Draw
Application :
Oil, Petroleum/Power
Package :
Woven Packing
Description

Stainless Steel Hollow Bar / Duplex Steel Hollow Bar/ Nickel Alloy Steel Hollow Bar

SHANGLE program of hollow bar includes several grades of austenitic stainless steel as well as duplex stainless/nickel alloy steel.

Outside diameter 1

Wall thickness 1

Type

Specification

Quality
Hollow bar EN 10294-1 20MNV6
11,600 Hollow bar EN 10216-5 1.4404
20,050 Hollow bar EN 10216-5 1.4404
9,700 Hollow bar EN 10216-5 1.4404
100,000 10,000 Hollow bar EN 10294-1 E470
100,000 10,000 Hollow bar EN 10294-1 E470
100,000 10,000 Hollow bar EN 10216-5 1.4306
100,000 10,000 Hollow bar EN 10216-5 1.4404
100,000 10,000 Hollow bar EN 10294-1 E470
100,000 10,000 Hollow bar ISO2938- 20MNV6
100,000 10,000 Hollow bar EN 10216-5 1.4306
100,000 10,000 Hollow bar EN 10216-5 1.4404
100,000 10,000 Hollow bar EN 10294-1 E470
100,000 12,500 Hollow bar EN 10294-1 E470
100,000 12,500 Hollow bar EN 10294-1 E470
100,000 12,500 Hollow bar ISO2938- 20MNV6
100,000 12,500 Hollow bar EN 10294-1 E470
100,000 12,500 Hollow bar EN 10294-1 E470
100,000 14,500 Hollow bar EN 10216-5 1.4404
100,000 14,500 Hollow bar EN 10294-1 E470
100,000 14,500 Hollow bar ISO2938- 20MNV6
100,000 14,500 Hollow bar EN 10216-5 1.4404
100,000 14,500 Hollow bar EN 10216-5 1.4307
100,000 15,000 Hollow bar EN 10294-1 E470
100,000 15,000 Hollow bar EN 10294-1 E470
100,000 15,000 Hollow bar EN 10294-1 E470
100,000 17,500 Hollow bar EN 10294-1 E470
100,000 17,500 Hollow bar EN 10294-1 E470
100,000 18,500 Hollow bar EN 10294-1 E470
100,000 18,500 Hollow bar EN 10294-1 E470
100,000 18,500 Hollow bar ISO2938- 20MNV6
100,000 18,500 Hollow bar EN 10216-5 1.4404
100,000 18,500 Hollow bar EN 10216-5 1.4307
100,000 20,000 Hollow bar EN 10294-1 E470
100,000 20,000 Hollow bar EN 10294-1 E470
100,000 20,000 Hollow bar EN 10294-1 E470
100,000 22,000 Hollow bar EN 10216-5 1.4306
100,000 22,000 Hollow bar EN 10294-1 E470
100,000 22,000 Hollow bar ISO2938- 20MNV6
100,000 22,000 Hollow bar EN 10216-5 1.4404
100,000 22,000 Hollow bar EN 10216-5 1.4404
100,000 22,500 Hollow bar EN 10294-1 E470
100,000 22,500 Hollow bar EN 10294-1 E470
100,000 22,500 Hollow bar EN 10294-1 E470
100,000 45,000 Hollow bar EN 10294-1 E470
100,000 45,000 Hollow bar EN 10294-1 E470
101,000 30,000 Hollow bar EN 10294-1 E470
101,600 (3 1/3") 12,500 Hollow bar ISO2938- 20MNV6
101,600 (3 1/3") 14,900 Hollow bar EN 10294-1 OVAKO 280
101,600 (3 1/3") 16,000 Hollow bar ISO2938- 20MNV6

Shangle Group testing of hollow bar

Shangle hollow bar stock standard items are tested according to below.
Certificate status according to EN 10204/3.1B.

TP304L,TP 316L,1.4435 and 1.4571

Standards and testing
PED 97/23/EC (leak test is deferred to machined component)
EN 10216-5 , EN 10294-2
Intergranular corrosion test acc. to EN ISO 3651-2A in delivery condition
NACE MR 0175*/ISO 15156

Duplex 2205, s31803 , Super Duplex : 32750, S32760 , S32304, S31500, S32900

Standards and testing
PED 97/23/EC
EN 10216-5 TC1
EN 10294-2, EN 10297-2
Norsok MDS 041*, ASTM A790
Corrosion test acc. to ASTM G-48 A
NACE MR 0175/ISO 15156

Tolerances for hollow bar

SHANGLE hollow bar is delivered with tolerances according to below. Other tolerances can be offered to special order.

Outside diameter (OD)

+2/-0% but minimum +1/-0 mm (+0.04/-0 in.)
+/-1% (OD 275 mm)

Inside diameter (ID)

+0/-2% but minimum +0/-1 mm (+0/-0.04 in.)

Straightness

Straightness deviation max. 1.5 mm per 1000 mm (0.059 in. per 3 ft).
