Specifications
Brand Name :
KELONG
Model Number :
KL109
Place of Origin :
CHINA
MOQ :
100
Payment Terms :
L/C, T/T
Supply Ability :
100,000 pcs /months
Delivery Time :
15
Packaging Details :
Customize the packaging you want
Name :
Kl109 High Pressure Chevron Seal
Material :
FABRIC NBR POM PTFE
Pressure (max) bar :
400
Temperature (max) °C :
-30/+80
Sliding Speed (max)- m/s :
2.0
Advantages :
Adjustable Housing
Description

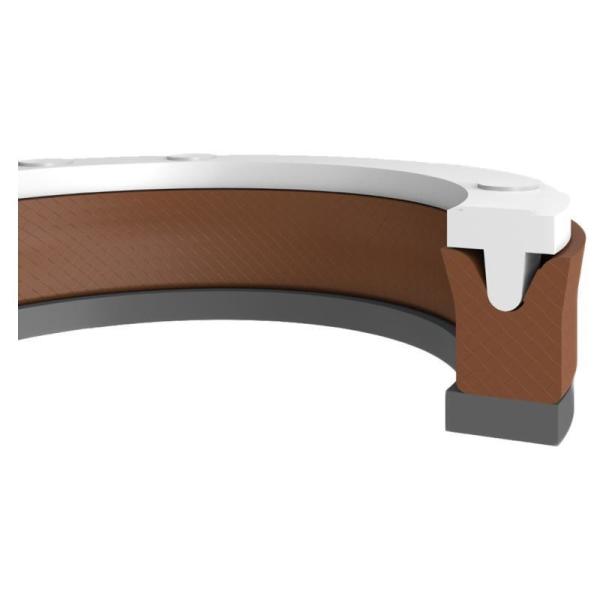

K151 high pressure sealing sets are three pieces rod sealing elements consisting of water resistant fabric elastomer chevron ring, backup ring and head adapter for pressure washers. * The product in the visual belongs to K151 consists of a chevron ring and front adapter. K151B SKU`s has an additional back-up ring.

Advantages

• High speeds
• Water compatibility and low swelling
• Long service life
• Adjustable housing

Area of Application

• Pressure washers

Kl109 High Pressure Chevron Seal , PTFE Chevron Seals With Adjustable Housing

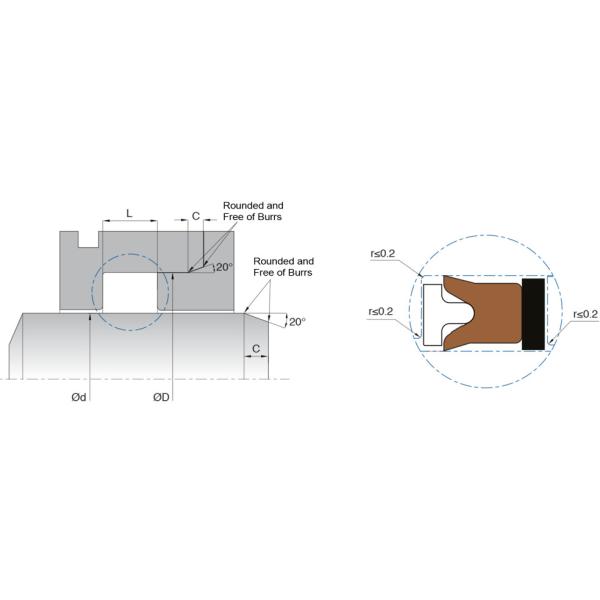

d (f7) D (H9) L (+0.2/-0) C MATERIAL
KL109-014 B 14 24 9 6 FABRIC NBR
POM
PTFE
KL109-015 B 15 24 9 6 FABRIC NBR
POM
PTFE
KL109-016 B 16 26 9 6 FABRIC NBR
POM
PTFE
KL109-018 B 18 28 10 6 FABRIC NBR
POM
PTFE
KL109-020 B 20 30 10 6 FABRIC NBR
POM
PTFE
KL109-022 B 22 32 10 6 FABRIC NBR
POM
PTFE
KL109-024 B 24 34 10 6 FABRIC NBR
POM
PTFE
KL109-025 B 25 35 10 6 FABRIC NBR
POM
PTFE
KL109-028 B 28 38 10 6 FABRIC NBR
POM
PTFE
KL109-014 14 24 7.25 6 FABRIC NBR
POM
PTFE
KL109-015 15 24 7.25 5 FABRIC NBR
POM
PTFE
KL109-016 16 26 7.25 6 FABRIC NBR
POM
PTFE
KL109-018 18 28 8 6 FABRIC NBR
POM
PTFE
KL109-020 20 30 8 6 FABRIC NBR
POM
PTFE
KL109-020/1 20 35 8.35 8 FABRIC NBR
POM
PTFE
KL109-020/2 20 32 8 7 FABRIC NBR
POM
PTFE
KL109-022 22 32 8.15 6 FABRIC NBR
POM
PTFE
KL109-022/1 22.2 32 8 6 FABRIC NBR
POM
PTFE
KL109-024 24 34 8 6 FABRIC NBR
POM
PTFE
KL109-025 25 35 7.85 6 FABRIC NBR
POM
PTFE
KL109-028 28 38 8 6 FABRIC NBR
POM
PTFE
