Specifications
Brand Name :
Kelong
Model Number :
KL20
Certification :
ISO9001 / IRIS
Place of Origin :
China
Payment Terms :
L/C, T/T, Paypal
Delivery Time :
7-15 work days
Packaging Details :
Opp bag
Supply Ability :
100,000 pcs /months
Style :
U Cup Piston Seal
Temperature (max) °C-1 :
-40/+100
Temperature (max) °C-2 :
-30/+105
Material :
PU / NBR
Pressure (max) bar :
400/150
Sliding Speed (max)- m/s :
0.5
Description

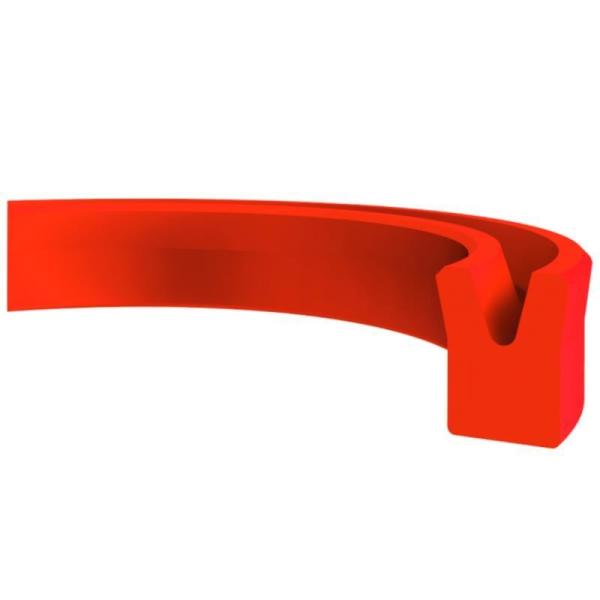

Single Acting Symmetrical U-Cup Be Produced From Polyurethane Material For Use In Light Duty Cylinders.

KL20 is an innovative rod seal developed for challenging high temperature applications that require both extrusion resistance and low leakage.

Advantages

• Wide range of dimensions
• Economical sealing solution
• Good dynamic and static sealing
• Good locking feature

Area of Application

• Standard industrial cylinders
• Agricultural cylinders
Single Acting U Cup Piston Seal / Polyurethane Hydraulic Seals For Light Duty Cylinders
d(f7) dp(h11) Db(H10) D(H10) L (+0.2/-0) H C MATERIAL
K20-003/5 3 8 5 4.5 3 NB
K20-004 4 10 6 5 3.5 NB
K20-004/2 4 12 4.5 4 4.5 NB
K20-004/3 4 10 4.5 4 3.5 NB
K20-004/3 PU 4 10 4.5 4 3.5 PU
K20-004/4 4 7.5 3.5 3 2.5 NB
K20-004/6 4 10 7 6 3.5 NB
K20-004/6 PU 4 10 7 6 3.5 PU
K20-005/2 5 11 6 5 3.5 NB
K20-005/2 PU 5 11 6 5 3.5 PU
K20-005/4 5 10 6 5 3 NB
K20-005/4 PU 5 10 6 5 3 PU
K20-005/5 5 9 2.9 2.4 2.5 NB
K20-005/6 5 12 6 5 4 NB
K20-005/6 PU 5 12 6 5 4 PU
K20-005/8 5 12 4.5 4 4 NB
K20-006 6 9 2.5 2 2 NB
K20-006/1 6 12 7 6 3.5 NB
K20-006/1 PU 6 12 7 6 3.5 PU
K20-006/2 6 12 8 7 3.5 NB
K20-006/2 PU 6 12 8 7 3.5 PU
K20-006/3 6 10 3.5 3 2.5 NB
K20-006/3 PU 6 10 3.5 3 2.5 PU
K20-006/6 6 12 4.5 4 3.5 NB
K20-006/6 PU 6 12 4.5 4 3.5 PU
K20-006/9 6 13 6.5 5.5 4 NB
K20-006/9 PU 6 13 6.5 5.5 4 PU
K20-006/12 6 14 4.5 4 4 NB
K20-006/12 PU 6 14 4.5 4 4 PU
K20-006/14 6 12 6 5 3.5 NB
K20-007/5 7 12 4.5 4 3 NB
K20-008 8 18 9 8 5.5 NB
K20-008 PU 8 18 9 8 5.5 PU
K20-008/1 8 14 7 6 3.5 NB
K20-008/1 PU 8 14 7 6 3.5 PU
K20-008/2 8 16 7 6 4.5 NB
K20-008/2 PU 8 16 7 6 4.5 PU
K20-008/3 8 16 9 8 4.5 NB
K20-008/3 PU 8 16 9 8 4.5 PU
K20-008/5 8 14 4.5 4 3.5 NB
K20-008/5 PU 8 14 4.5 4 3.5 PU
K20-008/8 8 12 6 5 2.5 NB
K20-008/10 8 15 7 6 4 NB
K20-008/16 8 12 4.5 4 2.5 NB
K20-008/16 PU 8 12 4.5 4 2.5 PU
K20-009/1 9 19 7 6 5.5 NB
K20-009/1 PU 9 19 7 6 5.5 PU
K20-009/2 9 16 4.5 4 4 NB
K20-009/2 PU 9 16 4.5 4 4 PU
