Specifications
Brand Name :
CANYI
Model Number :
CY-HX-JH-001
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
50PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
10,000PCS Per Day
Delivery Time :
15-20 days
Packaging Details :
Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Type :
Lithium Battery Charger Protection Board
Package :
DIP
Shipping by :
DHL\UPS\Fedex\EMS\HK Post
Lead time :
7-12days
Application :
Battery
OEM :
Can be customized here
Description

4S 4.2v li-ion lipo balancer board balncing board full charge battery balance board with free shipping with Equilibrium

The balance board is suitable for the li-ion battery pack without balance functions,so as to equalizing charge lithium battery charge function, make the battery pack each series charge at the same time.

Parameter:

items value
Balance Voltage for each single cell 4.2V
Balance current for each single cell 66mA

Size: L25mm*W22mm

Balancer is just a Auxiliary function, The balancing means when the battery charging,each series battery need with the same voltage.when ONE cell voltage get 4.2V ,the other cells not, the first cell voltage will discharge to wait the other cells rising to the same level.

Note:

battery internal resistance differences within 5 milliohm, voltage within 0.03 V voltage, capacity vary within 50 ma

Cut-off Voltage is according to the BMS setting.

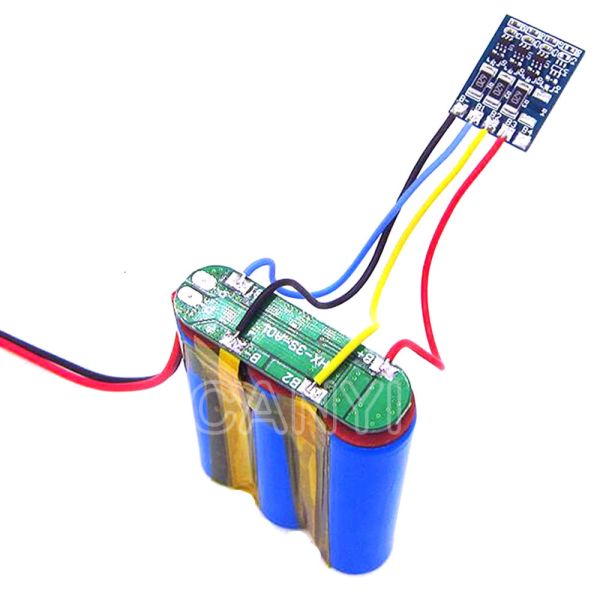

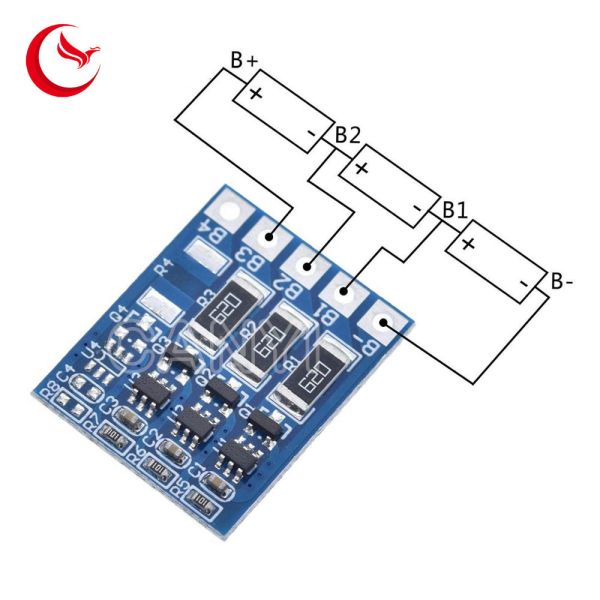

3S Cnnection instruction:

B4+ Without connection

B3+ Connect battery positive;

B2+ Connect the point between battery 1 and battery 2;

B1+ Connect the point between battery 2 and battery 3;

B- Connect battery negative;

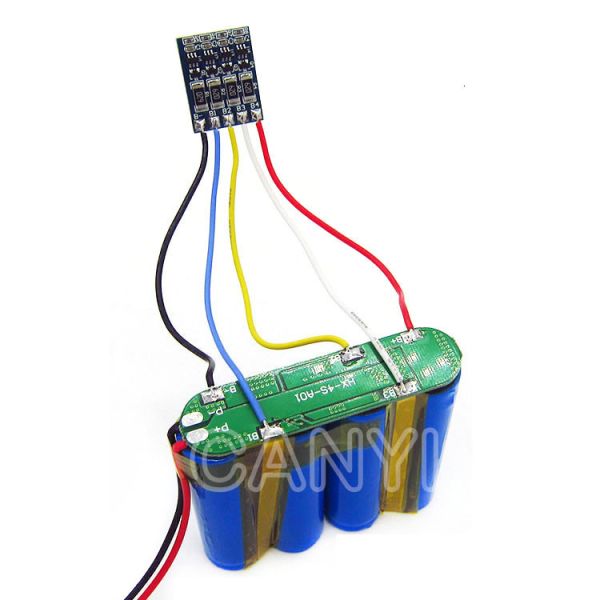

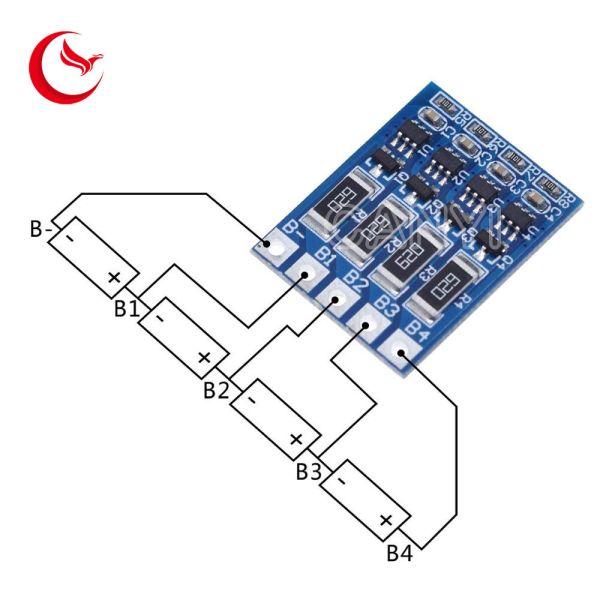

4S Cnnection instruction:

B4+ Connect battery positive;

B3+ Connect the point between battery 1 and battery 2;

B2+ Connect the point between battery 2 and battery 3;

B1+ Connect the point between battery 3 and battery 4

B- Connect battery negative;

4S 4.2v li-ion balancer board li-ion balncing full charge battery balance board

4S 4.2v li-ion balancer board li-ion balncing full charge battery balance board

4S 4.2v li-ion balancer board li-ion balncing full charge battery balance board

4S 4.2v li-ion balancer board li-ion balncing full charge battery balance board

Welcome to customize the circuit board you need.

Contact: Tanky
Email:

tanky@zd_schottkysignaldiode.ecer.com
Wechat: +86 13750005407
Skype: facebook@doublelight.com.cn
Whatsapp: +86 13750005407

OEM & ODM: OEM and ODM order are welcome! We provide customized products and packaging.
We can print your Logo in our products by silk screen printing or laser printing according to your artwork design to meet your special requirements. You can send us the artwork by E-mail. We have a wealth of experience in Logo printing and customized packing.
