Specifications
Brand Name :
CANYI
Model Number :
CY-XL-001
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
500PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
10,000PCS Per Day
Delivery Time :
5-7 days
Packaging Details :
Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Type :
Voltage Regulator
Package :
16 Channel Relay Module
Shipping by :
DHL\UPS\Fedex\EMS\HK Post
Lead time :
5-7days
Application :
Computer
OEM :
Can be customized here
Description

Welcome to customize the circuit board you need.

Contact: Tanky
Email: tanky@zd_schottkysignaldiode.ecer.com
Wechat: +86 13750005407
Skype: facebook@doublelight.com.cn
Whatsapp: +86 13750005407

Information

MODULE FEATURES

  • Voltage range of control signal: the trigger signal is 0-2v at low level;
    the voltage at high level shall not exceed 5V.
  • Adopt industry quality isolation optocoupler, strong anti-interference ability, stable
    performance; trigger current only needs 3mA.
  • All 1-16 channels can be opened / closed, or any channel.
  • Output form: directly connected to AC 220V 10A or dc30v 10A load.

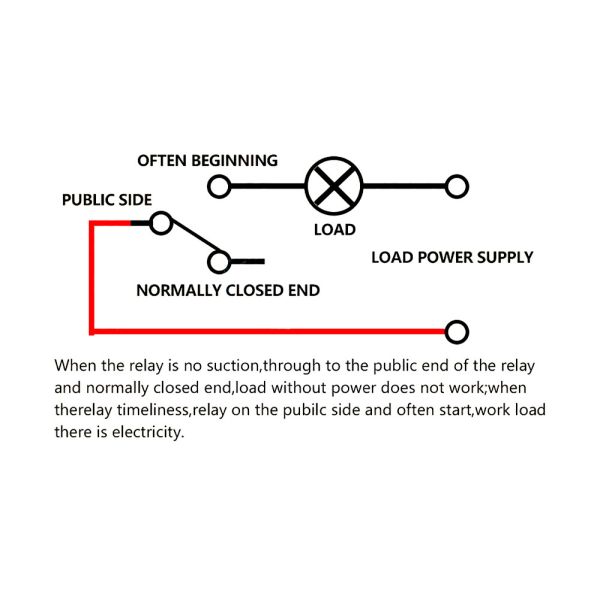

  • Each relay common terminal com is independent which is convenient for users to
    access different signals. Each relay has normally closed and normally open ports.
  • Each relay is equipped with an action indicator light, which is on when it is turned
    on and off when it is turned off.
  • The interface design is humanized. All interfaces can be directly connected through
    the terminal block, which is very convenient.
  • There are 4 fixing bolt holes for easy installation.

ELECTRICAL PARAMETERS

Power supply voltage: 5V 12V (DC)

Power supply current: more than 200mA

Load of each relay: 250V 10A (AC) or 30V 10A (DC)

APPLICATION

  • 12V relay contact capacity 10A 250V, with optocoupler protection. On board power
    module does not need external power supply. I / O port drive low level is effective.
  • It can be used as the development board module of single-chip microcomputer, the
    writer’s electric control, and the PLC extended output

PRODUCT INSTRUCTIONS

The power supply shall meet the use range, DC 12V;

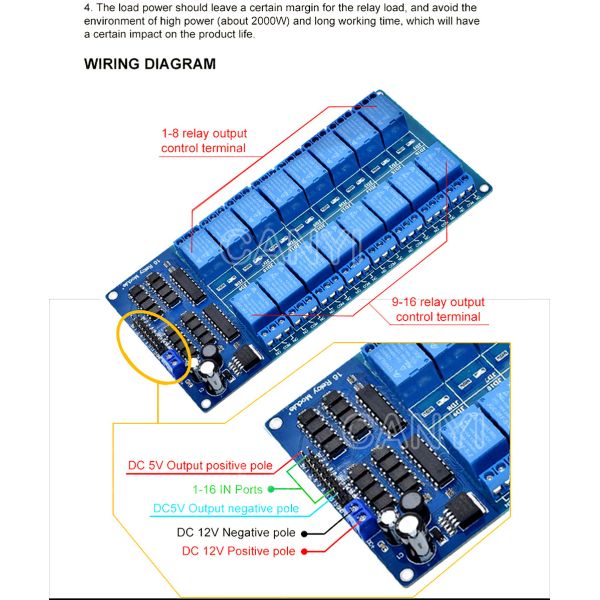

The power supply shall be in accordance with the wiring diagram and shall not be
connected reversely;

The product uses Im2596s step-down chip to slightly heat,which is a normal
phenomenon. The relay works for a long time, which is also a normal phenomenon;
