Specifications
Brand Name :
CANYI
Model Number :
CY-HX-2S-A10
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
500PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
10,000PCS Per Day
Delivery Time :
5-7 days
Packaging Details :
Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Type :
Lithium Battery Charger Protection Board
Package :
DIP
Shipping by :
DHL\UPS\Fedex\EMS\HK Post
Lead time :
7-12days
Application :
Battery
OEM :
Can bu customized here
Description

Properties of the lithium battery protection board:

Model: HX - 2S - A10

Size: 41 * 8 * 2.2 mm

Maximum working current: 8 a

Maximum instantaneous current: 16 a

Static current: less than 10uA

Resistance: less than 300 m Ω

Charging voltage: 8.4 v-9v

Overcharging range: 4.25-4.35 v plus or minus 0.05 v

Over voltage range: 2.5-3.0 v plus or minus 0.05 v

Working temperature: - 40 - + 50 ℃

Storage conditions: - 40 - + 80 ℃

Effective life: more than 50,000 hours

Short circuit protection: to protect and restore must charge

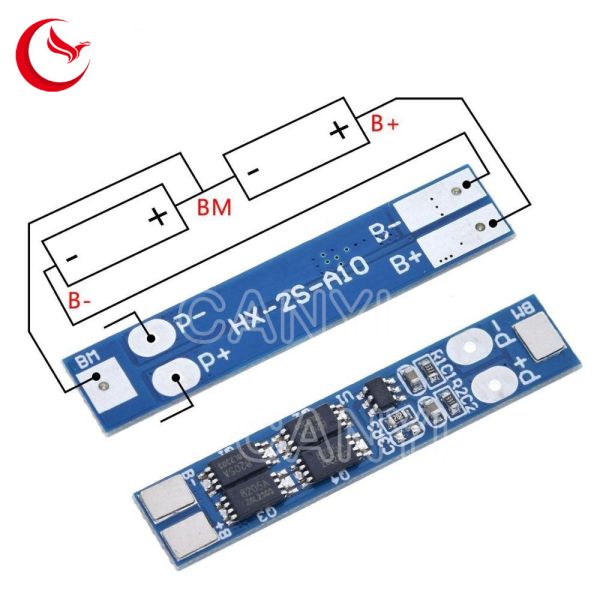

The protection board size and device description;

The protective plate size is 41 * 8 * 2.2 mm

Welding point description:
· B + battery anode;
· B - connect battery negative terminal;
· MMB connect battery 1 to battery 2;
· P + charging/discharge correct poles (charging end/discharge end sharing);

· P - charging/discharge terminal negative terminal (charging end/discharge end sharing).

led pcb assembly 2S 7.4V 8A battery protection Printed Circuit Board electronic circuit protect board

led pcb assembly 2S 7.4V 8A battery protection Printed Circuit Board electronic circuit protect board

Welcome to customize the circuit board you need.

Contact: Tanky
Email: tanky@zd_schottkysignaldiode.ecer.com
Wechat: +86 13750005407
Skype: facebook@doublelight.com.cn
Whatsapp: +86 13750005407

OEM & ODM: OEM and ODM order are welcome! We provide customized products and packaging.
We can print your Logo in our products by silk screen printing or laser printing according to your artwork design to meet your special requirements. You can send us the artwork by E-mail. We have a wealth of experience in Logo printing and customized packing.
