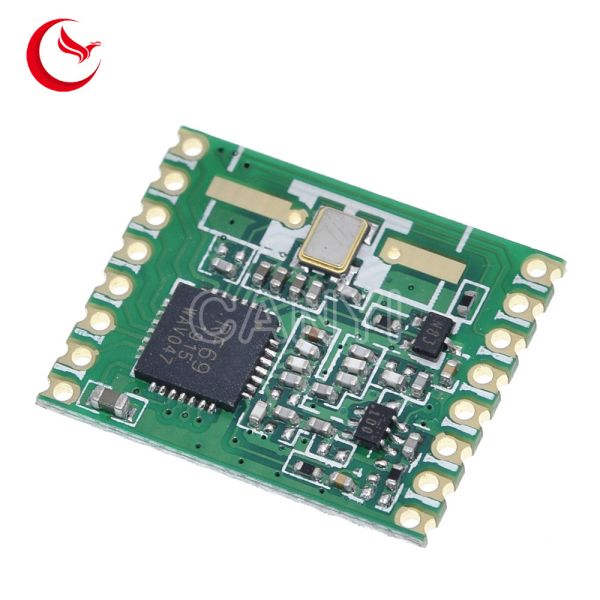

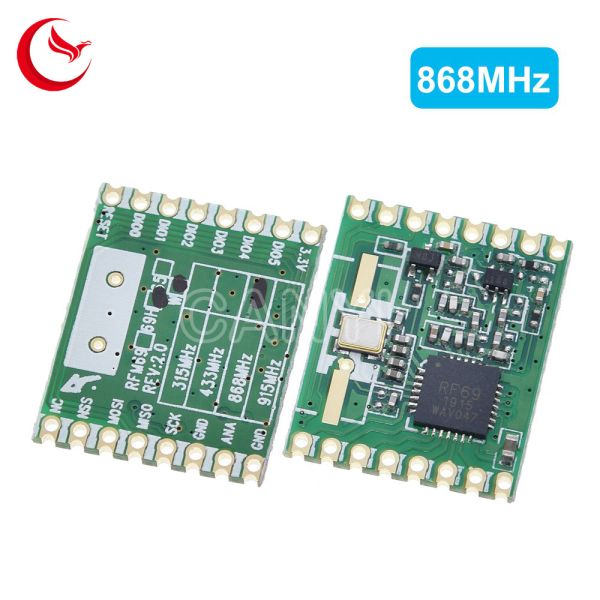

RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module
Specifications
Brand Name :
CANYI
Model Number :
TF wireless transceiver module
Certification :
RoHS
Place of Origin :
China
MOQ :
200PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000PCS Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Application :
Computer
Supply Voltage :
5V
For Arduino STM :
electronic module
Description

Product description:

The RFM69HW is a high-power, highly integrated RF transceiver capable of operation over a wide frequency range, including the 315, 433, 868 and 915 MHz license-free ISM (Industry Scientific and Medical) frequency bands. Its highly integrated architecture allows for a minimum of external components whilst maintaining maximum design flexibility. All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69HW offers the unique advantage of programmable narrow-band and wide- band communication modes without the need to modify external components. The RFM69HW is optimized for low power consumption while offering high RF output power and channelized operation.

RFM69HW 868Mhz 20dBm Hope Rf Wireless Transceiver Module

Specifications:

Operating Frequency: 433/ 868/ 915MHz
Modulation: FSK/ OOK
Transmit Power: 20dBm
Receiving Sensitivity: -120dBm (1.2kb/s in ook)
Transmission Rate: 300Kbps
Emission Current: 120mA
Receiving Current: 16mA
Standby Current: <0.1uA
Data Interface: SPI Interface
Communication Distance: 0-800 meters (1.2kb/s rate, visual distance)
Antenna Impedance: 50Ω
Operating Temperature: -40-85℃
Power Supply: DC 1.8V ~ 3.6V
Size: Approx. 19mm x 15.5mm/ 0.75" x 0.61"
