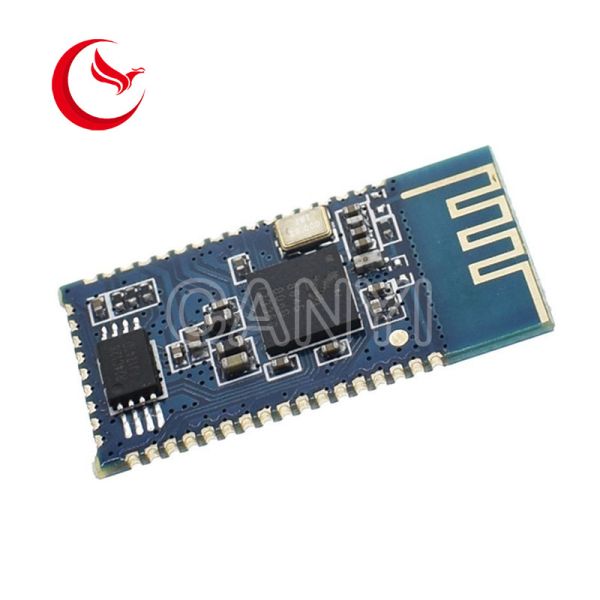

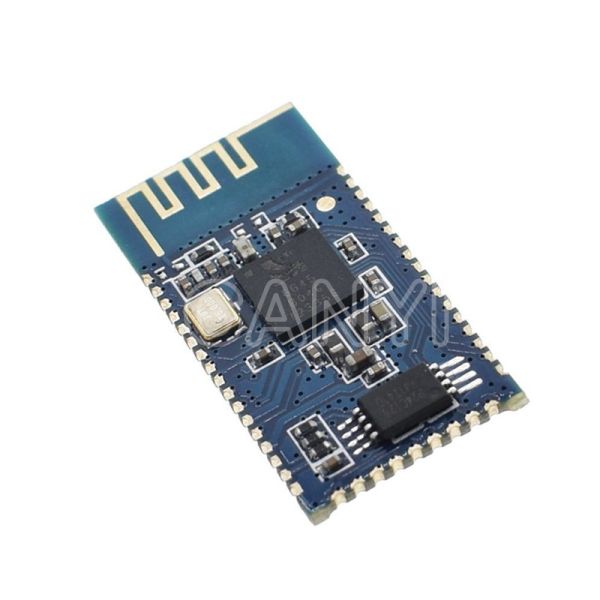

Bluetooth V4.0 APTX Compression Speaker Amplifier Module CSR8645
Bluetooth V4.0 APTX Compression Speaker Amplifier Module CSR8645
Bluetooth V4.0 APTX Compression Speaker Amplifier Module CSR8645
Bluetooth V4.0 APTX Compression Speaker Amplifier Module CSR8645
Bluetooth V4.0 APTX Compression Speaker Amplifier Module CSR8645
Bluetooth V4.0 APTX Compression Speaker Amplifier Module CSR8645
Specifications
Brand Name :
CANYI
Model Number :
CSR8645
Certification :
RoHS
Place of Origin :
Guangdong, China
MOQ :
3000pcs
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000PCS Per Day
Delivery Time :
10-15 days
Packaging Details :
Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Type :
F-3188
Bluetooth Specification :
V4.0
Voltage :
DC3.3V-4.2V
OEM :
can customizable products
Description

APTX high quality lossless compression speaker amplifier low power Bluetooth audio module


Feature

1.Type: F-3188

2.Bluetooth Specification: v4.0

3.Voltage: DC3.3V-4.2V

4.Bluetooth protocol: HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2

5.Working Current: ≤30mA

6.Standby Current: <50uA

7.Temperature range: -40 Celsius ~ +80 Celsius

8.Wireless transmission range: > 10m

9.Transmission power: CLASS1/CLASS2/CLASS3,9dbm(MAX)

10.Sensitivity: -80dBm<0.1%BER

11.Frequency Range: 2.4GHZ ~ 2.480GHZ

12.External Interface: PIO/SPI/I2S/PCM/USB

13.Audio Performance: AAC/MP3/SBC/APTX

14.Audio SNR: ≥75dB

Choose Canyi to get more benefit:

  • Supplying to Changdian, Xinghai, Tuofeng, Leshan, Roma and Anshi
  • Competitive price and save your time
  • Over 10 years work experience technical service team
  • Mix order accepted and free sample

Our fast delivery time can be in just one to two weeks for urgent demands. Providing customers with flexible, safe and efficient logistics services.For a electronic information base component supplier, contact us today.
