Specifications
Brand Name :
CANYI
Model Number :
433MHz 100 Meters Wireless Module
Certification :
RoHS
Place of Origin :
China
MOQ :
200PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000PCS Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Type :
Voltage Regulator
Operating Temperature :
40℃±85℃
Package :
SMD
is customed :
Yes
Application :
TV
Description

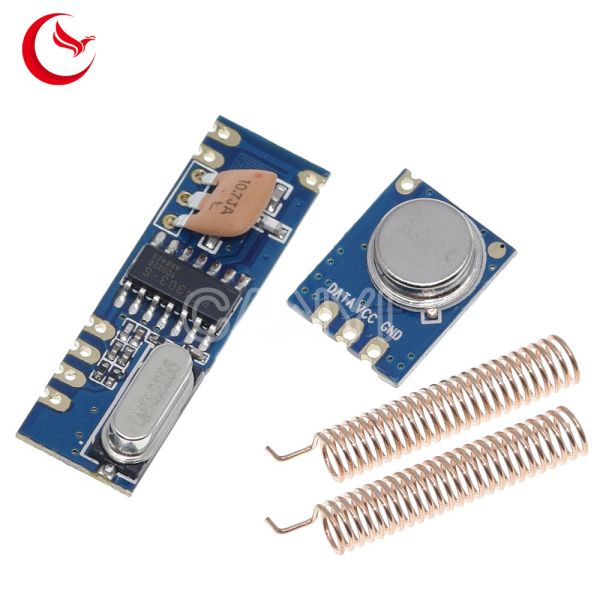

1 set 433MHz 100 meters wireless module pcb assemblies kit ask transmitter stx882 receiver srx882
Brand Name : CANYI
Condition : New
Type : Voltage Regulator
Model Number : 433MHz 100 Meters Wireless Module
Application : TV
Operating Temperature : -40℃±85℃
Package : SMD
is customized : Yes

PRODUCT INFORMATION
Introduction
STx882 is a ASK transmitter module with small size,ultra high power,
low harmonics.With high stability, it can be achieved at 50mW power
when the voltage is 3.6V, it is the maximum transmitter power module

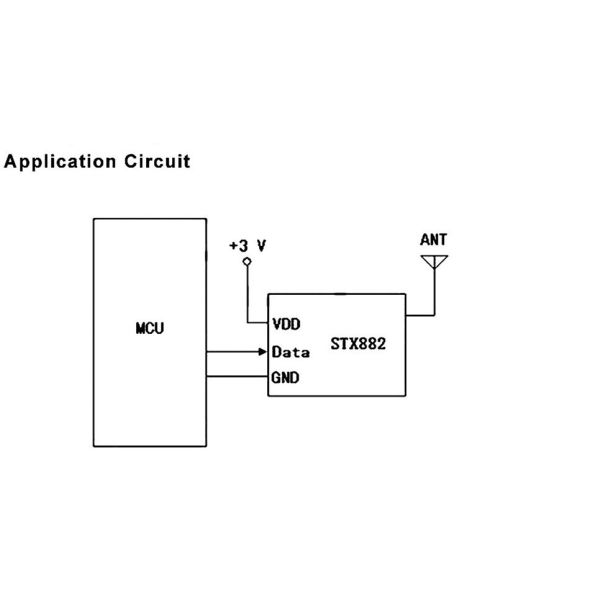

under the the same voltage in the market.Data port of the module can
be connected to the microcontroller directly,make wireless product
development and production more convenient.

Wireless Module 433MHz 100 Meters Prototype Pcb Assembly SRX882

Wireless Module 433MHz 100 Meters Prototype Pcb Assembly SRX882

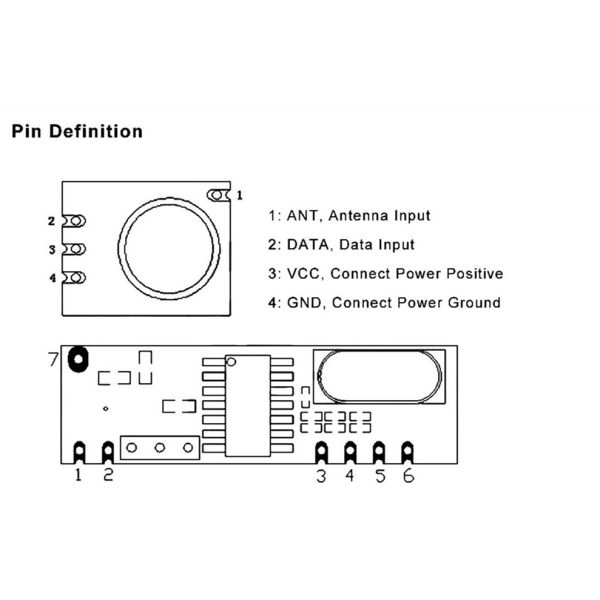

1:ANT,Connect 50 Ohm Antenna
2:GND,Connect Power Ground
3:vcc,Connect Power Positive
4: CS,Modules Enable Pin,Floating or Connected to High
Level Work,Sleep When Connect Ground
5:DATA,Data Input
6:GND,Connect Power Ground
7:ANT,Connect 50 Ohm Antenna

Wireless Module 433MHz 100 Meters Prototype Pcb Assembly SRX882

Wireless Module 433MHz 100 Meters Prototype Pcb Assembly SRX882
