Specifications
Brand Name :
CANYI
Model Number :
XL7015
Certification :
RoHS
Place of Origin :
China
MOQ :
200PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000PCS Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Application :
Computer
Operating Temperature :
Operating Temperature : -40℃±85℃
Description

Brand Name : Canyi
Origin : CN(Origin)
Condition : New
Type : Voltage Regulator
Model Number : XL7015
Application : Computer
Operating Temperature : -40℃±85℃
Supply Voltage : 5V-80V
Package : DIY KIT
is customized : Yes
For Arduino STM : electronic module

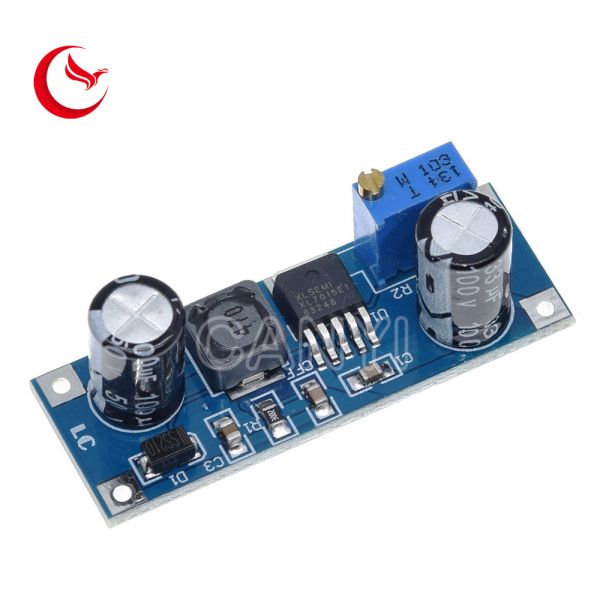

XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.


1. 5V to 80V wide input voltage range;

2. The output voltage is adjustable from 5V to 20V;

3. The minimum pressure drop 1V;

4. The maximum switching current of 0.8A;

5. Recommended output power less than 7W;

6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection;

7. The excellent linearity and load regulation;

Hardware introduction and notes

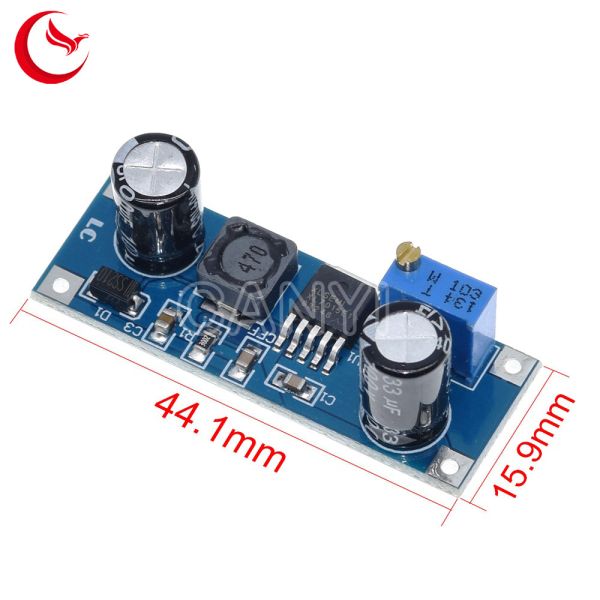

Board size: 16mm * 44mm;

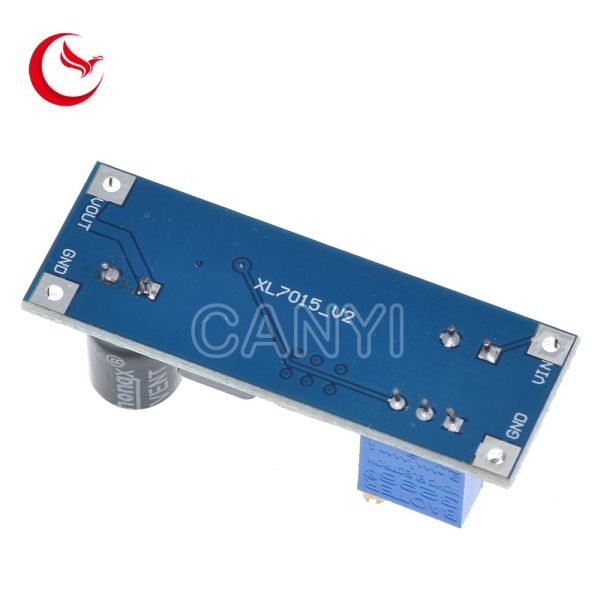

Wiring
1. VIN: input voltage (5V-80V);

2. GND: the input voltage ground terminal;

3. VOUT: Output voltage terminal (5V-20V);

4. GND: output voltage of the ground terminal;

XL7015 DC-DC DC Converter Step Down Module 5V-80V Wide Voltage Input 7005A LM2596XL7015 DC-DC DC Converter Step Down Module 5V-80V Wide Voltage Input 7005A LM2596XL7015 DC-DC DC Converter Step Down Module 5V-80V Wide Voltage Input 7005A LM2596
