2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
Specifications
Brand Name :
CANYI
Model Number :
MX1919
Certification :
RoHS
Place of Origin :
China
MOQ :
200PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000PCS Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Application :
Computer
Supply Voltage :
2V-10V
For Arduino STM :
electronic module
Model Number : :
2.5A Dual motor Driver
Description

MH-DM25 2.5A Dual H-bridge brushed DC motor Drive Controller Board Module kit for Arduino smart car robot Low power consumption

Product introduction:

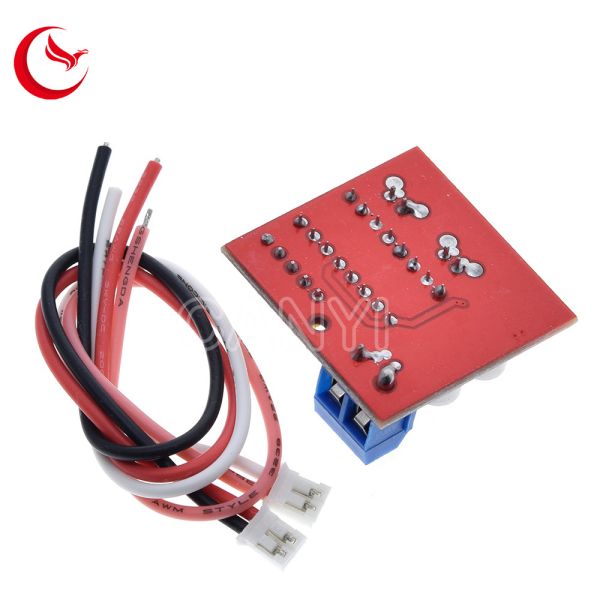

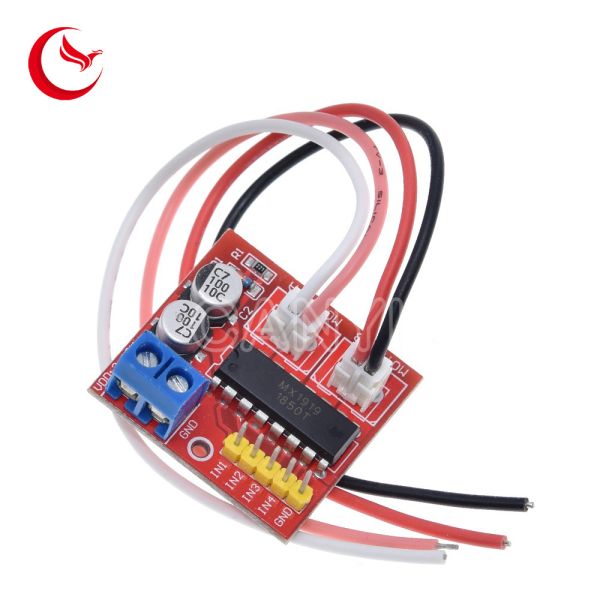

2.5A power-enhanced motor drive module with silicone wire, pin header, terminal. The power supply voltage is 2V~10V, which can drive two DC motors or one 4-wire 2-phase stepping motor at the same time. It can realize the function of forward and reverse and speed regulation, with thermal protection and automatic recovery.

Product parameters:

1. Two-way H-bridge motor drive, can drive two DC motors or one 4-wire two-phase stepper motor at the same time;
2. Module supply voltage 2V-10V;
3. Signal input voltage is 1.8-7V;
4. Single working current 2.5A, low standby current (less than 0.1uA);
5. Built-in anti-common state conduction circuit, when the input terminal is suspended, the motor will not malfunction;
6. Built-in overheat protection circuit (TSD) with hysteresis effect, no need to worry about motor stall;

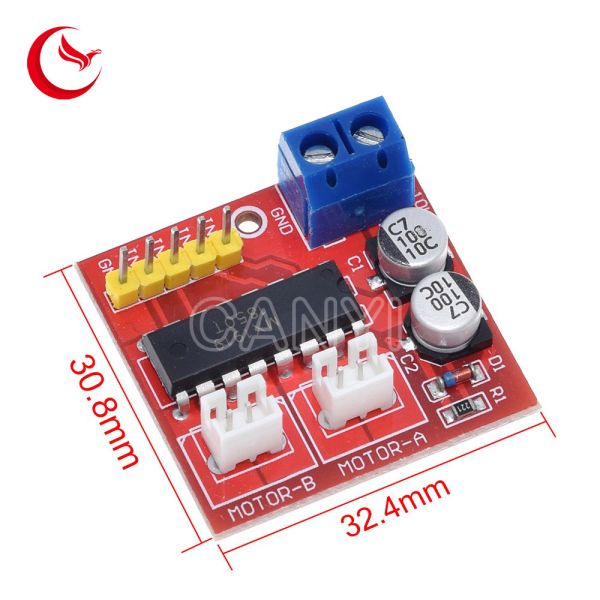

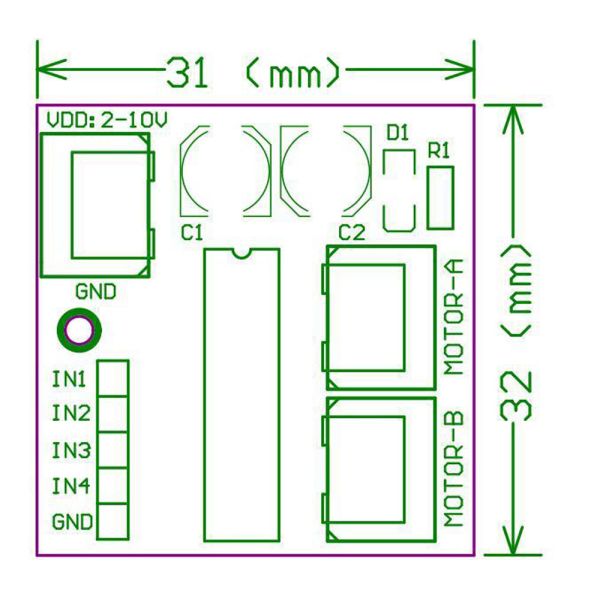

7. Product size: 31*32*5mm (length, width and height), small size, suitable for assembly and vehicle;
8. Mounting hole diameter: 2 mm.
9. Weight: 11g

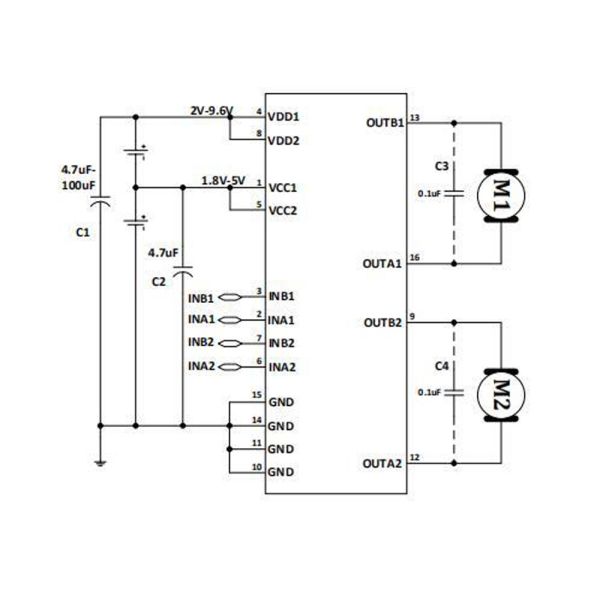

INx connected to the MCU I / O port, MOTOR-A and MOTOR-B is connected to the motor.

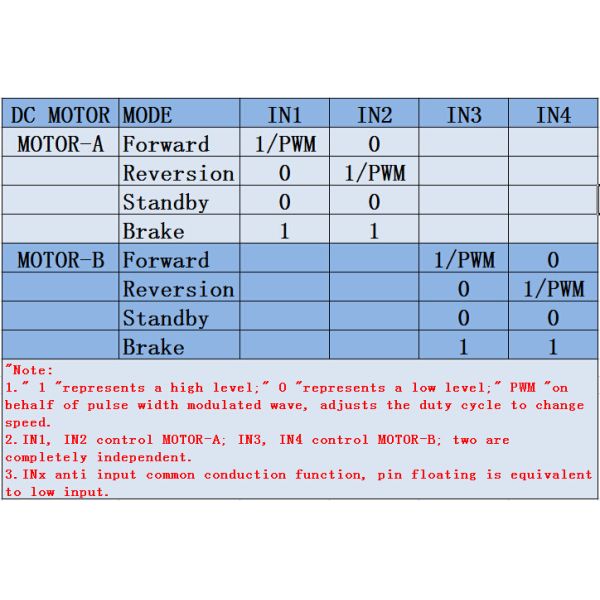

DC motor drive logic truth table:
2.5A 2V-10V Brushed DC Motor Drive Controller Board MX19192.5A 2V-10V Brushed DC Motor Drive Controller Board MX19192.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919

Precautions:

1. The connection between the positive and negative terminals of the power supply will definitely cause damage to the circuit.

2. The output is short-circuited to the ground or short-circuited at the output, and the chip is thermally protected. However, if the voltage is close to or exceeds 10V and the peak current greatly exceeds 2.5A, the chip will burn out.

2.5A 2V-10V Brushed DC Motor Drive Controller Board MX19192.5A 2V-10V Brushed DC Motor Drive Controller Board MX19192.5A 2V-10V Brushed DC Motor Drive Controller Board MX19192.5A 2V-10V Brushed DC Motor Drive Controller Board MX1919
