SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
Specifications
Brand Name :
CANYI
Model Number :
egs002 eg8010
Certification :
RoHS
Place of Origin :
China
MOQ :
200PCS
Price :
Negotiated
Payment Terms :
Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability :
15,000,000PCS Per Day
Delivery Time :
1 - 2 Weeks
Packaging Details :
Boxed
Application :
Computer
Supply Voltage :
5V
For Arduino STM :
electronic module
Description

Introduction:


EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer Boost architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial LCD driver module 1602 functions.
SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010

Features:

5V single power supply

4 pin set of pure sine wave output frequency:
50Hz pure sine wave of fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz
pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable

Unipolar and bipolar modulation

Comes with deadband control, pin 4 dead time:
300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time

External 12MHz crystal oscillator

PWM carrier frequency 23.4KHz

Voltage, current, real time temperature feedback

Overvoltage, undervoltage, overcurrent and overheating protection

Soft-start mode pin setting the response time of 1S

Serial communication to set the output voltage, frequency and other parameters

External Serial LCD Module 1602 displays the inverter
voltage, frequency, temperature and current information



Applications:

Single phase pure sine wave inverter

PV Inverter

Wind power inverter

Uninterruptible Power Supply UPS System

Digital generator system

IF power

Single-phase motor speed controller

Single-phase inverter

Sine wave dimmer

Sine wave regulator

Sine wave generator
Package included:

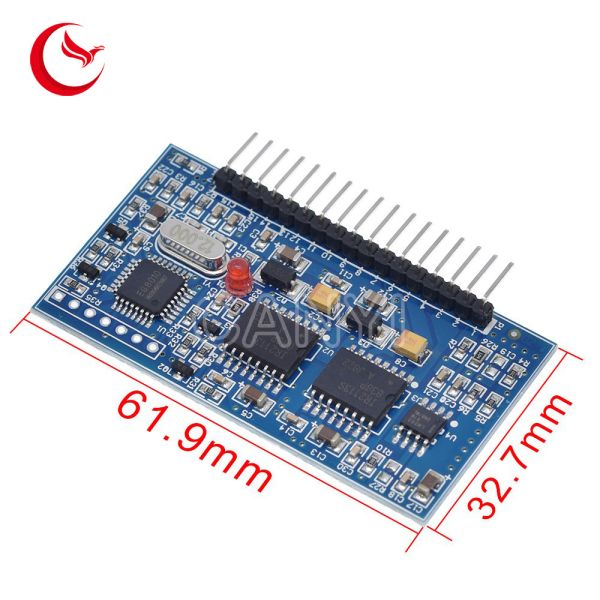

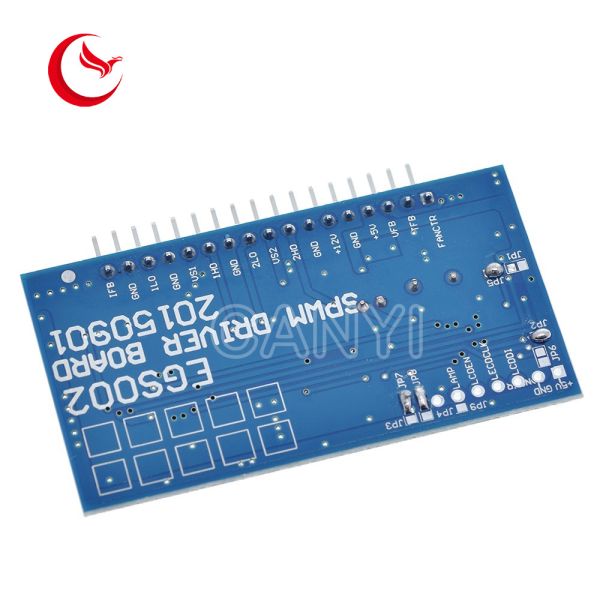

  • 1 PCS x Pure Sine Wave Inverter Driver Board EGS002 "EG8010 + IR2113" Driver Module
  • SPWM EGS002 Sine Wave Inverter Pcb Board 12Mhz Crystal Oscillator Eg8010
