8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker
8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker
8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker
8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker
8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker
8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker
Specifications
Certification :
ISO, CE and SGS
MOQ :
1unit
Model Number :

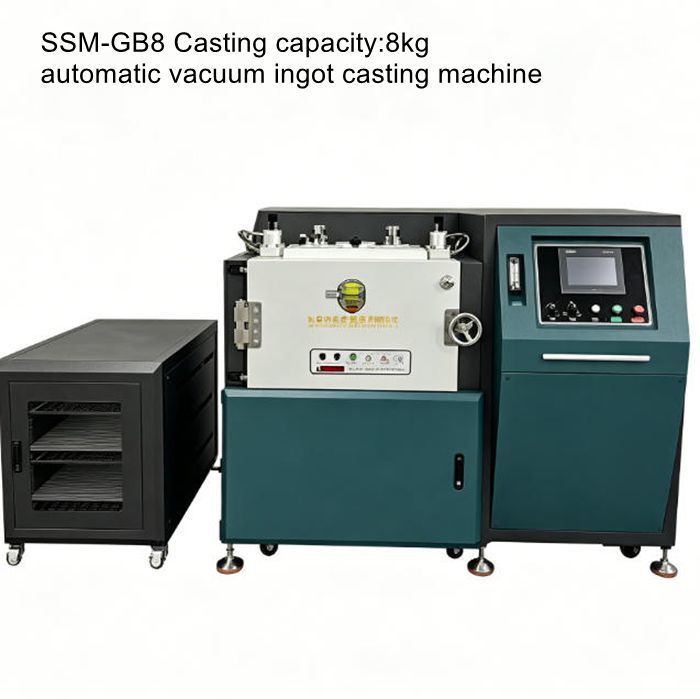

SSM-GB8 automatic vacuum ingot casting machine
Casting Cycle Time :
15minutes per batch
Casting Capacity :
8kg (Gold equivalent); supports 4×1kg bars or 8×500g bars per batch
Control system :
Digital/PLC control with temperature monitoring
Power Supply :
380V, 3 Phase
Place of Origin :
Shenzhen, China
Applicable Materials :
Gold, K-gold, Silver, Copper & related alloys
other models :
from 1kg up to 60kg (including 1kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to meet different production demands
Rated Power :
80KW
Brand Name :
OEM & ODM
Furnace type :
High Frequency
Other service :
Customizable, OEM & ODM available, one-stop solutions provided
Supply Ability :
100,00units per month
Delivery Time :
10-15 working days
Melting temperature :
maximum up to 1550℃
Packaging Details :
Outer packing: Wooden case
Price :
negotiable
Payment Terms :
T/T,L/C
Product name :
Vacuum Gold Bar Casting Machine
Energy efficiency :
Higher energy efficiency than traditional melting furnaces
Description

8kg High-Capacity Automatic Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker

1. Product Overview

The SSM-GB8 8kg Automatic Vacuum Gold Bar Casting Machine is a high-throughput model in the SSM-GB series, purpose-built for medium-to-large scale precious metal producers. Operating under high vacuum (10⁻²~10⁻³ mbar) with optional argon or nitrogen inert gas protection, it eliminates oxidation, surface ripples, and internal pores, producing mirror-grade gold, silver, K-gold, and copper ingots that meet LBMA trading standards.
The SSM-GB series offers flexible capacity options from 1kg up to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg models) to match production scales from small workshops to industrial refineries. The SSM-GB8 supports 8kg gold batches (8×1kg bars) in just 15 minutes, with a precious metal loss rate below 0.1% and a finished product qualification rate exceeding 99%, making it an ideal solution for scaling up production from traditional manual/semi-automatic casting methods.

2. Concise Working Principle

This machine adopts vacuum induction melting + pressure casting technology:
  1. Evacuate the chamber to form a high-vacuum environment, with optional inert gas backfilling for full oxygen isolation.
  2. The 80KW induction heating system rapidly melts precious metals evenly up to 1550℃.
  3. Automatic crucible tilting and pressure difference drive liquid metal to fill precision molds completely.

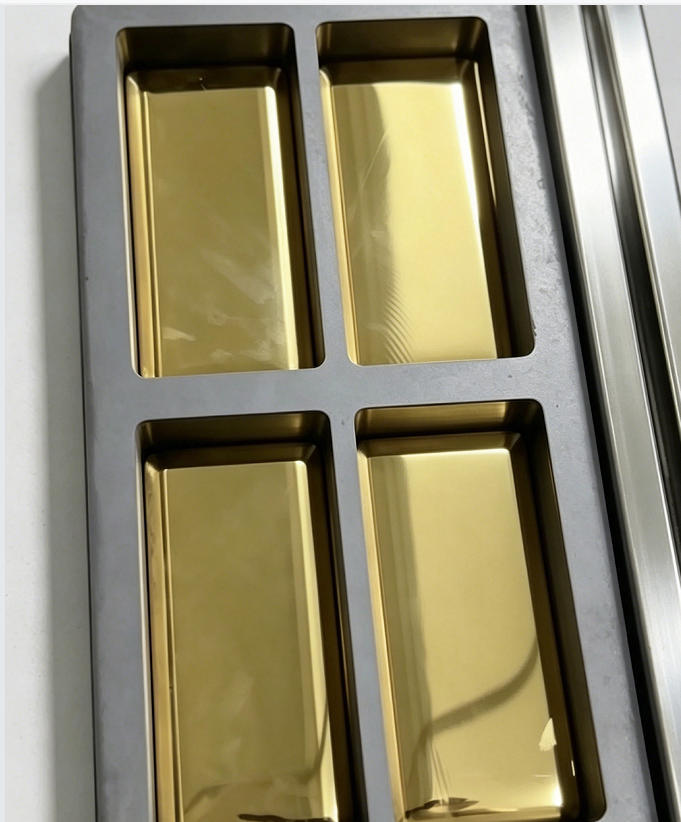

  4. Ingots solidify in an oxygen-free sealed space, resulting in bright, oxide-free products ready for use after demolding.

8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker

3. Product Features & Advantages

  • Full Series Flexible Capacity Options: The SSM-GB series provides models with casting capacities from 1kg to 60kg, meeting production needs from small-batch to large-scale industrial manufacturing.
  • Ultra-Low Metal Loss: Vacuum + inert gas protection controls precious metal loss below 0.1%, maximizing raw material yield.
  • LBMA-Compliant Finished Products: Eliminates pores and deformation, delivering mirror-grade ingots with a qualification rate ≥99%.
  • PLC Intelligent Control: One-key start/stop, adjustable temperature/vacuum/time, fault self-diagnosis, and emergency stop for safe, easy operation.
  • Efficient Heating & Cooling: 80KW induction heating accelerates melting, paired with a water-cooled vacuum chamber to prevent overheating and speed crystallization.
  • High Throughput: Supports 8kg gold batches (8×1kg bars) in 15 minutes, significantly improving production efficiency for medium-to-large scale orders.
  • Low Labor Dependency: Simple operation logic allows ordinary workers to master the process after short training, reducing labor costs.
  • Customizable Solutions: Supports custom molds for standard bars, special-shaped ingots, and craft embossed products; equipment specifications can also be adjusted for specific needs.
  • Safe & Clean Operation: Fully sealed design with no open flame, keeping the ambient temperature near room temperature and eliminating safety hazards.

8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker

4. Technical Parameters

Item SSM-GB8 Automatic Gold Bar Vacuum Casting Machine
Model No. SSM-GB8
Power Supply 380V, 50/60Hz, 3 Phases
Rated Power 80KW
Max Working Temperature 1550℃
Casting Capacity 8kg (Gold equivalent); supports 8×1kg bars per batch
Casting Cycle Time 15 minutes per batch
Applicable Materials Gold, K-gold, Silver, Copper & related alloys
Machine Dimensions 1880×850×1130mm (188×85×113cm)
Net Weight Approx. 680kg
Above parameters are for reference only. Partial specifications can be customized. The SSM-GB series also offers models with casting capacities from 1kg up to 60kg (including 1kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to meet different production demands. Please contact our professional customer service for detailed information.

5. FAQ (Frequently Asked Questions)

Q1: What metals can this machine process?
A1: It is suitable for gold, K-gold, silver, copper, and their various alloys, meeting the production needs of the precious metal processing industry.
Q2: What protective gases are supported?
A2: The machine is compatible with high-purity argon and nitrogen, which can be selected according to your production budget and process requirements.
Q3: What is the metal loss rate during casting?
A3: With vacuum and inert gas protection, the precious metal loss rate is controlled within 0.1%, far lower than traditional open casting methods.
Q4: Do you have other capacity models besides SSM-GB8?
A4: Yes. The SSM-GB series includes multiple models with casting capacities from 1kg to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to adapt to different production scales.
Q5: Can I customize the size and shape of ingots?
A5: Yes. We provide professional mold customization services to produce standard bars, special-shaped ingots, gold beans, and craft embossed products as required.
Q6: Is operation difficult for ordinary workers?
A6: No. The PLC touch control system has preset programs, and workers can master daily operation after simple training without professional technical backgrounds.

Why Choose Sansongmelt?

8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker

SanSong Melt is a professional manufacturer focusing on R&D, production and sales of precious metal processing equipment. We deliver reliable products and thoughtful services to clients worldwide for long-term cooperation:
  1. Custom One-Stop Solutions:We provide tailored melting and casting solutions covering equipment selection, mold customization and professional process guidance.
  2. 2-Year Extended Warranty:We offer an industry-leading 2-year warranty, one year longer than most competitors to fully protect your investment.
  3. 24/7 After-sales Support:Our professional team is online around the clock to solve technical and operational problems and reduce production downtime.
  4. Factory Direct Price:As direct manufacturer, we cut out middlemen and offer cost-effective factory prices for all equipment.
  5. Authoritative Global Certifications:All machines pass ISO, CE and SGS certifications, complying with international quality and safety standards.
  6. Professional R&D Team:Our experienced R&D experts keep optimizing products to provide advanced and practical technical solutions.

8kg High Capacity Auto Vacuum Gold Bar Casting Machine 1kg-60kg Customizable Gold Bar Maker

Contact Us

If you have any questions about equipment parameters, customized solutions, quotations, technical support or cooperation matters, please feel free to contact our professional sales team. We provide one-stop customized precious metal processing solutions for global customers and reply to your inquiries in the shortest time.
