60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries
Specifications
Brand Name :
OEM & ODM
Price :
negotiable
Certification :
ISO, CE and SGS
Casting Cycle Time :
20 -25minutes per batch
Casting Capacity :
60kg (Gold equivalent)
Control system :
Digital/PLC control with temperature monitoring
Power Supply :
380V, 3 Phase
Applicable Materials :
Gold, K-gold, Silver, Copper & related alloys
other models :
from 1kg up to 60kg (including 1kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to meet different production demands
MOQ :
1unit
Rated Power :
90KW
Place of Origin :
Shenzhen, China
Furnacetype :
High frequency
Other service :
Customizable, OEM & ODM available, one-stop solutions provided
Supply Ability :
100,00units per month
Model Number :
SSM-GB60
Packaging Details :
Outer packing: Wooden case
Melting temperature :
maximum up to 1550℃
Payment Terms :
T/T,L/C
Product name :
Vacuum Gold Bar Casting Machine
Delivery Time :
10-15 working days
Energy efficiency :
Higher energy efficiency than traditional melting furnaces
Description
60kg LBMA-Grade Industrial Vacuum Gold Bar Casting Machine For Large-Scale Precious Metal Refineries

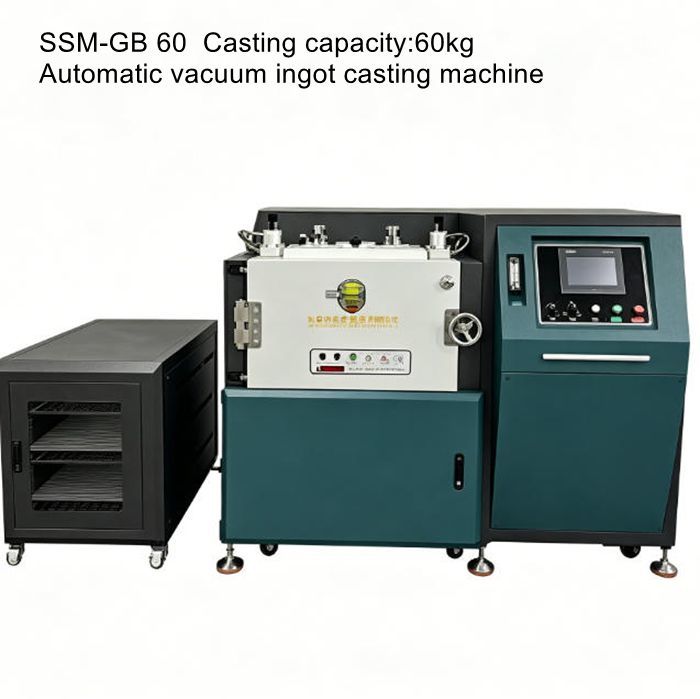

SSM-GB 60 Automatic Vacuum Ingot Casting Machine (SSM-GB Series)

1. Product Overview

The SSM-GB60 60kg Industrial Vacuum Gold Bar Casting Machine is the highest-capacity model in the SSM-GB series, purpose-built for large-scale precious metal refineries, bullion foundries, and high-volume industrial producers. Operating under high vacuum (10⁻²~10⁻³ mbar) with optional argon/nitrogen inert gas protection, it eliminates oxidation, surface ripples, and internal porosity, producing mirror-grade gold, silver, K-gold, and copper ingots that fully meet LBMA (London Bullion Market Association) trading standards.

60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries

Beyond standard bullion production, the SSM-GB60 is also ideal for industrial precious metal manufacturing, high-volume silver ingot production, and large-scale metal recycling and refining operations. The SSM-GB series offers flexible capacity options from 1kg up to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg models) to match production scales from small workshops to large industrial facilities. The SSM-GB60 supports 60kg gold batches (or 30kg silver batches) in just 30 minutes, with a precious metal loss rate below 0.1% and a finished product qualification rate exceeding 99%, making it the ideal solution for scaling up high-volume production from traditional manual/semi-automatic casting methods.

2. Concise Working Principle

This machine adopts vacuum induction melting + pressure casting technology:
  1. Evacuate the chamber to form a high-vacuum environment, with optional inert gas backfilling for full oxygen isolation.
  2. The 90KW induction heating system rapidly melts precious metals evenly up to 1550℃.
  3. Automatic crucible tilting and pressure difference drive liquid metal to fill precision molds completely.
  4. Ingots solidify in an oxygen-free sealed space, resulting in bright, oxide-free products ready for use after demolding.

3. Product Features & Advantages

  • Full Series Flexible Capacity Options: The SSM-GB series provides models with casting capacities from 1kg to 60kg, meeting production needs from small-batch to large-scale industrial manufacturing.
  • Ultra-Low Metal Loss: Vacuum + inert gas protection controls precious metal loss below 0.1%, maximizing raw material yield and reducing production costs.
  • LBMA-Compliant Finished Products: Eliminates pores and deformation, delivering mirror-grade ingots with a qualification rate ≥99%, suitable for international bullion trading.
  • Dual-Metal Compatibility: Supports both 60kg gold batches and 30kg silver batches, adapting to diverse production requirements for different precious metals.
  • PLC Intelligent Control: One-key start/stop, adjustable temperature/vacuum/time, fault self-diagnosis, and emergency stop for safe, easy operation.
  • High-Power Efficient Heating: 90KW induction heating accelerates melting, paired with a water-cooled vacuum chamber to prevent overheating and speed crystallization.
  • High Throughput for Large-Scale Production: Handles 60kg gold batches (or 30kg silver batches) in 30 minutes, designed to meet the demands of high-volume industrial foundries and refineries.
  • Low Labor Dependency: Simple operation logic allows ordinary workers to master the process after short training, reducing labor costs.
  • Customizable Solutions: Supports custom molds for standard bars, special-shaped ingots, and craft embossed products; equipment specifications can also be adjusted for specific needs.
  • Safe & Clean Operation: Fully sealed design with no open flame, keeping the ambient temperature near room temperature and eliminating safety hazards.

4. Technical Parameters

60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries

Item SSM-GB60 Automatic Gold Bar Vacuum Casting Machine
Model No. SSM-GB60
Power Supply 380V, 50/60Hz, 3 Phases
Rated Power 90KW
Max Working Temperature 1550℃
Casting Capacity 60kg (Gold equivalent) / 30kg (Silver equivalent)
Casting Cycle Time 30 minutes per batch
Applicable Materials Gold, K-gold, Silver, Copper & related alloys
Machine Dimensions 1150×680×880mm
Net Weight Approx. 700kg
Above parameters are for reference only. Partial specifications can be customized. The SSM-GB series also offers models with casting capacities from 1kg up to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg) to meet different production demands. Please contact our professional customer service for detailed information.

5. FAQ (Frequently Asked Questions)

Q1: What metals can this machine process?
A1: It is suitable for gold, K-gold, silver, copper, and their various alloys, meeting the production needs of the precious metal processing industry.
Q2: What protective gases are supported?
A2: The machine is compatible with high-purity argon and nitrogen, which can be selected according to your production budget and process requirements.
Q3: What is the metal loss rate during casting?
A3: With vacuum and inert gas protection, the precious metal loss rate is controlled within 0.1%, far lower than traditional open casting methods.
Q4: Can this machine handle both gold and silver production?
A4: Yes. The SSM-GB60 supports both 60kg gold batches and 30kg silver batches, making it versatile for mixed precious metal production lines.
Q5: Do you have other capacity models besides SSM-GB60?
A5: Yes. The SSM-GB series includes multiple models with casting capacities from 1kg to 60kg (including 1kg, 2kg, 4kg, 8kg, 12.5kg, 15kg, 30kg, and 60kg) to adapt to different production scales.
Q6: Can I customize the size and shape of ingots?
A6: Yes. We provide professional mold customization services to produce standard bars, special-shaped ingots, gold beans, and craft embossed products as required.
Q7: Is operation difficult for ordinary workers?
A7: No. The PLC touch control system has preset programs, and workers can master daily operation after simple training without professional technical backgrounds.
60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries

Why Choose Sansongmelt?

60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries

SanSong Melt is a specialized manufacturer of high-performance precious metal processing equipment, trusted by large refineries, industrial foundries, and bullion producers worldwide for reliable, production-ready solutions. Here’s why our clients choose us for their high-capacity casting needs:
  1. Refinery-Tailored End-to-End Support: We don’t just sell machines—we design custom casting workflows, including mold engineering, process optimization, and on-site training, to align with your specific high-volume production scale and quality standards.
  2. Long-Term Investment Protection: Every SSM-GB series machine comes with a 2-year full warranty, plus optional extended maintenance plans, to minimize unexpected downtime and repair costs for your continuous production lines.
  3. Round-the-Clock Global Technical Support: Our multilingual technical support team is available 24/7 to resolve operational issues, troubleshoot system parameters, and provide remote guidance, so your high-volume production line never stops for long.
  4. Transparent Pricing & Fast, Reliable Delivery: As a direct manufacturer, we eliminate third-party markups to offer competitive, factory-direct pricing, with in-stock standard models and fast lead times to meet your large-scale project schedules.
  5. Globally Certified Industrial-Grade Quality: All our machines are ISO, CE, and SGS certified, built to meet strict international safety and quality regulations, ensuring compliance for export and industrial use across global markets.
  6. Continuous R&D for Evolving Production Needs: Our in-house R&D team regularly updates the SSM-GB series with the latest vacuum and induction heating technology, so your equipment stays efficient and competitive as your production volume grows.

60kg LBMA Grade Industrial Vacuum Gold Bar Casting Machine For Large Scale Precious Metal Refineries

Ready to Scale Your High-Volume Precious Metal Casting Process?

If you’re ready to upgrade to a reliable, high-capacity vacuum gold bar machine for large-scale production, or want to discuss custom solutions tailored to your operations, our team is here to help:
  • Get a detailed quotation customized to your high-volume requirements
  • Access full technical specifications and CAD drawings for integration into your production line
  • Schedule a virtual demo or on-site factory visit to see the machine in action
Contact us today to learn more about the SSM-GB series and find the perfect solution for your production goals.
