High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
Specifications
MOQ :
1 Set
Price :
US $1,500-2,800 / S
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXGKC
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Circuit Breaker Analyzer
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
0-100Kg
Power Source :
AC220V
Oil Cylinder Position :
Without
Time Test :
6 Channels (12 Channels for Option)
Data Storage :
100 Groups
Test Range :
0.1ms~999.99ms
Application Scenarios 1 :
Electrical Testing
Application Scenarios 2 :
Switchgear Testing
Application Scenarios 3 :
Power System Maintenanc
Transport Package :
Plywood Case
Specification :
ISO9001 SGS
Trademark :
Sansion
Origin :
China
HS Code :
9030820000
Production Capacity :
100 Units/Month
售后服务 :
Onsite and Video Call Remote Guidance
保修期 :
2 Years Free Warranty Long Life Service
Description

High Voltage Equipment HV Switch Dynamic Characteristic Tester Circuit Breaker Test Set

General Information:
control devices in power systems. Given their widespread deployment and complex operational requirements, their reliability directly impacts not only their own performance but also the stability of the entire grid. Traditional dynamic characteristic testing methods suffer from complex operation and low accuracy. To address these challenges, we developed the GKC series High-Voltage Circuit Breaker Characteristic Tester.

Features:
1.Wide Compatibility: Suitable for mechanical characteristic testing of all types of SF6 switches, GIS, vacuum switches, and oil circuit breakers.
2.Strong Anti-Interference: Accurate measurements even near 500 kV live busbars in substations.
3.Universal Speed Sensor (Optional): Linear travel or rotary speed sensors for easy installation.
4.One-Time Measurement: Obtains all mechanical characteristic data and waveform graphs in a single operation.
5.Data Storage: Onboard memory with real-time clock for recording test dates and times.
6.Large LCD Screen: High-visibility, backlit, wide-temperature-range display with adjustable contrast and power-off memory.
7.User-Friendly Interface: Chinese menu operation, built-in printer for instant reports.
8.PC Connectivity (Optional): Data analysis software for generating test reports via dot-matrix, laser, or inkjet printers, enabling computerized field testing.
Technical Parameter:
1. Operating Environment
1.1 Input Power: 220V±10%, 50Hz±10%
1.2 Atmospheric Pressure: 86~106 kPa
1.3 Temperature: -10~40ºC
1.4 Humidity: ≤80% RH
2. Safety Performance
2.1 Insulation Resistance: >2 MΩ
2.2 Dielectric Strength: Withstand 1.5 kV power-to-shell AC voltage for 1 minute, no flashover or arcing.
3. Basic Parameters
3.1 Time:
Range: 20,000.0 ms
Minimum Resolution: 0.01 ms
Error:
a. 200 ms range: 0.01 ms ±2 digits
b. 2,000 ms range: 0.1 ms ±2 digits
c. 20,000 ms range: 1 ms ±2 digits
3.2 Speed:
Range: 20.00 m/s
Resolution: 0.01 m/s
Error:
a. 0-2 m/s: ±0.1 m/s ±1 digit
b. Above 2 m/s: ±0.2 m/s ±1 digit
3.3 Travel:

Range Resolution Error
Vacuum Circuit Breaker 50.0 mm 0.1 mm 0.1 mm ±1 digit
SF6 Circuit Breaker 300.0 mm 1 mm
Minimum Oil Circuit Breaker 600.0 mm
3.4 Current:
Range: 20.00 A
Resolution: 0.01 A
3.5 Output Power Supply: DC 0~300 V digitally adjustable / 20 A (instantaneous operation), Resolution 1 V.
Maximum speed 20m/s,resolution:0.01m/s
Measurement accuracy ±1.0% reading ±0.05
Travel Measurement Range 6mm~280mm(Extendable to 6~700mm upon request)
Minimum Travel Resolution 0.1mm,Distance Measurement Accuracy:±1.0% reading ±0.1mm
Time Measurement Range 10ms~15s
Time Resolution 0.1ms;Time Measurement Accuracy:±0.5% reading±0.2ms
Minimum Action Synchronization Resolution 0.1ms;Synchronization Measurement Accuracy:±0.5% reading±0.1ms
Testing Channels (8 channels) 6 channels for contact time measurement,1 channel for velocity,1 channel for coil current
Operational Power Supply Output Voltage: Adjustable DC 30V-300V,Current: 20A,Digitally programmable control,Continuous operation duration: 3s
High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set

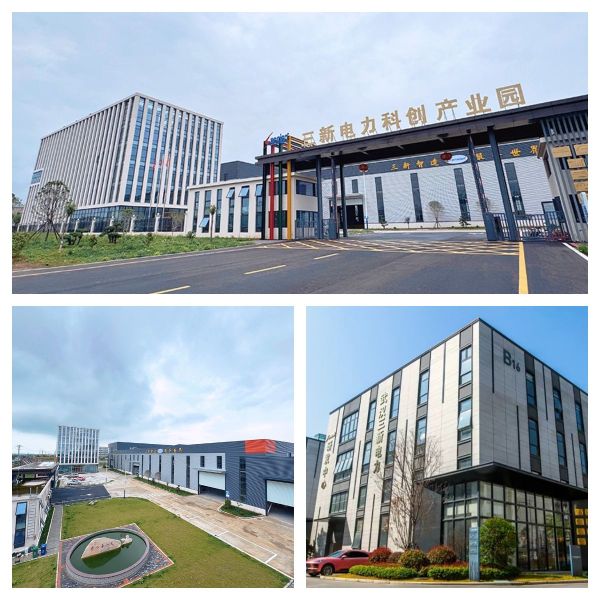

About Sansion

Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.

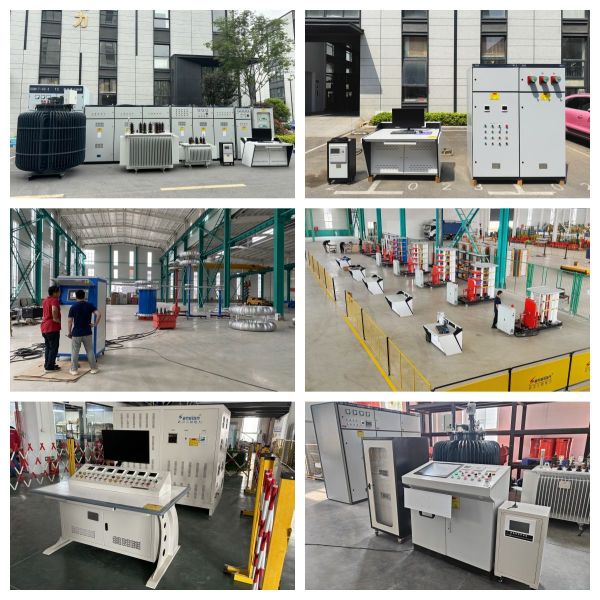

Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.



High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
Certifications


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set

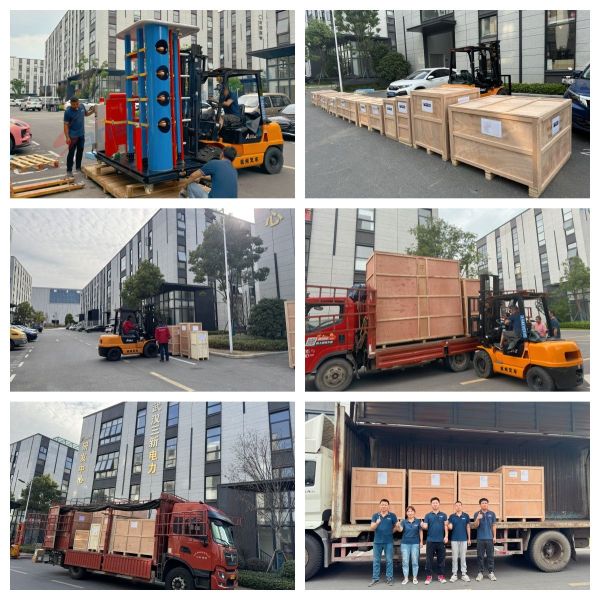

Packing & Delivery


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
Customer Visit


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
