High Voltage Switch Circuit Breaker Timing Test CB Analyzer
High Voltage Switch Circuit Breaker Timing Test CB Analyzer
High Voltage Switch Circuit Breaker Timing Test CB Analyzer
High Voltage Switch Circuit Breaker Timing Test CB Analyzer
High Voltage Switch Circuit Breaker Timing Test CB Analyzer
High Voltage Switch Circuit Breaker Timing Test CB Analyzer
Specifications
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
US $1,500-2,800 / S
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Packaging Details :
Plywood Case
Model NO. :
SXGKC
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
0-100Kg
Power Source :
AC220V
Time Test :
6 Channels (12 Channels for Option)
Data Storage :
100 Groups
Test Range :
0.1ms~999.99ms
Application Scenarios 1 :
Electrical Testing
Application Scenarios 2 :
Switchgear Testing
Application Scenarios 3 :
Power System Maintenanc
Transport Package :
Plywood Case
Specification :
ISO9001 SGS
Trademark :
Sansion
Origin :
China
HS Code :
9030820000
Production Capacity :
100 Units/Month
Description

High Voltage Switch Circuit Breaker Timing Test CB Analyzer

High Voltage Switch Circuit Breaker Timing Test CB Analyzer for comprehensive testing of dynamic characteristics in various circuit breaker types.
Product Overview
The SXGK Series Switch Circuit Breaker Timing Analyzer is designed for comprehensive testing and analysis of various circuit breakers. Its core functions ensure reliable assessment of dynamic performance and operational health.
Key Functions

1. Time measurement: 12 fracture intrinsic points, closing time, with the same period, phase with the same period.
2. Reclosing measurement: each fracture closing - minute, minute - closing, minute - closing - minute process time, one minute time,one closing time, two closing time, gold short time, no current value.
3. Bounce measurement: closing bounce time, bounce times, bounce waveform of each fracture, rebound amplitude of each fracture.
4. Velocity measurement: stiffness, maximum velocity, time-travel characteristic curve.
5. Current measurement: the current value of the closing coil and the closing coil, the current waveform
6. Action voltage measurement: digital adjustable circuit breaker action power supply, automatic completion of low voltage circuit breaker action test, measurement of circuit breaker action voltage value.

Performance Characteristics

  • Multi-Channel, Intelligent Detection

    • Equipped with 12 independent measurement channels that automatically identify and display the real-time status (open/close) of each breaker contact.

    • Provides clear wiring verification prompts, significantly reducing setup errors and enhancing test reliability.

  • Advanced Display & Intuitive Operation

    • Features a large, sunlight-readable grayscale touchscreen that eliminates glare for clear visibility in any environment.

    • User-friendly graphical menu interface (in English) with step-by-step operation guides ensures straightforward and efficient testing.

  • Comprehensive Testing Capabilities

    • Performs complete timing and travel analysis for vacuum, SF6, oil, and other high-voltage and medium-voltage circuit breakers.

    • Supports reclosing sequence tests (e.g., O-C, C-O, O-C-O) and minimum operating voltage determination for both opening and closing coils.

    • Specialized function for testing single-coil vacuum contactors.

  • Integrated Data Management & Analysis

    • Capable of storing up to 50 complete test reports directly on the device for record-keeping and comparison.

    • Powerful graphical analysis tools display synchronized waveforms and numerical results on one screen for in-depth diagnostics and reporting.

  • Built-in Safety & Protection

    • Incorporates automatic time-delay protection, which safely cuts off the coil supply voltage immediately after breaker operation to protect both the instrument and the equipment under test.

  • Flexible Operation Modes

    • Offers both fully automatic (motorized) and manual control testing modes to adapt to different site conditions and testing requirements.

Technical Parameters
Service Environment
  • Input Power: 220V±10% 50Hz±10%
  • Atmospheric Pressure: 86~106kpa
  • Temperature: -10~40ºC
  • Humidity: 80%RH
Safety Performance
  • Insulation Resistance: >2MΩ
  • Dielectric Strength: 1.5KV power supply chassis work frequency withstand voltage for 1 minute
Basic Parameters
Parameter Range Resolution Error
Time 20000.0ms 0.1ms 0.1% ± 2 word
Velocity 20.00m/s 0.01m/s ±0.1m/s±1 word (0-2m/s)
±0.2m/s±1 word (>2m/s)
Travel (Vacuum) 50.0mm 0.1mm 1%±1 word
Travel (SF6) 300.0mm 1mm -
Travel (Oil) 600.0mm - -
Current 10.00A 0.01A -
Output Power DC 0~300V 1V -
Physical Specifications
  • Dimensions: 360mm (L) × 280mm (W) × 300mm (H)
  • Weight: 9kg
Company Profile
High Voltage Switch Circuit Breaker Timing Test CB Analyzer

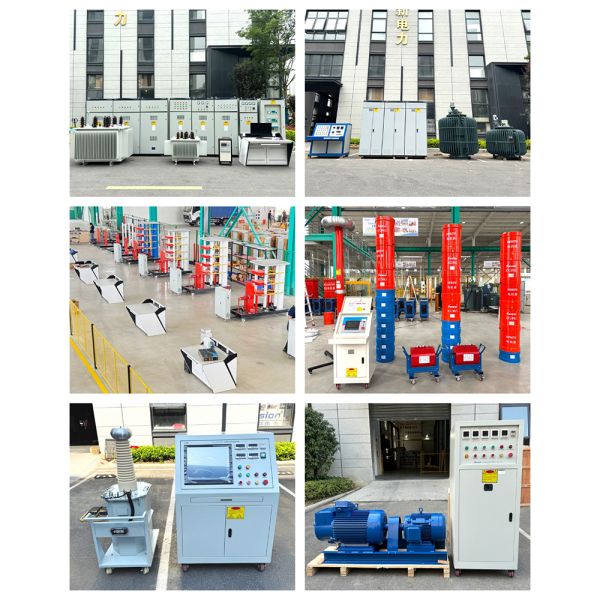

About Sansion
Sansion Power Electric was established in 2005 by technocrats with over 20 years of experience in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, aerospace, and other fields.
Sansion Power Electric includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and sales departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products conform to international IEC and Chinese state standards.
High Voltage Switch Circuit Breaker Timing Test CB Analyzer

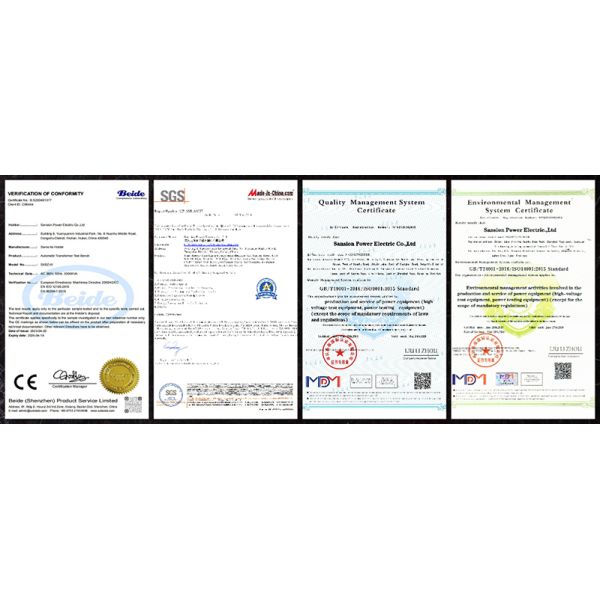

Certifications
High Voltage Switch Circuit Breaker Timing Test CB Analyzer
Packing & Delivery
High Voltage Switch Circuit Breaker Timing Test CB Analyzer

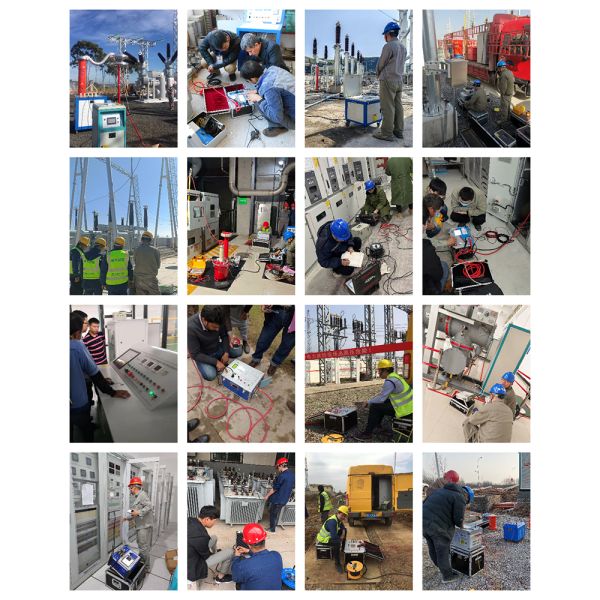

Construction Site
High Voltage Switch Circuit Breaker Timing Test CB Analyzer
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: We manufacture to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: We use imported components and conduct three quality inspections before shipment. Export products are uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: We offer free consulting service, one year warranty, and utilize various support methods including email communication, video calls, and technical door-to-door service to resolve after-sales problems promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
