Product Overview

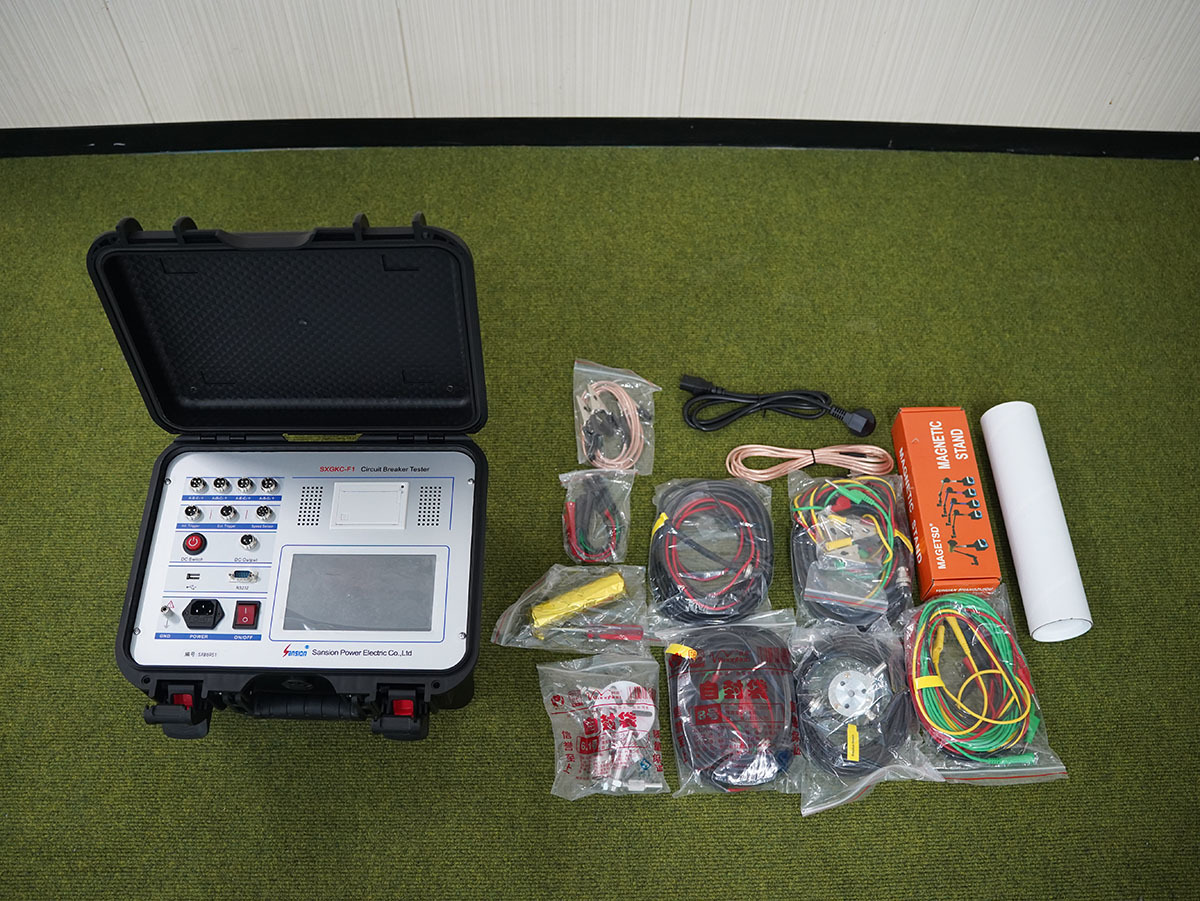

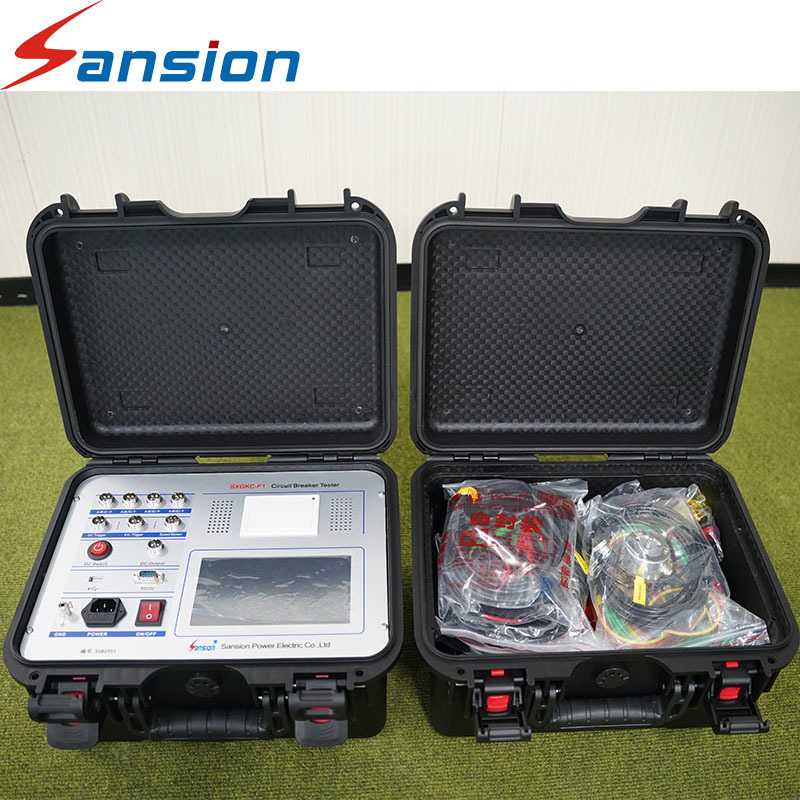

SXGKC-F1 Circuit Breaker Tester is dedicated for dynamic mechanical performance test of all high voltage circuit breakers, including vacuum switches, SF6 GIS, oil circuit breakers, single/double coil contactors. After one single operation of the switch, the device synchronously captures full test data & waveform: opening/closing time, 3-phase asynchronous value, bounce count & bounce duration, contact closing/opening speed, travel, coil current & resistance. It integrates adjustable high-power DC operation power, 3 trigger modes (internal/external/manual self-trigger), 7-inch sunlight-readable color touch screen, built-in thermal printer, USB data storage and RS232 PC connection. With advanced anti-interference design, it runs reliably under 500kV substation electromagnetic environment, widely adopted in power grid maintenance, switch factory factory-test, power institute lab testing.

Feature

• Wide Compatibility & Multi-channel Detection
• High Precision Measuring System
• Built-in High-power Dual-circuit DC Power Supply
• Three Trigger Modes for All Working Conditions
• Humanized 7-inch Color Touch Operation
• Complete Data Export & Report Function
• Strong Field Anti-interference & Portable Design
• Full Test Function Library for Professional Inspection

Specification

FAQ

Q1: Which types of circuit breakers can this tester test?

A: It supports all domestic & imported SF6 switch, GIS, vacuum breaker, oil breaker, single-coil vacuum contactor. Double-coil contactor can be tested by selecting vacuum switch mode.

Q2: Can it work under 500kV live substation environment?

A: Yes, independent anti-interference shielding circuit design, stable accurate test data without distortion under strong electromagnetic interference of live 500kV busbar substation.

Q3: Does the machine come with built-in operation DC power?

A: Yes, integrated DC6~270V adjustable power supply, max instantaneous 20A output, no extra external power needed for low voltage trip test and breaker operation.

Q4: Can test data be exported to computer for report editing?

A: Support U disk export via dual USB port; optional WIFI & RS232 communication to connect PC, analyze waveform and generate formal test reports.

Q5: Is English operation interface available?

A: 9-inch Windows touch screen, switch freely between Chinese and English system, all menu & test report bilingual display, friendly for overseas operators.
