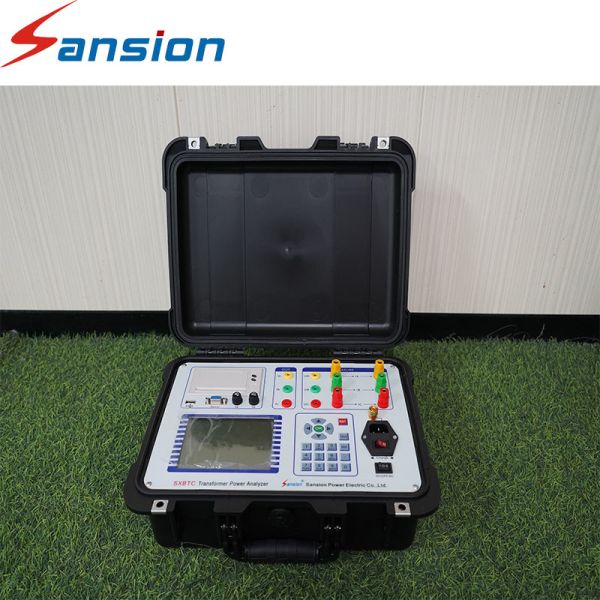

Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Specifications
MOQ :
1 Set
Price :
1000
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXBTC
Max Diameter of Workpiece :
<500mm
Mass Scope of Workpiece :
<900kg
Type :
Transformer Capacity Tester
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual Control
Weight :
0-100Kg
Power Source :
AC220V
Oil Cylinder Position :
Without
Test Function1 :
Capacity Test
Test Function2 :
Characteristic Test
Test Function3 :
No-Load Test / No-Load Loss Test
Test Function4 :
Load Test / Load Loss Test
Test Function5 :
Short-Circuit Impedance Test
Test Function6 :
Turns Ratio (TTR)
Test Function7 :
Winding Resistance Test
Test Function8 :
Excitation Current Test
Test Function9 :
Power Loss Measurement
Test Function10 :
Vector Group Verification
Test Function11 :
Polarity Test
Transport Package :
Plywood Case
Specification :
ISO9001 SGS
Trademark :
Sansion
Origin :
China
HS Code :
9030332000
Production Capacity :
100 Units/Month
Description
Product Description
Transformer Capacity Characteristic Tester Automatic Detection of Transformer Capacity
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
General Information:
The SXBTC Transformer Capacity Tester is specialized for 10kV distribution transformers, integrating core functions like capacity (30kVA～65000kVA), no-load/load loss, energy efficiency grade (supports S22/SH25 for oil-immersed, SCB18/SCBH19 for dry-type), single-phase performance, zero-sequence impedance measurement and harmonic analysis. Adopting advanced synchronous sampling and digital signal processing with multiple calibrations, it ensures high accuracy. Featuring dual power supply (lithium battery/220V AC), a user-friendly Chinese LCD interface, data storage (200 local records + USB), thermal printing, compact size (320mm×270mm×145mm) and light weight (5kg), it’s portable for on-site use.
Features:
√ Specialized for 10kV distribution transformers, measuring capacity (30kVA～65000kVA), no-load/load loss, energy efficiency grade, single-phase performance, zero-sequence impedance.
√ Supports energy efficiency grading for oil-immersed (S22, SH25) and dry-type (SCB18, SCBH19) transformers.
√ Equipped with harmonic analysis (measures harmonic content, total distortion rate; displays waveform/histogram).
√ Advanced 6-channel synchronous AC sampling + digital signal processing, with multiple calibrations for high accuracy.
√ Built-in lithium battery, outputs 3-phase sine wave inverter power (soft start/stop) for testing without external power.
√ Dual power supply: adaptive to lithium battery or 220V AC charger; intelligent charging management.
√ Large LCD with Chinese interface, displaying multiple parameters simultaneously; user-friendly operation.
√ Data storage: 200 local records (transferable to USB) + USB storage (Word format); thermal printer included.
√Supports external voltage/current transformers with adjustable transformation ratio.
√ Compact (320mm×270mm×145mm) and lightweight (5kg, excluding test leads), easy to carry.
* Standard: IEC270
Specifications:
Active:
Voltage measuring range: AC 50V～850V
Current measuring range: AC 0.5A～100A
Passive:
Voltage measuring range: AC 50V～850V
Current measuring range: AC 0.5A～100A
Precision:
Voltage:±0.2%
Current:±1%
Power:±10%
Working Temperature:
-10℃～40℃
Charging source:
30kVA～65000kVA
Company Profile
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Certifications
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Packing & Delivery
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Customer Visit
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
