Designed specifically for palletizing applications, the Palletizer Series features five unique robots with payload capacity from 80 kg to 500 kg to suit most production needs. With industry-leading work range and reliability, Kawasaki's high-speed palletizing robots help companies improve production line efficiency.

The RD80N is the most compact model, but possesses a wide range of movements. In addition, the RD80N stacks a maximum height of 2062.3 mm on 1100×1100 pallets.

RD80N has a turning radius of 397 mm, enabling it to cover a wide working area at high speed while occupying less space than a person. The MD500N features a unique new-type link mechanism for the upper and lower arms, allowing for a compact body without a counter weight.

Cubic-S, an optional function to monitor robot movements, can be used to limit the range of robot movements and make safety fence area smaller.

Kawasaki palletizing robots deliver the high-speed operation needed for modern distribution. When moving a vertical distance of 400mm and a horizontal distance of 2000 mm in a to-and-fro motion:

• RD80N: 900 cycles per hour with 80kg loads
• ZD130S: 1500 cycles per hour with 130kg loads
• MD500N: 600 cycles per hour with 500kg loads

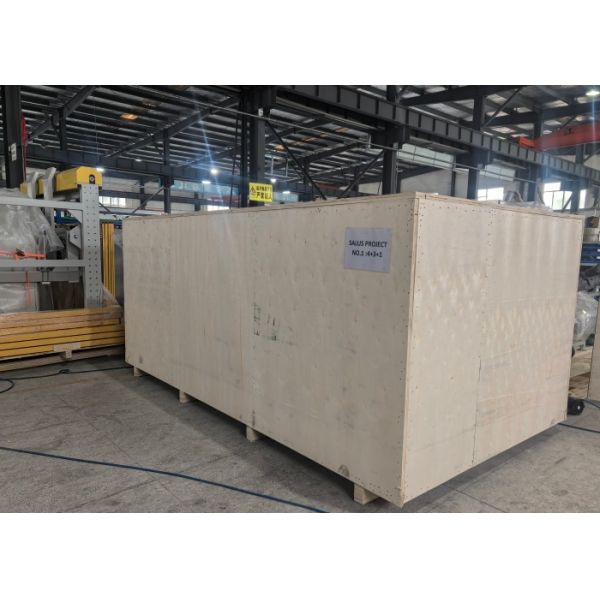

Machine film wrapped and packed in exported fumigation wooden box, then transported to departure port which customer required like Shanghai, Ningbo, Qingdao, Suzhou etc.

We provide accurate factory layout design according to customer's factory size, including comprehensive workshop design with electric power, water supply, gas power, material storage, final storages, and workers' restroom facilities.

Our commissioning service includes 1-2 engineers who will install and adjust the processing line to achieve normal production in the shortest time possible. Our engineers provide comprehensive training on operation, cleaning, maintenance, and repair until workers can independently operate the production line.

Commissioning service typically takes 10 days, and we provide a 1-year guarantee from the date of completion. Engineer's round-trip flight tickets, accommodation and daily salary (USD 60-100) are on client's account.

To receive detailed pricing for our machines, please provide the following information about your project requirements so we can recommend the most suitable machine model:

• Product type and packaging format (bags, cartons, or others)
• Required packages per hour
• Current workshop layout or available workshop dimensions
• Height of full pallet (excluding empty pallet thickness)
• Palletizing configuration (bags per layer, layers per pallet, bag placement pattern)
• Empty pallet dimensions (length, width, height)
