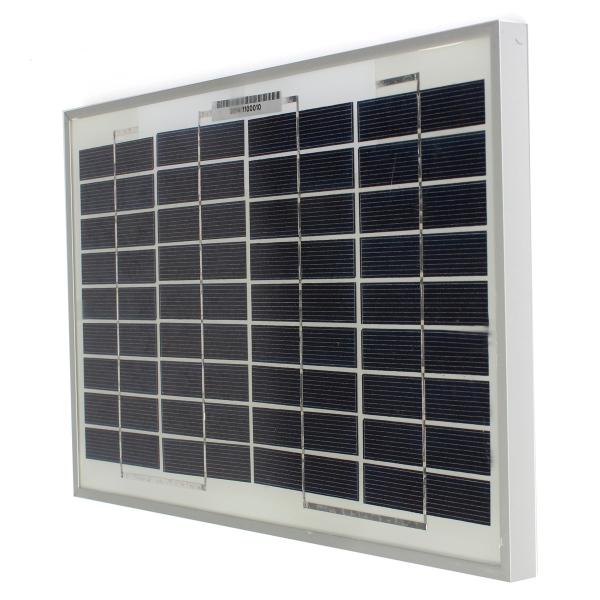

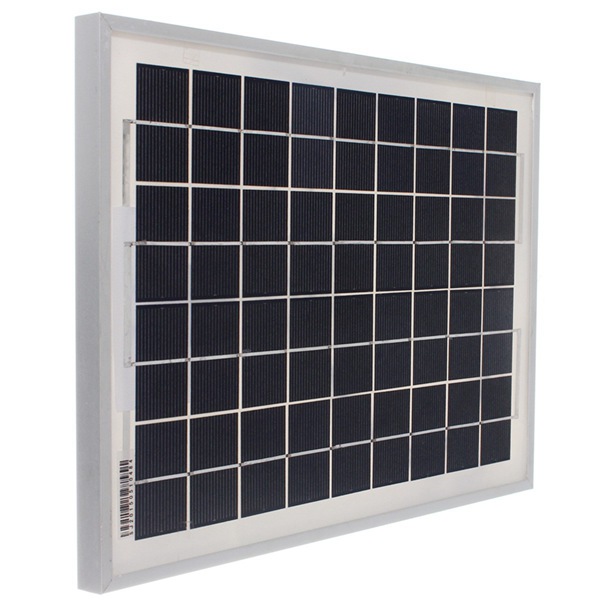

Photovoltaic Technologies 12V Solar Panel , Industrial Residential Solar Panels
Photovoltaic Technologies 12V Solar Panel , Industrial Residential Solar Panels
Photovoltaic Technologies 12V Solar Panel , Industrial Residential Solar Panels
Photovoltaic Technologies 12V Solar Panel , Industrial Residential Solar Panels
Photovoltaic Technologies 12V Solar Panel , Industrial Residential Solar Panels
Photovoltaic Technologies 12V Solar Panel , Industrial Residential Solar Panels
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-P10
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
10Watt
Voltage :
18V vmp
Current :
0.56A
Efficiency :
11.37 %
SIze :
345*255*18mm
Junction box :
MC4 Connector
Description

20Watt Solar Panel 12V Solar Panel for home system

Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.

Black Crystallines Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications
Product Description
Characteristics SN-P005 SN-P010 SN-P020 SN-P030 SN-P040
Maximum Power(Pmax) 5Wp 10Wp 20Wp 30Wp 40Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
Optimum Operating Current/Imp 0.27A 0.56A 1.11A 1.67A 2.22A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
Short Circuit Current /Isc 0.3A 0.66A 1.21A 1.87A 2.42A
Module Efficiency 10.32% 11.37% 12.33% 13.70% 14.80%
Weight 1Kg 1.7Kg 2.3Kg 2.8Kg 3.2Kg
Numbers of cells 36(2*18) 36(2*18) 36(2*18) 36(2*18) 36(3*12)
Cell dimension(mm) 78*10.4 156*10.4 156*22.3 156*31.2 156*39
Dimensions(mm) 255*190*18 345*255*18 470*345*25 635*345*25 530*510*25
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

Pictures

Photovoltaic Technologies 12V Solar Panel , Industrial Residential Solar PanelsPhotovoltaic Technologies 12V Solar Panel , Industrial Residential Solar Panels
