50W 12V Solar Panel Easy Cleaning , Roof Mounted Poly Crystalline Solar Panel
50W 12V Solar Panel Easy Cleaning , Roof Mounted Poly Crystalline Solar Panel
50W 12V Solar Panel Easy Cleaning , Roof Mounted Poly Crystalline Solar Panel
50W 12V Solar Panel Easy Cleaning , Roof Mounted Poly Crystalline Solar Panel
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-P50
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
50Watt
Voltage :
18V vmp
Current :
2.78A
Efficiency :
14.42%
SIze :
680*510*30mm
Junction box :
MC4 Connector
Description

50Watt Poly crystalline Solar Panel 12v Solar Panels Easy Cleaning

Product Description
20-80Watt Polycrystalline Solar Panel
Characteristics SN-P020 SN-P030 SN-P040 SN-P050 SN-P060 SN-P080
Maximum Power(Pmax) 20Wp 30Wp 40Wp 50Wp 60Wp 80Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V 18.0V
Optimum Operating Current/Imp 1.11A 1.67A 2.22A 2.78A 3.33A 4.44A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V 21.6V
Short Circuit Current /Isc 1.21A 1.87A 2.42A 2.98A 3.52A 4.64A
Module Efficiency 12.33% 13.70% 14.80% 14.42% 14.21% 15.61%
Weight 2.3Kg 2.8Kg 3.2Kg 4.0Kg 5.2Kg 6Kg
Numbers of cells 36(2*18) 36(2*18) 36(3*12) 36(3*12) 36(4*9) 36(4*9)
Cell dimension(mm) 156*22.3 156*31.2 156*39 156*52 156*62.4 156*78
Dimensions(mm) 470*345*25 635*345*25 530*510*25 680*510*30 670*630*30 765*670*30
Standard test condition
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

Black Crystallines Solar Panel Application

  • Solar power station
  • Rural electrification, Small home power systems
  • Power supply for traffic, security, gas industry
  • 12V and 24V battery charging systems
  • Other industrial and commercial applications

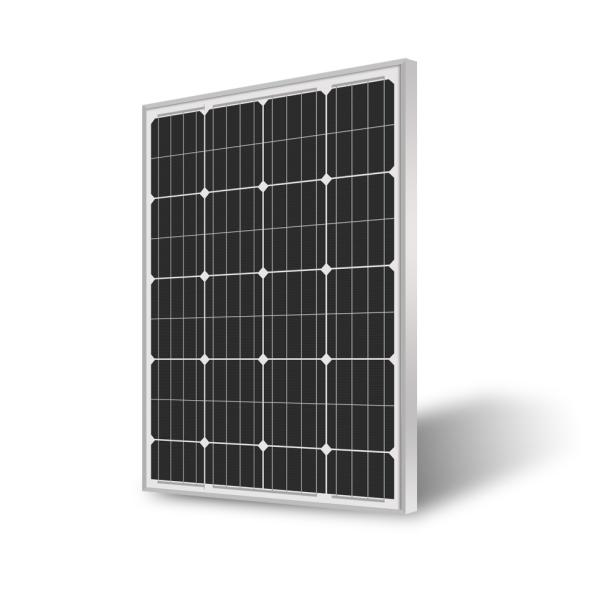

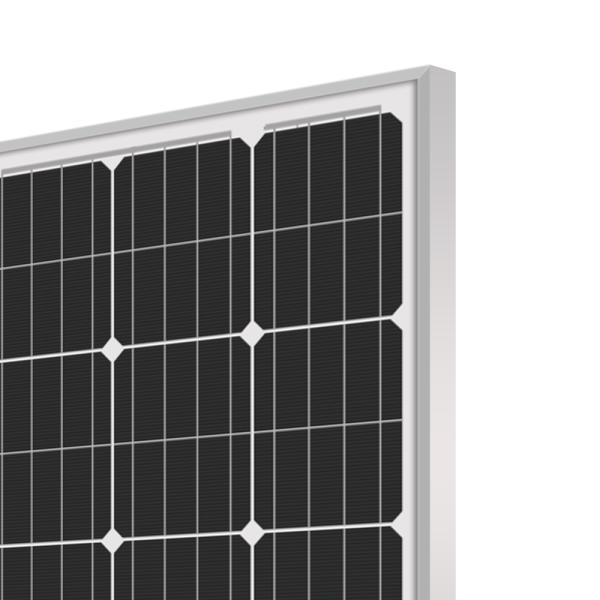

Pictures

50W 12V Solar Panel Easy Cleaning , Roof Mounted Poly Crystalline Solar Panel50W 12V Solar Panel Easy Cleaning , Roof Mounted Poly Crystalline Solar Panel
