Black Color 10W 12V Solar Panel , Folding Solar Panels For Home System
Black Color 10W 12V Solar Panel , Folding Solar Panels For Home System
Black Color 10W 12V Solar Panel , Folding Solar Panels For Home System
Black Color 10W 12V Solar Panel , Folding Solar Panels For Home System
Black Color 10W 12V Solar Panel , Folding Solar Panels For Home System
Black Color 10W 12V Solar Panel , Folding Solar Panels For Home System
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-M10
Certification :
CE, LVD, TUV, IEC, ROSH, SGS
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000 pcs per month
Delivery Time :
15 days
Packaging Details :
single box or 25 pieces per pallet
Max power :
10Watt
Voltage :
18V vmp
Current :
0.55A
Efficiency :
11.37%
SIze :
345*255*18mm
Junction box :
MC4 Connector
Description

10Watt Solar Panel 12V Solar Panel for home system

Product Description
Characteristics SN-M005 SN-M010 SN-M020 SN-M030 SN-M040
Maximum Power(Pmax) 5Wp 10Wp 20Wp 30Wp 40Wp
Optimum Operating Voltage/Vmp 18.0V 18.0V 18.0V 18.0V 18.0V
Optimum Operating Current/Imp 0.27A 0.56A 1.11A 1.67A 2.22A
Open Circuit Voltage /Voc 21.6V 21.6V 21.6V 21.6V 21.6V
Short Circuit Current /Isc 0.3A 0.66A 1.21A 1.87A 2.42A
Module Efficiency 10.32% 11.37% 12.33% 13.70% 14.80%
Weight 1Kg 1.7Kg 2.3Kg 2.8Kg 3.2Kg
Numbers of cells 36(2*18) 36(2*18) 36(2*18) 36(2*18) 36(3*12)
Cell dimension(mm) 78*10.4 156*10.4 156*22.3 156*31.2 156*39
Dimensions(mm) 255*190*18 345*255*18 470*345*25 635*345*25 530*510*25
Standard test condition Irradiance 1000W/m²,Module temperature 25℃, AM=1.5
Features

Aesthetic appearance with excellent efficiency based on innovative

photovoltaic technologies

Strong frame, passing mechanical load test of 5400Pa, instead of the normal

2400Pa,to withstand heavier snow load and higher wind-pressure

Unique frame design, high mechanical strength, and easy Installation.

Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions

Quality Control

  • Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
  • Manufacturing facility certifed to ISO9001 Quality Management System standards.
  • Module packaging optimized to protect product during transportation and minimize on-site waste.
Mechanical Characteristics
Power Tolerance ±3 %
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V DC
Operating Module Temperature -40°C to +80°C
Frame Material Clear Anodized aluminum Frame
Thickness of glass 3.2mm tempered glass
Frame Anodized aluminum alloy
Laminating material EVA
Backsheet material TPT
Junction box Ip65

Temperature Characteristics
Norminal Operating Cell Temperature(NOCT) 45±2℃
Temperature Coefficient of Pmax -0.45%/2℃
Temperature Coefficient of Voc -0.34%/2℃
Temperature Coefficient of Isc -0.050%/2℃

Pictures

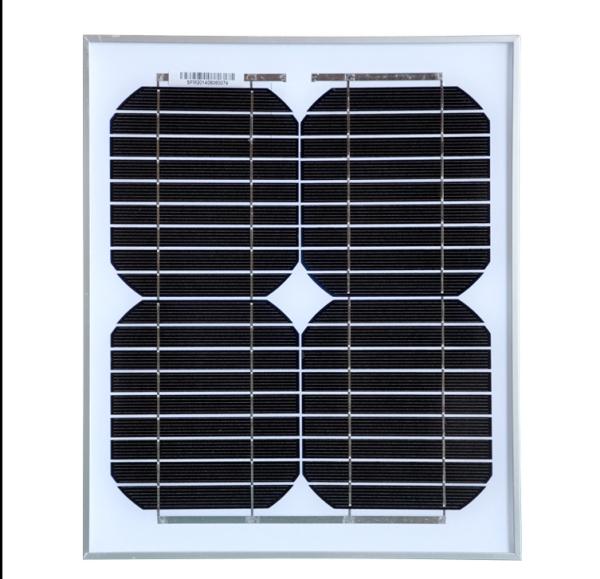

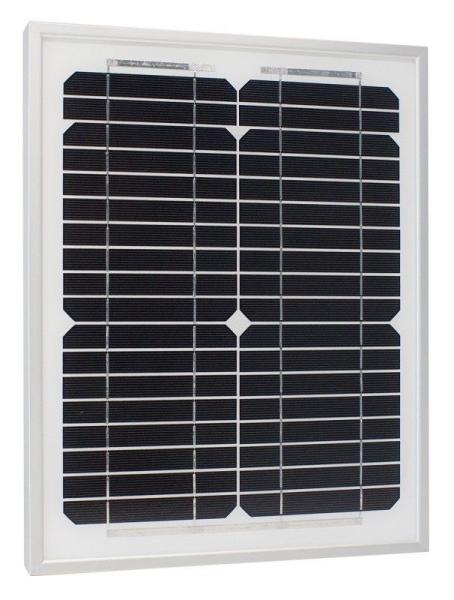

Black Color 10W 12V Solar Panel , Folding Solar Panels For Home System
