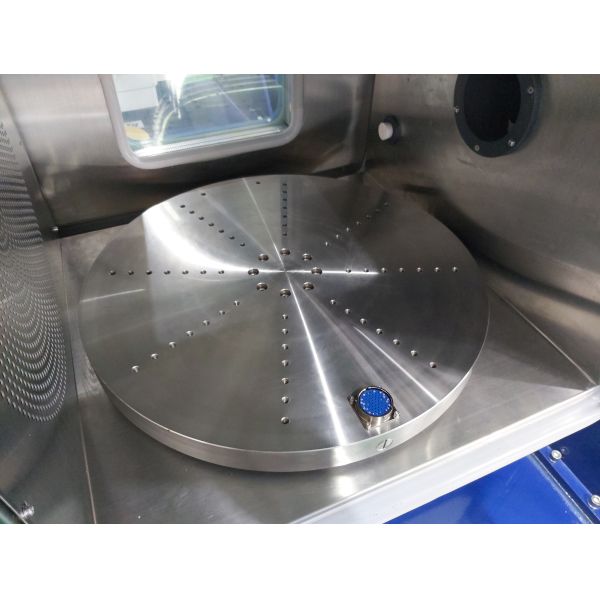

2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
2DT400WK Dual-Axis Temperature Control Turntable for IMU Calibration with 30Kg Load Weight and Customizable Slip Ring
Specifications
Brand Name :
RUYA
Model Number :
2DT400WK
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets，4 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
30Kg
Table Diameter :
Ф400mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Positioning Repeatability :
±2″
User Slip Ring :
Customizable
Temperature Range :
-55°C~＋100°C
Maximum Heating And Cooling Rate :
≥3°C/min
Description
2DT400WK 2 Axis Temperature Control Fiber Optic Gyroscopes IMU Calibration Turntable
Product Overview

The 2DT400WK dual-axis temperature control turntable is a specialized precision equipment developed for research, testing, production debugging, and maintenance calibration of fiber optic gyroscopes and IMUs. This system is primarily used for rate and position function testing, featuring stable performance, reliable operation, simple operation, and cost-effectiveness. The equipment can also be utilized for experimental testing of other inertial components and devices.

Key Features
  • Dual-axis precision calibration system
  • Integrated temperature control from -55°C to +100°C
  • High accuracy positioning and rate control
  • Customizable slip ring options
  • Robust construction supporting 30Kg load capacity
  • Versatile applications for various inertial components
Technical Specifications
Parameter Specification
Load Weight 30Kg
Table Diameter Ф400mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position Outer frame: ±3″
Inner frame: ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s ~ 800°/s
Outer frame: 0.01°/s ~ 200°/s
Rate Accuracy ω ≤ 1°/s: 2×10⁻³ (1° average)
1°/s ≤ ω < 10°/s: 2×10⁻⁴ (10° average)
ω ≥ 10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥400°/s²
Outer frame: ≥50°/s²
User Slip Ring Customizable
Temperature Range -55°C ~ +100°C
Temperature Error ±1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2°C
Maximum Heating And Cooling Rate ≥3°C/min
Dimensions Inside The Box 450mm × 450mm × 450mm
