3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
Specifications
Brand Name :
RUYA
Model Number :
3DT550WK
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets，4 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
40Kg
Table Diameter :
Ф550mm
Rotary Accuracy :
±3″
Perpendicularity :
±3″
Positioning Error :
±2″
Positioning Repeatability :
±2″
Temperature Range :
-50°C~＋120°C
Dimensions Inside The Box :
600mm x 600mmx 620mm
Description
3DT550WK 3 Axis Inertial Navigation Test Turntable With Thermal Chamber
Product Overview

The 3FDT550WK three-axis temperature control turntable is a specialized testing equipment that integrates temperature control with precise rotation functions. This system is primarily designed for comprehensive performance testing of materials and products under extreme high or low temperature environmental conditions.

Technical Specifications
Specification Value
Load Weight 40Kg
Table Diameter Ф550mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Three-Axis ±3″
Perpendicularity Of Three-Axis ±3″
Intersection Of Three-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s~500°/s
Middle frame: 0.01°/s~200°/s
Outer frame: 0.01°/s~100°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥100°/s²
Middle frame: ≥100°/s²
Outer frame: ≥100°/s²
User Slip Ring Customizable
Temperature Range -50°C~＋120°C
Temperature Error ±1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2°C
Maximum Heating And Cooling Rate ≥3°C/min
Dimensions Inside The Box 600mm x 600mm x 620mm

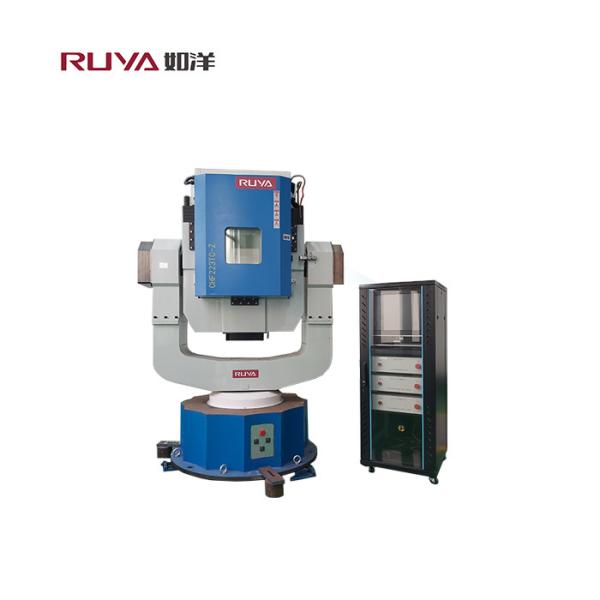

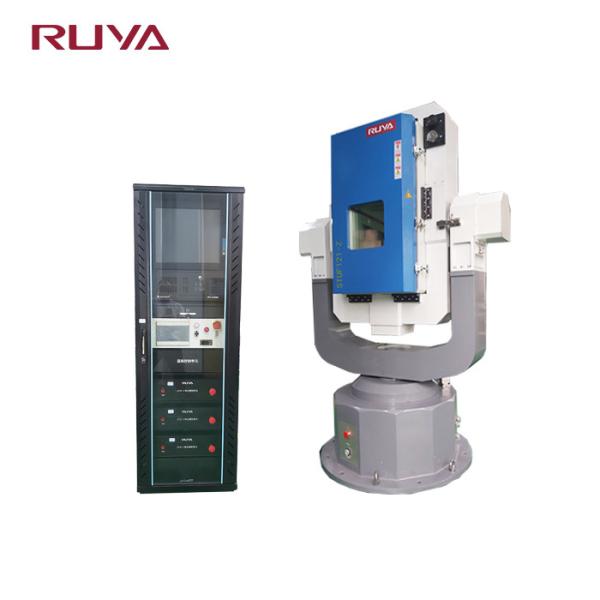

Product Images
3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight 3DT550WK 3-Axis Inertial Navigation Test Turntable With Thermal Chamber 40Kg Load Weight
