Specifications
Brand Name :
RUYA
Model Number :
2DT400WK
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets，4 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
30Kg
Table Diameter :
Ф400mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Positioning Repeatability :
±2″
User Slip Ring :
Customizable
Temperature Range :
-55°C~＋100°C
Maximum Heating And Cooling Rate :
≥3°C/min
Description

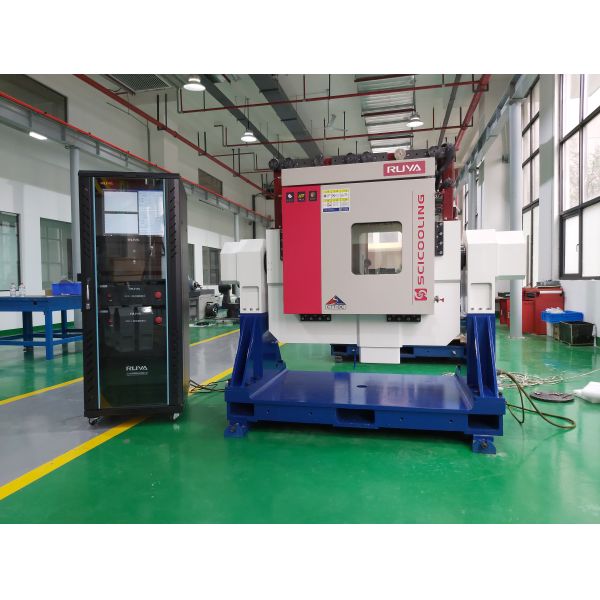

Dual-axis Temperature-controlled Turntable IMU Calibration Turntable
Product Overview

The dual-axis temperature-controlled turntable is a high-precision device designed for the development, production, and calibration of fiber optic gyroscopes and IMUs. It features excellent rate and position testing capabilities with stable performance, reliable operation, and user-friendly controls. Engineered for economic efficiency, this turntable significantly reduces acquisition costs while maintaining superior performance standards.

This versatile system can be expanded to meet testing requirements for various inertial components and devices, making it an essential precision tool for both laboratory research and production line applications. Whether for R&D verification or batch debugging, the dual-axis temperature-controlled turntable delivers accurate and efficient solutions to advance inertial technology development.

Technical Specifications
Specification Value
Load Weight 30Kg
Table Diameter Ф400mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position outer frame: ±3″
inner frame: ±2″
Positioning Repeatability Of Angular Position ±2″
Rate Range inner frame: 0.01°/s~800°/s
outer frame: 0.01°/s~200°/s
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration inner frame: ≥400°/s²
outer frame: ≥50°/s²
User Slip Ring Customizable
Temperature Range -55°C~＋100°C
Temperature Error ±1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2°C
Maximum Heating And Cooling Rate ≥3°C/min
Dimensions Inside The Box 450mm x 450mm x 450mm
