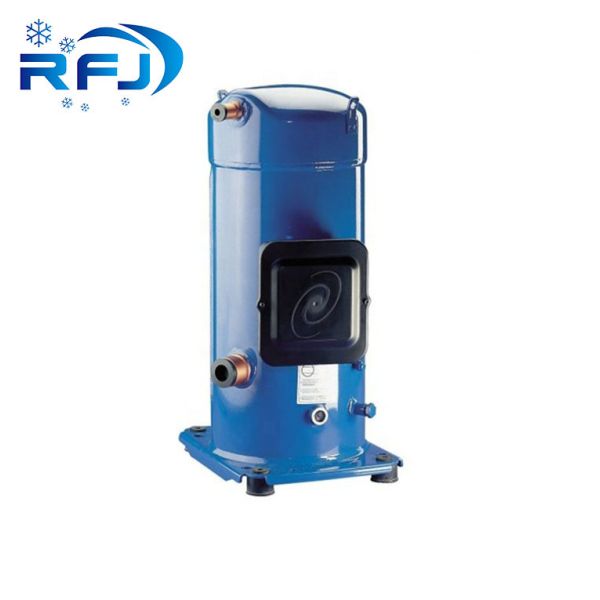

SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning
SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning
SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning
SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning
Specifications
Brand Name :
Danfoss
Model Number :
SM090S4VC
Certification :
CE UL
Place of Origin :
China
MOQ :
1PCS
Price :
discussed
Payment Terms :
T/T, Western Union
Supply Ability :
500PCS
Delivery Time :
1-5 Days
Packaging Details :
wooden packaging
Color :
Blue
Apllication :
refrigeration
Type :
refrigeration compressor
Product name :
SM090-9VM
warranty :
1 year
Horse power :
7.5HP
Net weight :
65KG
Voltage :
380/3/60
Refrigerant :
R22
Product name: :
Scroll compressor
Segment usage :
Air conditioning
Description
SM090-4VM Refrigeration Scroll Compressor 7.5HP SM090S4VC For Air Conditioning
Product Overview

The SM090-9VM is a high-performance scroll compressor designed for air conditioning applications, featuring 7.5HP capacity and robust construction for reliable operation.

Gross Weight 70.53 kg
Net Weight 65 kg
EAN 5702424053406
Certifications & Standards
Approval Standard CE, UL
Brand Technique Scroll Compressor
IP Protection Class IP54 (with cable gland)
Technical Specifications
Compressor Power Supply 380/3/60 V/Ph/Hz
Nominal Cooling Capacity 90.1 kBtu/h (26.4 kW)
Capacity Control Fixed Speed
Refrigerant R22
RLA 15.7 A
LRA 113 A
Rotational Speed at 60Hz 3500 rpm
Swept Volume 120.5 cm³
Oil Charge 3.25 L
Oil Type Mineral (160P)
Physical Dimensions & Connections
Total Height 508 mm
Diameter 254 mm
Suction Connection 1 1/8 in
Discharge Connection 3/4 in
Connection Type Brazed
Operating Parameters
High Side Max Pressure 30.2 bar
Low Side Max Pressure 25 bar
High Side Temperature Range -35°C to 150°C
Low Side Temperature Range -35°C to 63°C
Maximum Starts per Hour 12
Included Components
Shipped Instructions Installation Instructions
Shipped Mounting Mounting Kit with Grommets, Bolts, Nuts, Sleeves and Washers
Shipped Oil Initial Oil Charge
