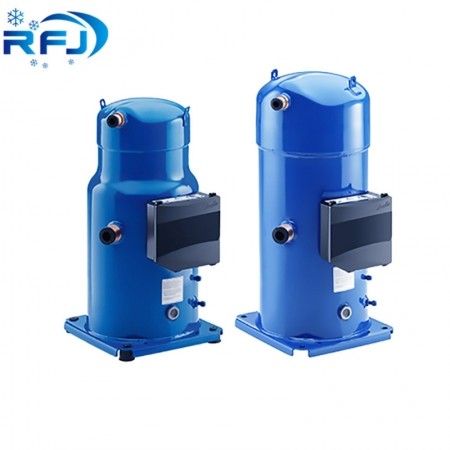

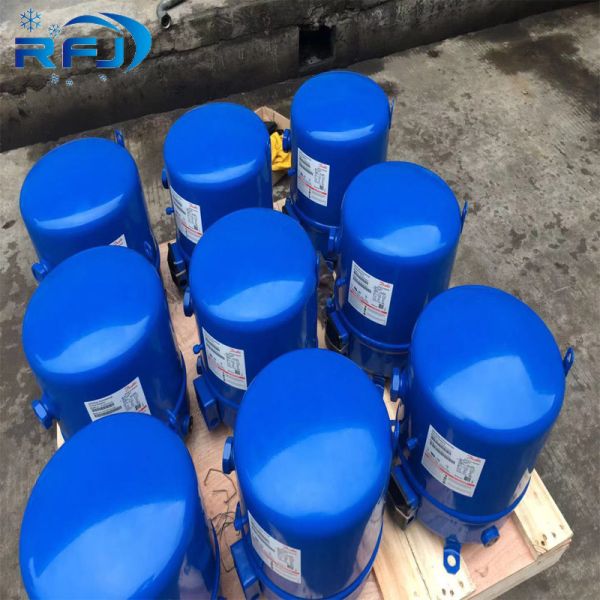

7HP SM084S4VC Refrigeration Scroll Compressor SM084-4VM R22 Refrigerant Fixed Speed
7HP SM084S4VC Refrigeration Scroll Compressor SM084-4VM R22 Refrigerant Fixed Speed
7HP SM084S4VC Refrigeration Scroll Compressor SM084-4VM R22 Refrigerant Fixed Speed
7HP SM084S4VC Refrigeration Scroll Compressor SM084-4VM R22 Refrigerant Fixed Speed
Specifications
Brand Name :
Danfoss
Model Number :
SM084S4VC
Certification :
CE UL
Place of Origin :
China
MOQ :
1PCS
Price :
discussed
Supply Ability :
500PCS
Delivery Time :
1-5 Days
Packaging Details :
wooden packaging
Payment Terms :
T/T, Western Union
Color :
Blue
Apllication :
refrigeration
Type :
refrigeration compressor
Product name :
SM084-9VM
warranty :
1 year
Horse power :
7HP
Net weight :
64KG
Voltage :
380/3/60
Refrigerant :
R22
Product name: :
Scroll compressor
Segment usage :
Air conditioning
Description
7HP SM084S4VC Refrigeration Scroll Compressor SM084-4VM R22 Refrigerant Fixed Speed
Product Overview
Gross Weight 69.5 kg
Net Weight 64 kg
EAN 5702424540616
Technical Specifications
Approval Standard CE, UL
Brand Technique Scroll compressor
Capacity Control Fixed speed
Compressor Power Supply 380/3/60 V/Ph/Hz
Connection Type Brazed
Refrigerant R22
Nominal Cooling Capacity 24.6 kW (83.96 kBtu/h)
RLA 14.3 A
LRA 100 A
Oil Type Mineral
Oil Charge 3.25 L
IP Protection Class IP54 (with cable gland)
Physical Dimensions & Connections
Total Height 508 mm
Diameter 254 mm
Suction Connection Size 1 1/8 in
Discharge Connection Size 3/4 in
Suction Connection Height 142 mm
Discharge Connection Height 465 mm
Operating Parameters
High Side Max Pressure 30.2 bar
Low Side Max Pressure 25 bar
High Side Temperature Range -35°C to 150°C
Low Side Temperature Range -35°C to 63°C
Rotational Speed at 60Hz 3500 rpm
Maximum Starts per Hour 12
Product Images
